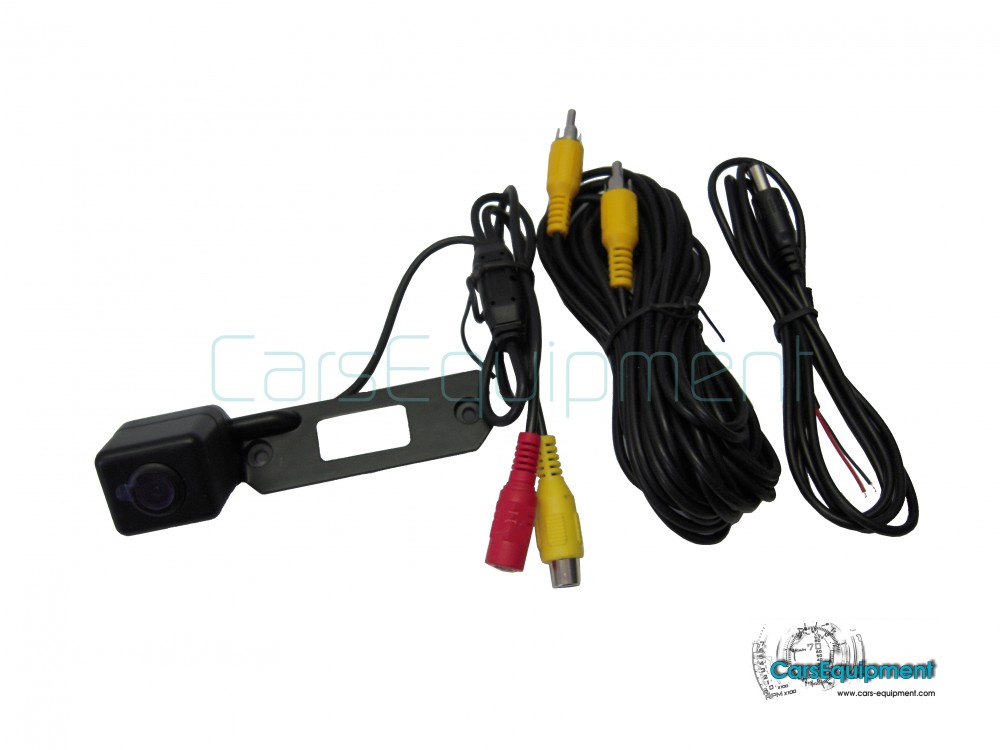

Weight: 0,3kg
Size: 73mm/23mm
Specification
Image Sensors |
1/3" Color CCD |
TV System |
NTSC/PAL(PAL defalt) |
Effective Pixels |
728X582/728x512 |
Sensing Area (mm) |
3.3 x 2.6 |
Resolution (TV Lines) |
480 |
Minimum illumination |
|
Horizontal Sync.Frequency |
15.625 KHZ |
Vertical Sync.Frequency |
50 HZ |
Video Output |
75 Ohm |
Gamma Consumption |
0.45 |
AGC |
Auto |
BLC |
Auto |
Night Vision |
Yes |
IP Rating |
IP66 |
S/N ratio |
Better than 48dB |
Lens |
F=1.6 |
Lens Angle (Deg.) |
170 |
Current Consumption (mA) |
300 |
Power Supply (DC V) |
12 |
Operating Temperature (Deg.C) |
-20~+75(RH95% Max.) |
Storage Temperature (Deg.C) |
-40~+85(RH95% Max.) |
How to install
o Take out your stock license plate light at the back of your car.
o Fix the camera to where the stock license plate light was.
o Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
o Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
o Connect the video cable of the camera to the extension cord.
o Connect the extension cord to your car monitor.
o You will see the images when your car is in reverse shift.
