Set for the retrofit of an original rear view camera for Audi A3 8P
Suitable for vehicles from model year 2010
Not suitable for vehicles with factory fitted TV
Wide-angle view of the rear area in the navigation system plus with MMI operating logic with an integrated camera
Substantially simplified orientation by auxiliary lines and fields, which are inserted into the video image, which change according to the steering angle
Two Parkmodi available
Park mode 1 (cross-parking): Useful for parking them in a direction transverse to the driving direction located parking space or driving into a longer driveway backwards
Park mode 2 (longitudinal parking): Useful for parking along the direction of travel along a curb
Scope of delivery:

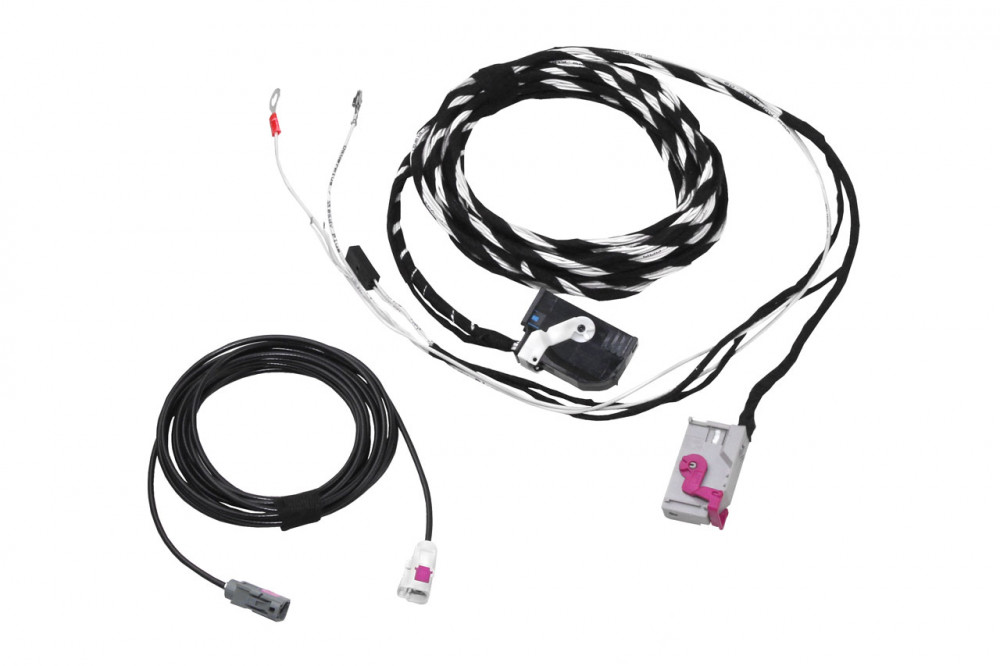

1x cable set
Note:
Automatic activation of the display screen when inserting the reverse gear or by operation of the parking sensors - key
This set is basically suitable for vehicles equipped with the navigation system plus with MMI operating logic (6.5 inch color screen)
The interface is to be used by the Audi R8 and can not calibrate the A3 8P, therefore, there is inaccuracy in the presentation of the guides
for complete retrofitting additional parts are required. In the following you will find a list of required parts, which should serve as a reference.We do not guarantee the accuracy or completeness. Please note that the specified control part comes from the Audi R8 and so the dynamic auxiliary lines do not fit 100% with the A3 8P:
