Complete kit Side Assist for Audi A5 F5 PR-Number: Right hand drive, L0R

• Complete kit to retrofit the original Audi side assist for Audi A5 F5
• Intelligent technique for monitoring the traffic behind and beside the vehicle
• Warning of approaching vehicles or vehicles which are floating with the traffic
• The installed radar sensors (left and right site in the rear bumper) monitors the rear area and the area beside the vehicle from a speed of 30 km/h
• The system measures the distance and the different speed between you and the other vehicles

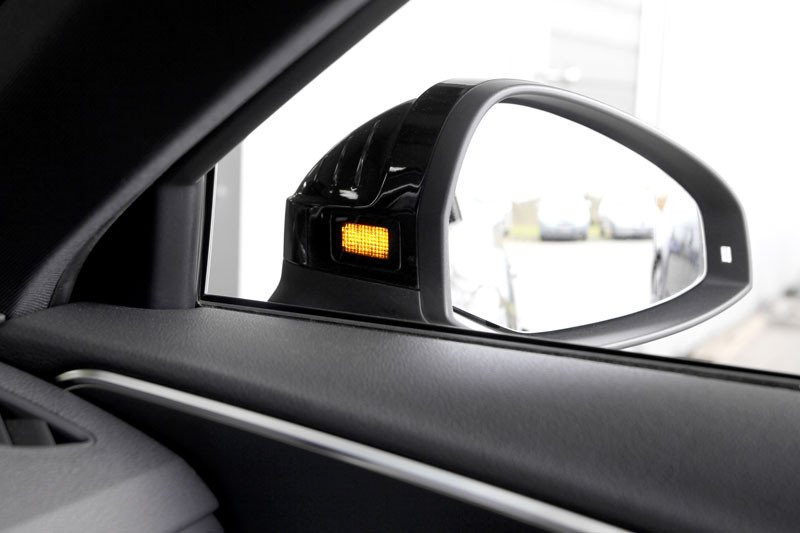

• Indicators in both exterior mirrors alert about critical situations
• Suitable for the following vehicles:
• Audi A5
• Audi A5 Sportback
• Audi A5 Cabrio

Selectable options:

• Left-hand-drive (PR. No.: L0L)
• Right-hand-drive (PR. No.: L0R)

Scope of delivery:

• Wiring set
• Radar sensors
• Indicators for exterior mirrors
• Mirror caps

• Codier Dongle

Note:

• only suitable for vehicles with painted mirror caps (PR-No.: 6FA or 6FJ)
• After installation you need to code the vehicle. Please get in contact with your local Audi dealer or workshop

• The delivered hardware partly comes from test vehicles and went through a comprehensive functional test. The software is up to date
• Compatibility of the door control units must be checked, there are 3 different hardware versions of the door control units (Lowline "3" - Midline "5" - Highline "7") required for "Side Assist" is Highline
• To determine if you have the right door control units, the part number must be read out by diagnostics

• Example part number: XX0 959? 9X + index letter such as A, B, C

• Here is the location of? "Question mark" crucial
• ? = 3 = not compatible - door control unit must be replaced
• ? = 5 = not compatible - door control unit must be replaced
• ? = 7 = compatible for retrofitting "Side Assist"
• eg 4M0959793X / 4M0959792X are suitable, 4M0959593X / 4M0959592X are to be replaced
• In case the ex Factory installed control units are not suitable, you need to use the control units in our "Accessories" area. This ensures that the control unit has correct software and data sets
• Currently, retrofitting vehicles from model year 2024 is not possible
