Complete kit side assist for Audi A6 4A PR number: All PR-Numbers, Vehicle: Allroad, Version: Left-hand-drive

• Complete set for retrofitting the Audi side assistance (Audi side assist) for the Audi A6 4A
• intelligent technology for monitoring the blind spot and the traffic behind the vehicle
• Warning of approaching or floating vehicles in the detection area
• By radar sensors right and left in the rear bumper monitoring of the area behind or next to the vehicle from a speed of 30 km/h
• The system measures the distance and the speed difference to other vehicles

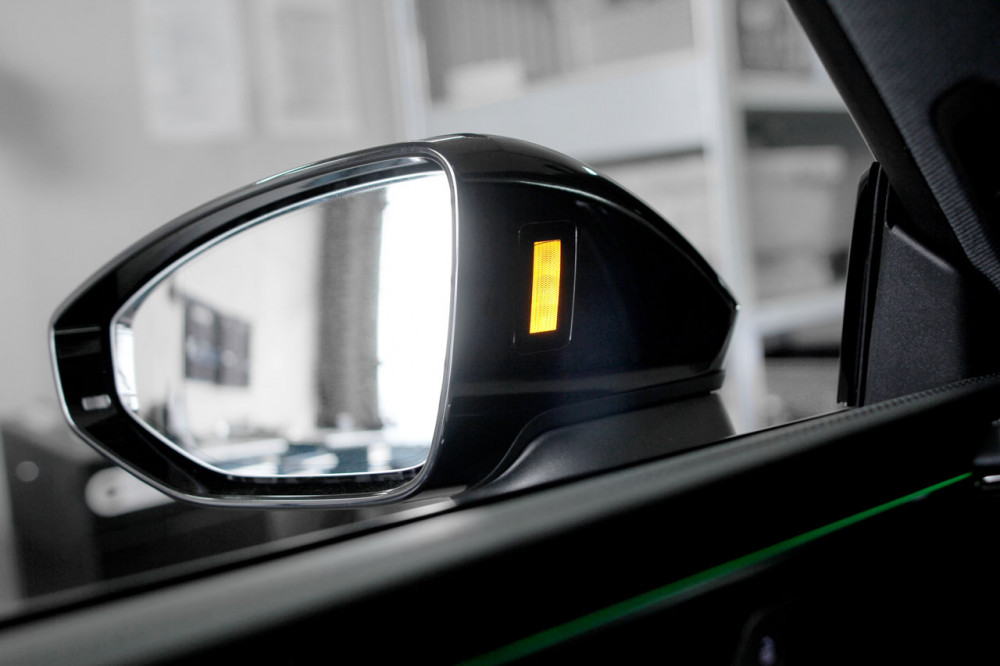

• Indicators in both exterior mirrors warn of critical situations
• the exit warning warns when exiting in critically classified situations with flashing of the indications on the affected side and at the same time the door opening is briefly delayed

Auswählbare Option

• Limousine; PR-No.: 2K1, 2K5, 2K6; Left-hand-drive car (PR-No.: L0L)

• Limousine; PR-No.: 2K3, 2K7; Left-hand-drive car (PR-No.: L0L)
• Avant; PR-No.: 2K1, 2K5, 2K6; Left-hand-drive car (PR-No.: L0L)
• Avant; PR-No.: 2K3, 2K7; Left-hand-drive car (PR-No.: L0L), also select  for RS6
• Allroad; All PR-No; Left-hand-drive car (PR-No.: L0L)
• Limousine; PR-No.: 2K1, 2K5, 2K6; Right-hand-drive (PR-No.: L0R)
• Limousine; PR-No.: 2K3, 2K7; Right-hand-drive (PR-No.: L0R)

• Avant; PR-No.: 2K1, 2K5, 2K6; Right-hand-drive (PR-No.: L0R)
• Avant; PR-No.: 2K3, 2K7; Right-hand-drive (PR-No.: L0R), also select for RS6
• Allroad; Allo PR-No; Right-hand-drive (PR-No.: L0R)

Scope of Delivery:

• cable set
• radar sensors
• exterior mirror indicators
• Caps for exterior mirrors
• coding dongle

Note:

• Only suitable for vehicles with acc (PR-No.: 8T5 or 8T8)

• Component protection of the control parts must be lifted at the Audi dealer

• The caps of the mirrors are delivered primed, painting required
• For mirror caps which are not painted (for example alu) they have to be ordered by yourself
• The hardware can partly come from test vehicles and went through a comprehensive function test. The software is up to date
• Compatibility of the door control units must be checked, there are 3 different hardware versions of the door control units (Lowline "3" - Midline "5" - Highline "7") required for "Side Assist" is Highline
• To determine if you have the right door control units, the part number must be read out by diagnostics

• Example part number: XX0 959? 9X + index letter such as A, B, C

• Here is the location of? "Question mark" crucial
• ? = 3 = not compatible - door control unit must be replaced
• ? = 5 = not compatible - door control unit must be replaced
• ? = 7 = compatible for retrofitting "Side Assist"
• eg 4M0959793X / 4M0959792X are suitable, 4M0959593X / 4M0959592X are to be replaced
• In case the ex Factory installed control units are not suitable, you need to use the control units in our "Accessories" area. This ensures that the control unit has correct software and data sets
• Currently, retrofitting vehicles from model year 2024 is not possible
