AMPIRE Smartphone Integration for Audi A8 4H MMI3G+, MIB2

Plug & Play Smartphone Interface with full integration into the car's multimedia system. Check the compatibility list to see if we have a solution available for your car.

The image display is shown on the entire factory monitor, and the sound is fed into the audio AUX input of your factory multimedia system. Before ordering, make sure your factory multimedia system has an audio AUX input or can be retrofitted.

Our smartphone interface is compatible with Apple CarPlay® and Android Auto, providing an intelligent and safer way to use your smartphone in the car. Everything is controlled through the vehicle's own buttons and operating systems. Of course, you can also use Siri® and OK Google® voice control with the included microphone. Anything you want to do with your smartphone while driving can be done directly on the car's display with Apple CarPlay® and Android Auto. You can easily get directions, send and receive messages, listen to your favorite music on Spotify, or tune in to your favorite radio station using a radio app - all while staying focused on the road.
Simply connect your smartphone to the USB port in our system and you're ready to go.

For even more convenience, you can wirelessly connect your Apple iPhone via WiFi. Wireless Apple CarPlay® is possible from the Apple iPhone 5 onwards.


FEATURES

• Interface for retrofitting Apple CarPlay
• Control via OEM buttons/touchpad of the vehicle
• Wireless Apple CarPlay via included WIFI antenna from iPhone 5
• Wired Apple CarPlay via USB (turn off WLAN on iPhone)
• Wired Android Auto via USB
• Android Mirrorlink function (mirroring the smartphone display)
• USB input for multimedia playback (e.g., USB stick)
• Video playback on Apple iOS only via a USB cable
• Up to 1080p HD resolution for multimedia playback
• Supports RMVB, MOV, MKV, MP4, AVI, RM
• Pairing via Bluetooth only necessary during initial installation
• Integrated audio DSP with equalizer for audio output
• Analog audio output with 3-volt output voltage for audio playback (Audio AUX)
• Supports vehicles with left-hand and right-hand drive
• Software update possible via a micro-USB input (adapter included)

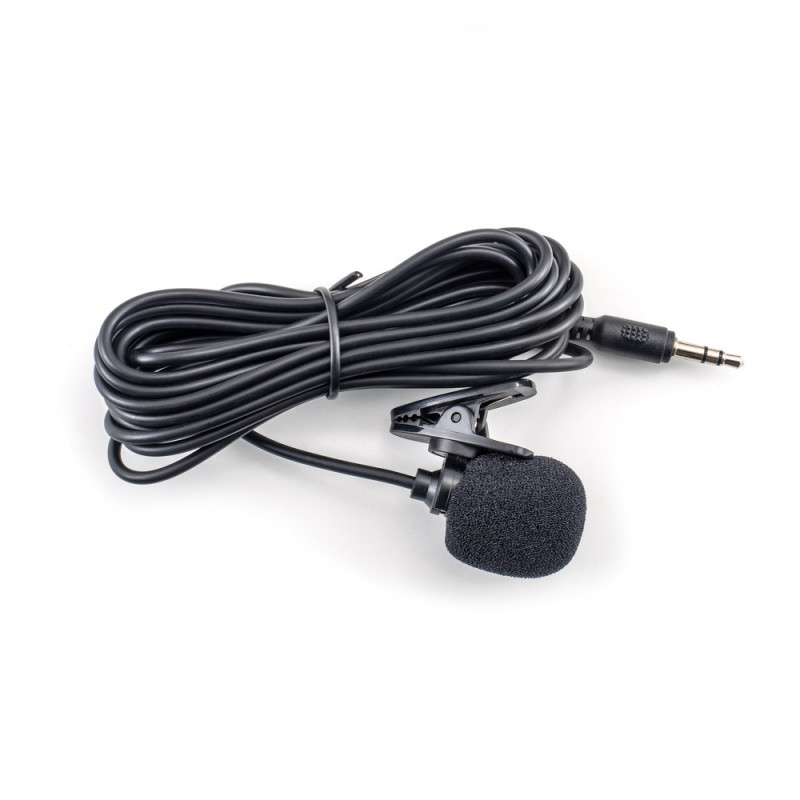

• "Apple Siri" and "OK Google" voice control via included microphone (no telephony)

APPS

• GPS navigation with Google Maps, Waze, Apple Maps, and more
• Music playback with Spotify, Apple Music, Amazon Prime, and more

CAMERA FUNCTIONS

• Input for front camera (composite video)
• Input for rearview camera (composite video)
• Support for parking distance control (PDC)
• Support for moving guide lines
• Supports 360° camera systems
• 12-volt output for powering the front camera
• 12-volt output for powering the rear camera

ACCESSORIES

• We include a MICRO-USB to USB adapter for any software updates needed for the interface.

VEHICLE COMPATIBILITY

• Before purchasing and installing, check if the product is compatible with your car type, year, and entertainment system. Your entertainment system must have an audio AUX input for audio playback. Incompatibility can lead to damage.
• Suitable for Audi A8 4H with OEM radio: AUDI MMI system, 8" monitor, 4-pin LVDS connector, MIB2 system with 8" monitor, 01/2010 - 12/2017

SMARTPHONE COMPATIBILITY

• Before purchasing and installing, check if the product is compatible with your smartphone.
• Apple iOS: iPhone 5 and newer
• Google Android: Android 5.0 (Lollipop) or better Android 6.0 (Marshmallow) and newer.

TECHNICAL DATA

• USB port charging current: 1100mA
• Dimensions of interface: 166x89x27mm

APPROVALS

• E-marking number E57*10R06/00*0081
• E-marking number E57*COP*0279


IMPORTANT PRODUCT NOTE

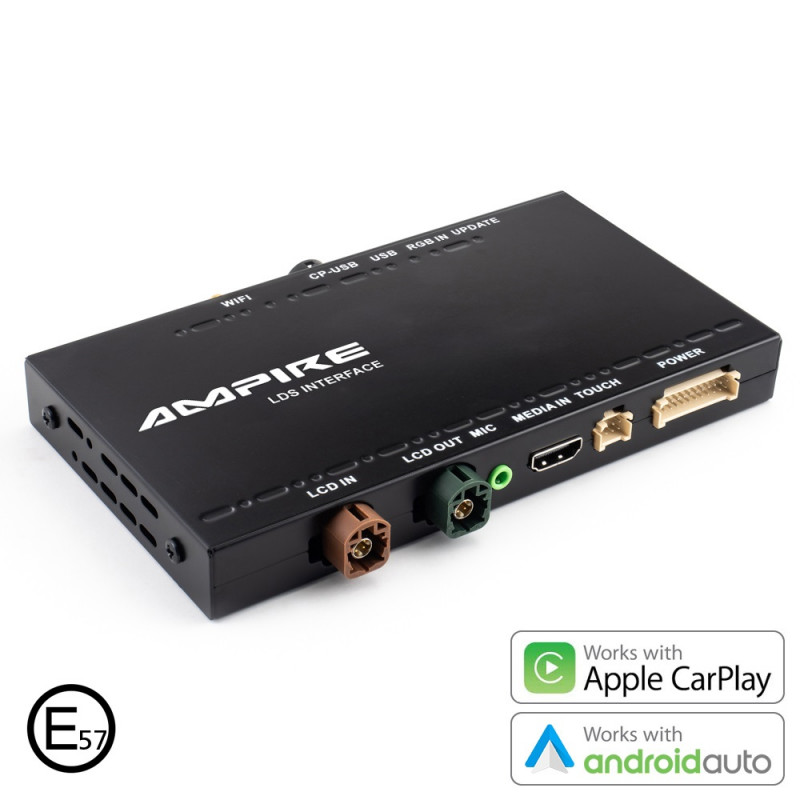

• The MEDIA IN port on the housing is not an HDMI input for playing external HDMI sources. This port is required for additional modules in some vehicle types. This product is controlled only by buttons and does not support touchscreen or gesture control.
• When operating the smartphone integration through the original buttons, you are also operating the original radio/navigation system in the background. Therefore, settings in the background could be adjusted.
• This retrofit is not intended as a hands-free device.

INSTALLATION NOTE
This product is designed for use in vehicles with a 12V battery. Do not install it in vehicles with a different voltage. Never extend the HSD signal lines. This product consists of high-precision parts and should not be subjected to strong impacts. Never open the housing. To protect driving safety and avoid violations of traffic laws, never operate the product while driving. The optional rearview cameras are only visible when reversing. Always pay attention to your surroundings and never rely solely on the camera. All installation steps should be carried out by a trained professional. During installation, the ignition must be turned off, and the product should only be connected to power after complete wiring. NEVER plug or unplug the cables while the product is powered on to avoid damaging the monitor or the product. Route the cables so they do not come into contact with metal edges. The wiring can be damaged, leading to fires. Avoid any contact with hot surfaces when wiring the main unit. High temperatures can damage the wiring and cause short circuits, arcs, and fires. Please do NOT install the product in a damp environment to avoid electric shocks, damage, and fires caused by a short circuit. Upon receiving the product, check if all components are in the packaging. If something is missing, inform the supplier/manufacturer. Start the engine before loading, check the interface to see if the function is displayed, check the key to see if the vehicle interface is working correctly. Please provide feedback to the supplier/manufacturer if you have any questions. Please handle the disassembled vehicle parts carefully during installation and avoid scratching the dashboard. Unused connector plugs must be insulated to prevent short circuits. Cable connections should be securely plugged in. Avoid impairing control components such as the steering wheel, gas pedal, and brake pedal.
