Side assist (Lanechange assistant) for Audi A8 4N Version: Right hand traffic

• Complete set for retrofitting the lane change assistant (Audi side assist) for Audi A8 4N
• intelligent technology for monitoring the blind spot and the traffic behind the vehicle
• Warning of approaching or swimming vehicles in the detection area
• The installed radar sensors (left and right site in the rear bumper) monitors the rear area and the area beside the vehicle from a speed of 30 km/h
• the system measures the distance and the difference in speed with other vehicles

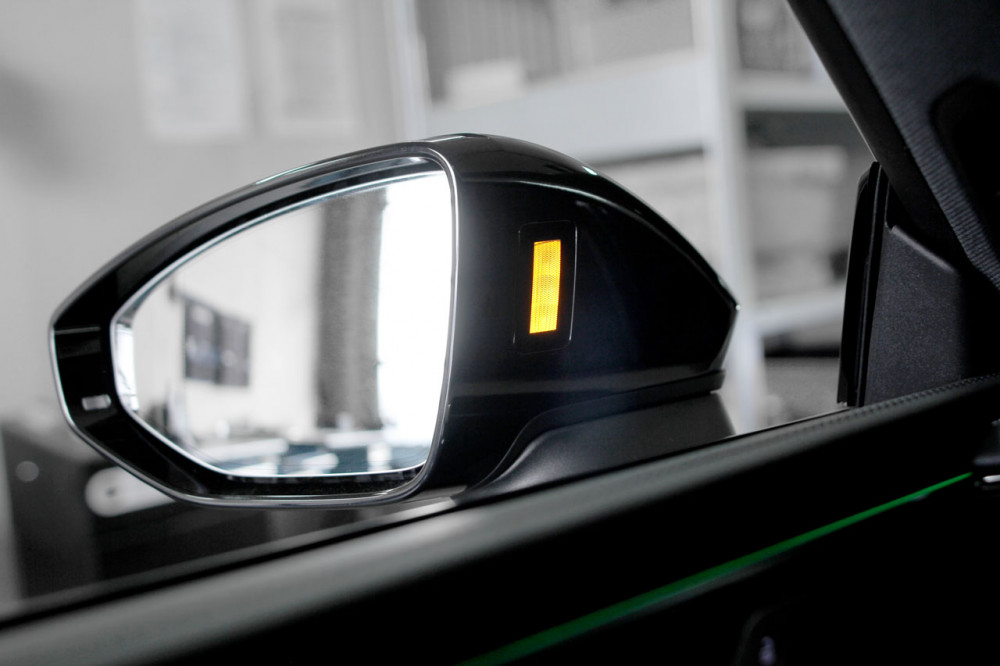

• Lights in both exterior mirrors warn of critical situations
• the exit warning warns when exiting in critical situations with flashing of the displays on the affected side and at the same time the door opening is briefly delayed

Selectable Option

• Left-hand-drive (PR-No.: L0L)

• Right-hand-drive (PR-No.: L0R)



Scope of delivery:

• cable set

• Radar Sensor

• Warning lights for exterior Mirror
• Caps for exterior Mirror

• Coding dongle

Notes:

• Only suitable for vehicles with ACC (PR-No.: 8T5, 8T8)
• Component protection of the control parts must be removed by the Audi dealer
• Only primed mirror caps are supplied, painting is still required
• For mirror caps which are not painted (e.g. aluminium) you have to order them yourself
• Some of the hardware may have been taken from test vehicles and underwent extensive functional testing. The software is up to date
• Compatibility of the door control units must be checked, there are 3 different hardware versions of the door control units (Lowline "3" - Midline "5" - Highline "7") required for "Lane Change Assistant" is Highline
• to determine whether you have the correct door control units, the part number must be read out via diagnostics

• Example part number: XX0 959 ?9X + index letter such as A, B, C

• Here is the location of the ? "question mark" is decisive
• ? = 3 = not compatible - door control unit must be replaced
• ? = 5 = not compatible - door control unit must be replaced
• ? = 7 = compatible for retrofitting "lane change assistant
• e. g.: 4M0959793X / 4M0959792X are suitable, 4M0959593X / 4M0959592X must be replaced
• If you do not have a compatible control unit at the factory, please use the control unit from the "Accessories" section. This ensures that the control unit has the correct software and data sets
