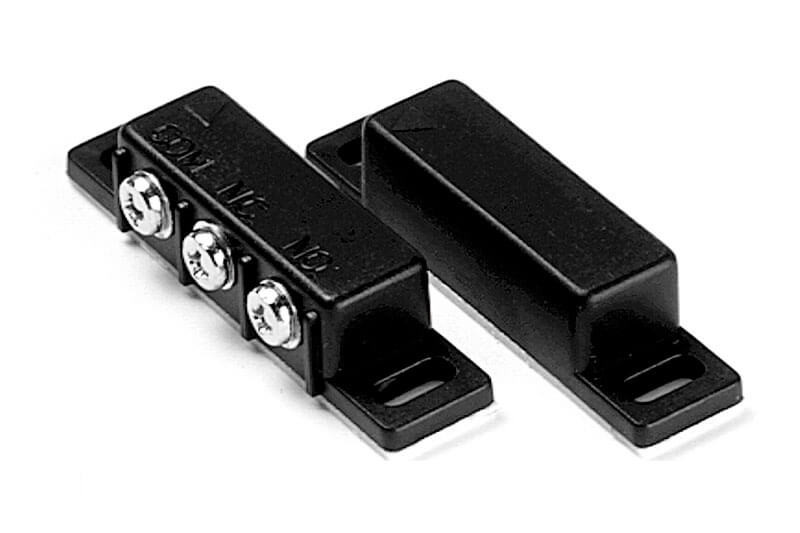

Magnetic Switch (NO), normally open

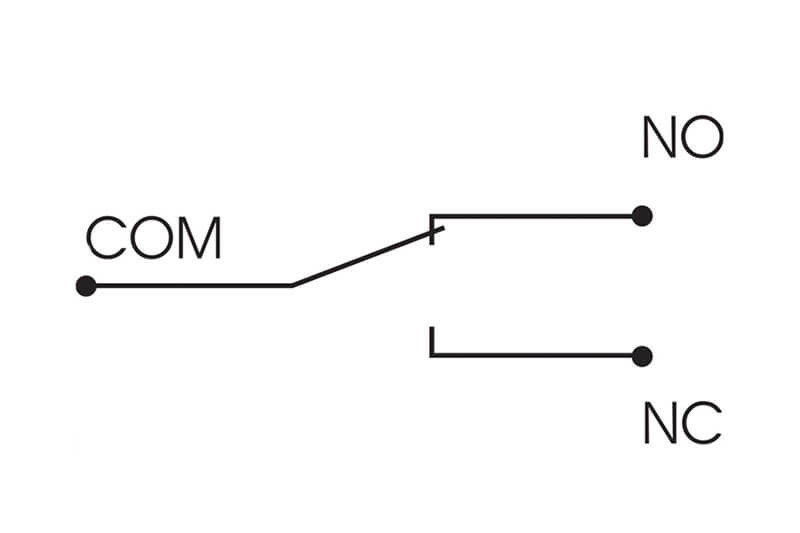

• This magnetic switch can be connected as normally open (NO)

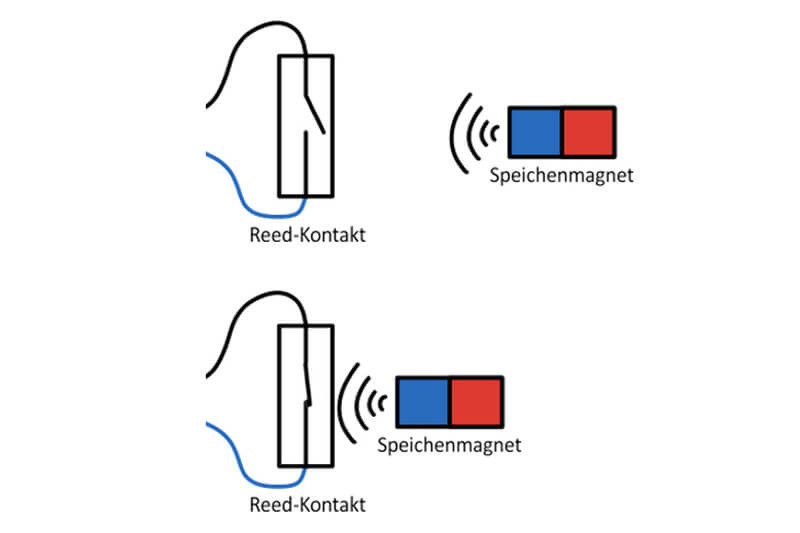

• "NO" means e. g. when the window is closed, the magnetic switch is "closed" and when the window will be opened, then the magnetic switch is "open"

Operating distance:

• 15-25 mm

Endurance:

• 3 Watt
• 100 volts DC
• 0.3 amperes

Housing:

• ABS
• black
• double-sided 3M tape

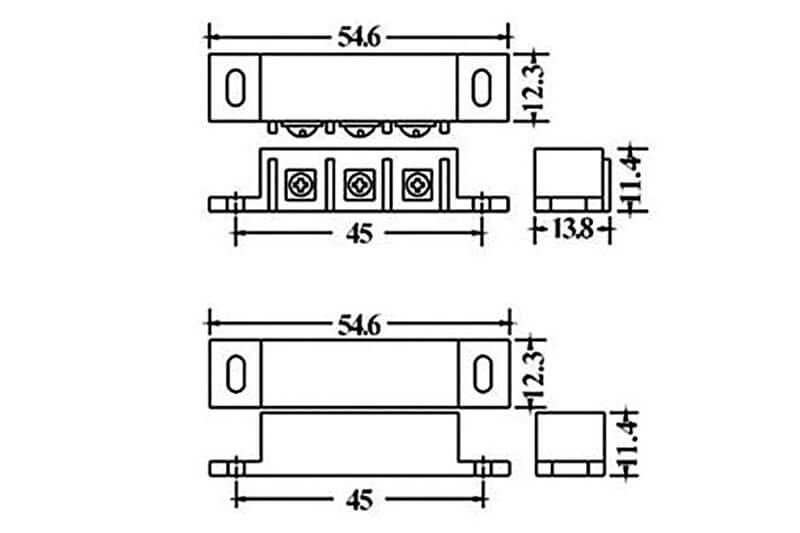

Dimensions (length x width x height):

• 54.6 mm x 12.3 mm x 11.4 mm (switch)
• 54.6 mm x 12.3 mm x 11.4 mm (magnet)
