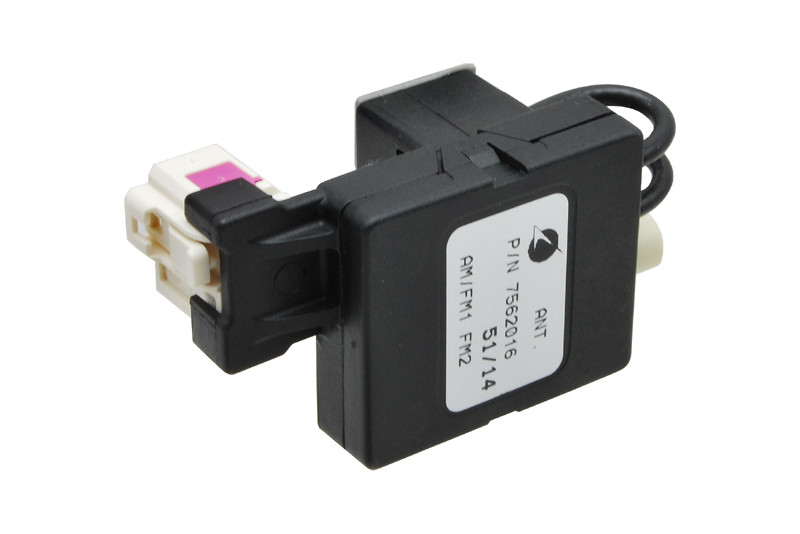

Amplifier and active AM / FM radio signal splitter

Amplifier and active AM / FM radio signal splitter

To connect a car radio or navigation with two car antennas with one car kit.

Suitable for cars:
- Universal use
- AUDI
- SEAT
- DAMAGE
- VW

Specifications:
- Frequency range: AM / FM 0.52-1.71 / 87.5-108 MHz
- gain: 6dB
- phantom power supply: min +7 to + 15.5V
- Current consumption: 15mA
- output impedance: 50Ohm
- input connector from the antenna: FAKRA male type B (white color)
- Output connector to the radio: FAKRA double female 90 ° type B (white color)
- installation under the dashboard
- Dimensions: 65 * 34 * 27mm
- Temperature range: -40 to + 70 ° C
- IP40 protection
