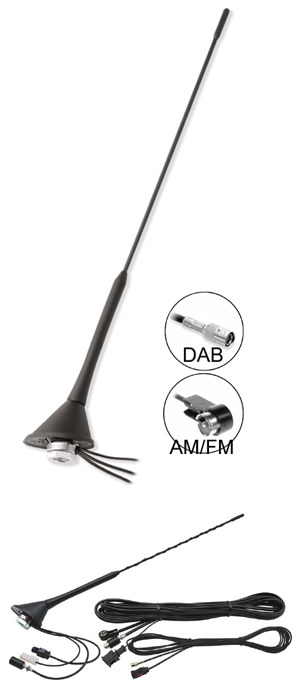

DAB + AM/FM Roof Antenna

Combo DAB/DMB + AM/FM roof antenna to the back part of the roof with amplifier

- Angle: 60°
- Length of struth: 40cm
- Dimensions of base: 6x4,3cm
- Instalatong to the circle hole (Ø19mm) or square hole (15x15mm)

DAB / DMB part:
- Frequency bend: 174 - 240MHZ (III.bend) / 1452- 1492MHz (L bend)
- Profit: 14dBi (III.bend) / 11dB (L bend)
- VSWR: - Length of cable: 5m
- conector: SMB [Female]
- Ampere: 50mA max.

AM/FM part:
- Frequency bend FM 76-108MH, AM 0,52-1,71MHz
- Length of antenna cable: 5,6m
- conector: ISO
- Photom powering of amplifier:12V

Using for cars:
Universal
ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Ypsilon (04->)
LOTUS Elite / LOTUS Esprite
MAZDA 323 (99->) / MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008)
MITSUBISHi Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I. / ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II. / ŠKODA Yeti
TOYOTA RAV4 / TOYOTA Corolla (02->) / TOYOTA Yaris (03->) / TOYOTA Prius
VW Lupo / VW Polo / VW Golf III IV / VW Corrado / VW New Beetle / VW Bora / VW Passat (93->)(97->)
VOLVO V40
