Complete kit Park Assist for Seat Ateca KH7 Equipment: Park Pilot rear existing, Model year: from model year 2021, PR number: 2JB, 2JD

• Complete set for retrofitting the original Park Assist for Seat Ateca KH7
• optional including parking assistance Park Pilot at the front and rear of the vehicle
• the vehicle recognizes longitudinal and transverse parking spaces independently and carries out the parking procedure as well
• with optical parking aid Seat OPS, if not already available
• The distance estimation to obstacles is significantly improved by individual response of each individual sensor as well as visual representation of this distance change

Selectable options:

• No Park Distance control available (PR-Nr.: 7X1)
• up to Model year 2020

• PR-No.: 2JB, 2JD
• PR-No.: 2JK
• PR-No.: 2JF
• from model year 2021

• PR-No.: 2JB, 2JD
• PR-No.: 2JK
• PR-No.: 2JF
• Park Distance control rear available (PR-No.: 7X1)
• up to model year 2020

• PR-No.: 2JB, 2JD
• PR-No.: 2JK
• PR-No.: 2JF
• from model year 2021

• PR-No.: 2JB, 2JD
• PR-No.: 2JK
• PR-No.: 2JF
• Park Distance control front & rear available (7X2)
• All model years
• All PR-No.

Scope of Delivery:

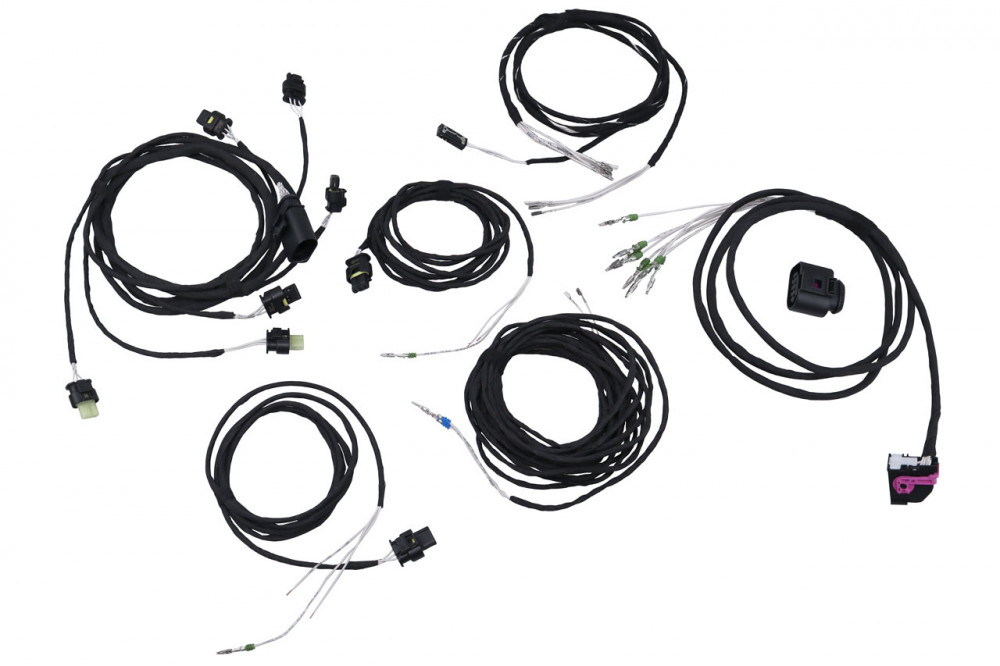

• cable set

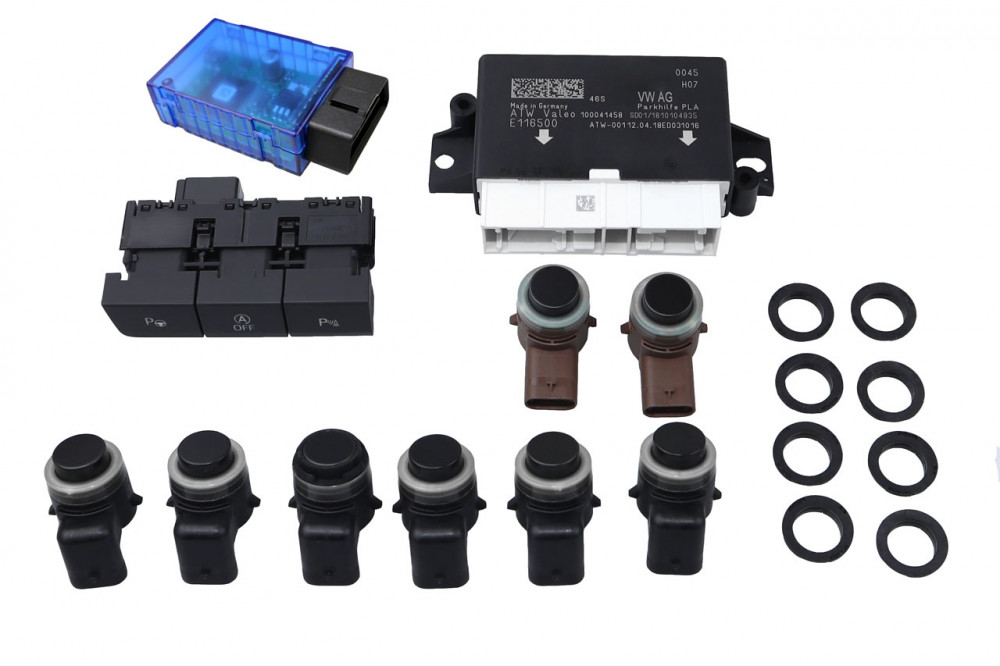

• control part

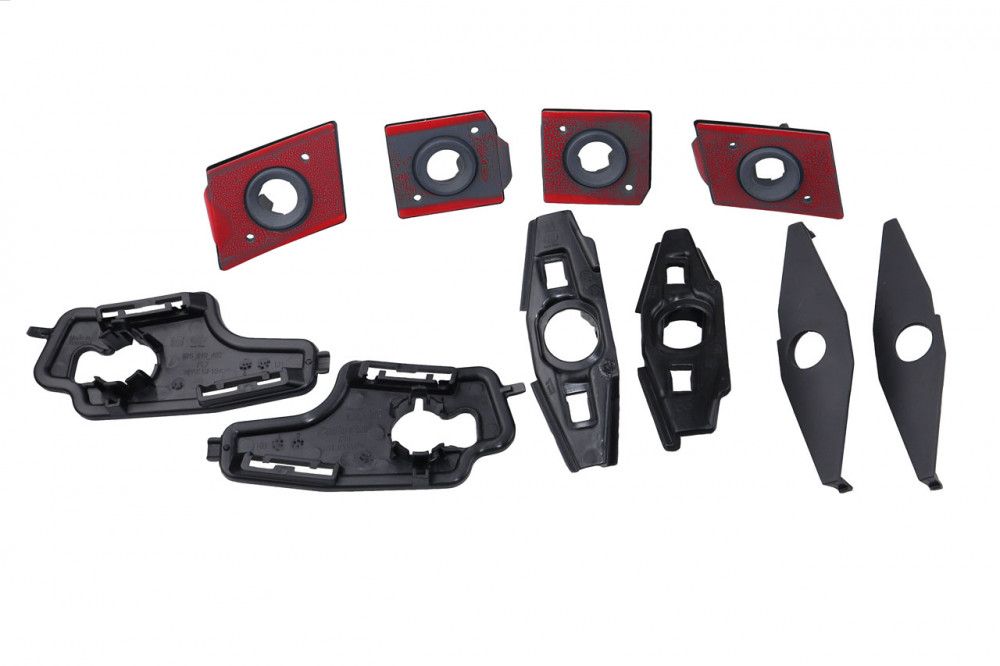

• sensors + holders
• button
• warning buzzer (not at 43500-2)
• coding dongle

Note:

• only suitable for vehicles with fog lights (PR-No.: 8WB or 8WH)
• After installation, the vehicle must be coded with the included coding dongle
• The sensors are delivered primed - painting is required

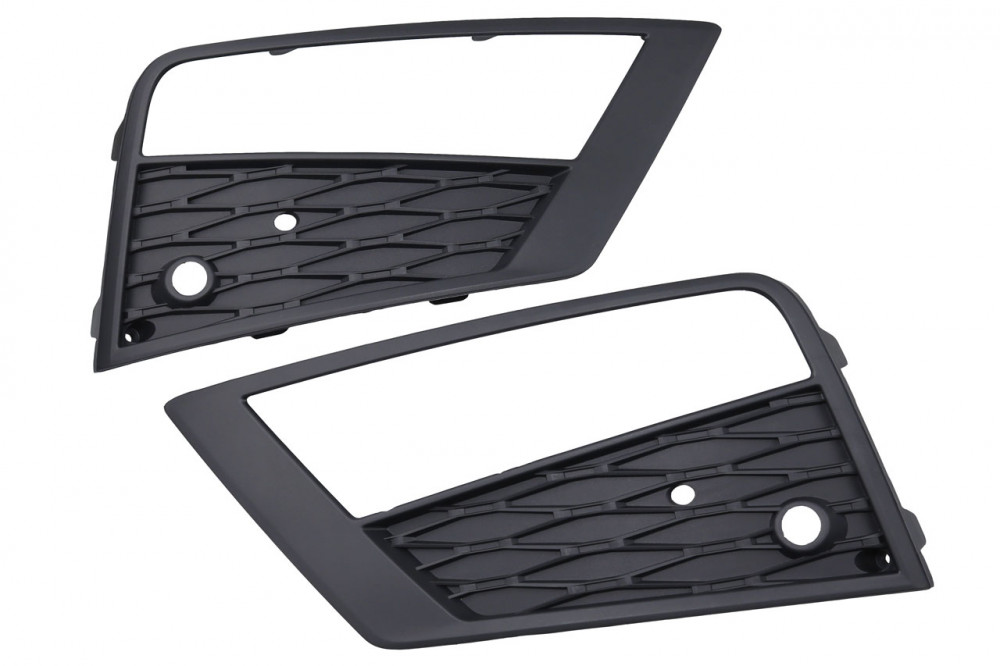

• On vehicles with glossy black covers in the front bumper, the brackets and covers included in the scope of delivery must also be painted.
