Air Heater Air Top 2000 STC 12V Diesel for T5 7H, 7E, T6 SG

• Complete set for retrofitting an original air parking heater for VW T5 7H, 7E, T6 SG
• The Webasto Air Top 2000 STC heats the interior and clears the windows of ice without starting the engine
• Combines maximum comfort, stable heating performance, and low fuel consumption
• Controlled by the MultiControl HD timer
• Stepless temperature adjustment
• The heater is mounted under the vehicle, the timer can be placed anywhere inside
• Heater technical data:
• Fuel: Diesel
• Heating medium: Air
• Voltage: 12 Volt
• Heating power full load: 2.0 kW
• Heating power partial load: 0.9 kW
• L/W/H: 311/120/121
• Weight: 2.6 kg

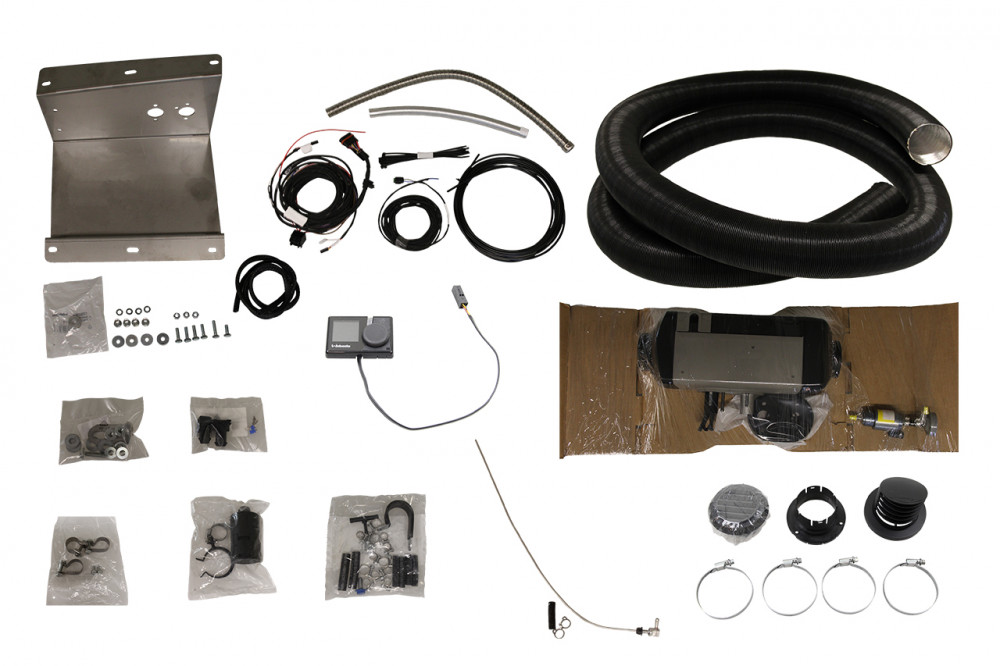

Scope of delivery:

• Complete retrofit kit
• Webasto Air Top 2000 STC 12V Diesel
• Installation kit Air Top 2000 STC Standard
• MultiControl HD timer
• Hoses, vents
• Small parts

Note:

• Only suitable for vehicles without air suspension
• If an additional parking heater (PR-No.: 9M5) or water parking heater (PR-No.: 7VL) is installed, an additional fuel intake is required
• If no heater is factory-installed, a tank intake is required
• Optional accessories:
• Air duct T5 7E/T6 SG for transporter without partition wall original VW
• Air duct T5/T6 for transporter with partition wall original VW
• Air duct T5/T6 for Multivan/Caravelle original VW
• External temperature sensor
• 1800 mm extension for timer
• Fuel intake 6x5x6 L=50 H=36 T-piece plastic
• Tank intake complete
