FISTUNE DAB, DAB+ Integration for BMW F-Series

• the FISTUNE is fully integrateed into the vehicle, so that all available informations will be display in your BMW infotainment system (CIC / NBT / NBT touch) including by the following radio systems

  • CIC Professional
  • CIC Business
  • CIC Radio
  • NBT
  • NBT touch
• control is given through the iDrive or radio
• DAB and DAB+ codec i.e. older DAB stations are received
• for a high quality digital reception, the FISTUNE, can use the links to the original BMW antenna system
  • the reception quality is thereby significantly improved
  • in addition, this makes for a much easier installation of the system

DAB for clear and noise-free reception:

In contrast to analogue FM transmission DAB (Digital Audio Broadcasting) is a new method for digital transmission of radio signals via a network of terrestrial transmitters. It provides listeners with more choices and information delivered in clear sound quality without any noise. With DAB digital stations there are no frequencies to remember.

What distinguishes DAB+ from DAB?

DAB+ is a further development of the DAB standard, thus assumes all functions of DAB, but offers additional benefits. The technical difference is the type of audio coding, ie the two standards use different methods for the preparation before and after the transfer of data. While DAB uses MPEG-1 Layer-2, DAB+ used MPEG-4 HE-AAC v2, the most efficient audio compression used worldwide.

The FISTUNE CIC is suitable for the following vehicles:

• BMW 1 series - F20, F21
• BMW 2 series - F22, F23
• BMW 3 series - F30, F31, F34, F35, F80M
• BMW 4 series - F32, F33, F36, F82M, F83M
• BMW 5 series - F10, F11, F18, F07
• BMW 6 series - F12, F13, F06
• BMW 7 series - F01, F02, F03, F04
• X3 - F25
• X4 - F26
• X5 - F15, F85M
• X6 - F16, F86M

Selectable options:

• CIC
• NBT, NBT touch

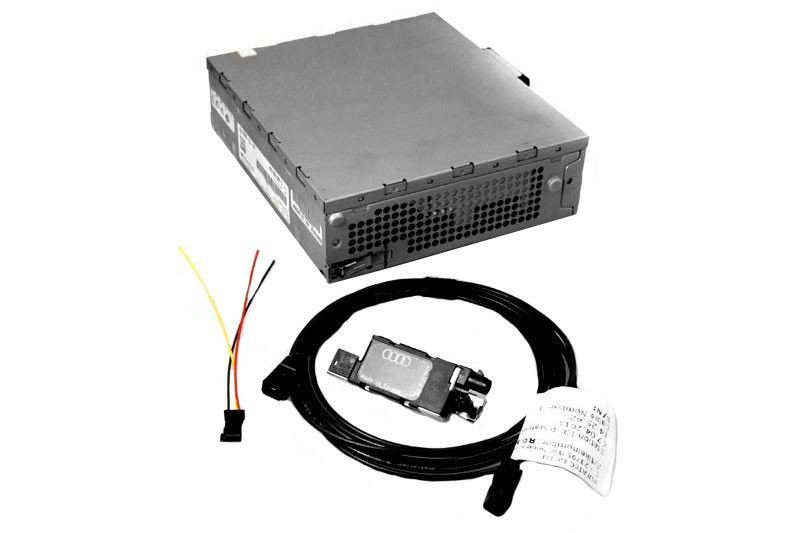

Scope of delivery:

• FISTUNE Interface
• coding dongle
• harness

Note:

• only for cars without CD changer / DVD changer
• The radio / navigation system must have MOST. Remove the Quadlock connector on the radio and look into the Quadlock from the radio
• there is no automatic station search, this must be started manually via the iDrive or Radio
  • manual tuning is only necessary for regional ensembles while the car is travelling across regions with different regional ensembles.
  • there's no new scan required for global ensembles
• no automatic switching of DAB <-> FM
• depending on the vehicle different antenna modules are required
• On Item 40150-1: Not compatible with NBT Evo ID5 and ID6
• not suitable for the Alpine system AL2022 (without fiber optic input)
• not suitable for Alpine Radio Model: EE0001
• not suitable for BMWEHU100 L7 Entry Basis
