Cable set to retrofit the original Audi side assist for Audi A4 8W, A5 F5
Intelligent technology for monitoring the traffic behind and beside the vehicle
Warning of approaching vehicles or vehicles which are floating with the traffic
The installed radar sensors (left and right site in the rear bumper) monitors the rear area and the area beside the vehicle from a speed of 30 km/h
The system measures the distance and the different speed between you and the other vehicles
Indicators in both exterior mirrors alert about critical situations
incl. rear cross-traffic assistant (in conjunction with visual parking aid, PR no.: 7X2, 7X5)
Cross traffic assistant can warn of collisions with approaching cross traffic when reversing at speeds of up to 15 km/h
if the system detects critical cross-traffic, a visual and acoustic warning is given and the brakes are applied briefly
Scope of delivery:

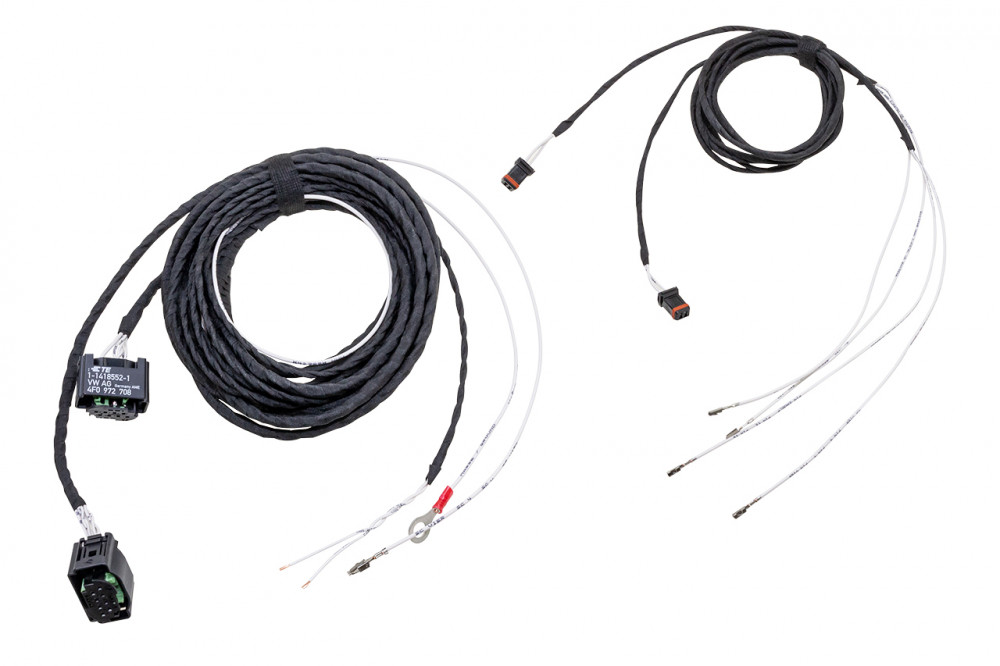

Wiring set
Note:
For the complete retrofit further hardware components (e.g. radar sensor, indicators, mirror caps etc.) are required.
For coding the dongle with article number 42288 is required
Compatibility of the door control units must be checked, there are 3 different hardware versions of the door control units (Lowline "3" - Midline "5" - Highline "7") required for "Side Assist" is Highline
To determine if you have the right door control units, the part number must be read out by diagnostics
Example part number: XX0 959? 9X + index letter such as A, B, C
Here is the location of? "Question mark" crucial
? = 3 = not compatible - door control unit must be replaced
? = 5 = not compatible - door control unit must be replaced
? = 7 = compatible for retrofitting "Side Assist"
eg 4M0959793X / 4M0959792X are suitable, 4M0959593X / 4M0959592X are to be replaced
In case the ex Factory installed control units are not suitable, you need to use the control units in our "Accessories" area. This ensures that the control unit has correct software and data sets
Additional notices:
Vehicles with SFD2 on request. More information can be found here
