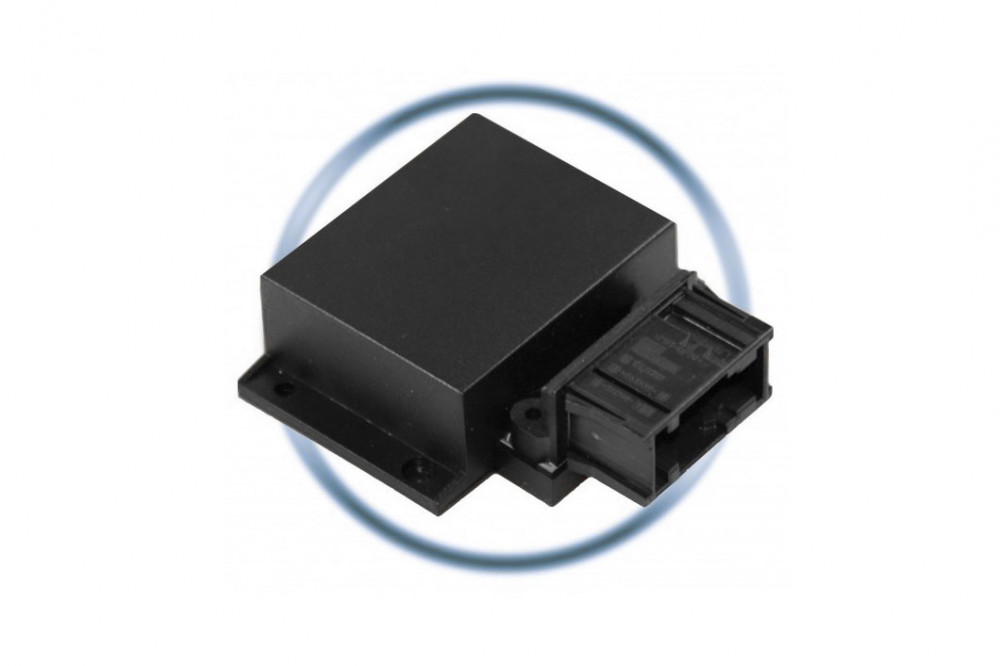

VW RNS 510 DVD, RSE Interface, Video out TV / rear view camera available?: with TV / RVC - NTSC Version

• Specific module in order to get out the video + audio signal (DVD-drive) of touch screen head unit VW RNS 510
• Suitable for splitting the video screen of the head unit to additional screens within the vehicle
• For example rear seat entertainment - screens in the head rest
• Video signal will be sent to additional screens even when another menu on the radio will be selected (Nav, Radio ...)
• Easy Plug & Play installation (in case of no factory fitted TV or rear view cam)

Selectable options:

• with TV / RVC - PAL Version
• without TV / RVC - PAL Version
• without TV / RVC - NTSC Version
• with TV / RVC - NTSC Version

Scope of delivery:

• Wiring harness
• Interface

Note:

• Only the signal of the internal DVD-drive will be transferred - not suitable for the TV signal
• Suitable for head units with part nr. index "B" - For head units with index "A" an update has to be completed
• not suitable for RNS510 with part number 7E0035686A, 1T0035686C, 7E0035680A (SW3978)

• Devices with software version from 3xxx are not supported
