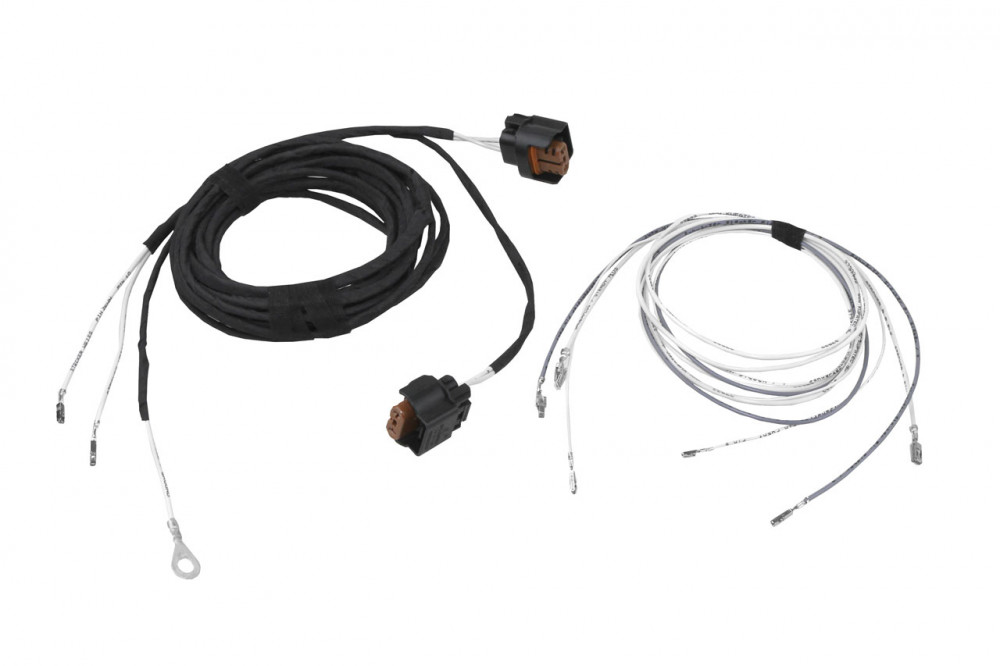

Fog light cable set for VW, Seat, Skoda

• Specific set of cables for retrofitting original fog lights
• Suitable for the following VW vehicles:
  • Golf 6 (GTI, GTD needs 38369)
  • Touran (From 2011 model year)
  • Caddy 2K
  • Scirocco 1K
  • EOS (from 2010 model year)
• Suitable for the following Skoda vehicles:
  • Skoda Octavia 1Z from model year 2009
• Suitable for the following Seat vehicles:
  • Alhambra 7N
  • Altea 5P from model year 2010
  • Leon 1P from model year 2010
• The following parts will be needed in addition:
  • Fog light left, right
  • Ventilation grid left, right
  • Light switch with fog light function
• Suitable for fog lights with HB4 socket
• Note: Please check whether the BCM onboard control unit (3 x 52-pole connector) is fitted with terminals on the following position:
  • Connector C (Beige) - PIN 25
  • Connector A (Black) - PIN 25
• In case of no available terminals the BCM needs to be replaced

Scope of delivery:

• Set of cables

Note:

• Vehicle requires coding after installation
• In order to be able to turn the foglights on you need another light switch with foglight-function
