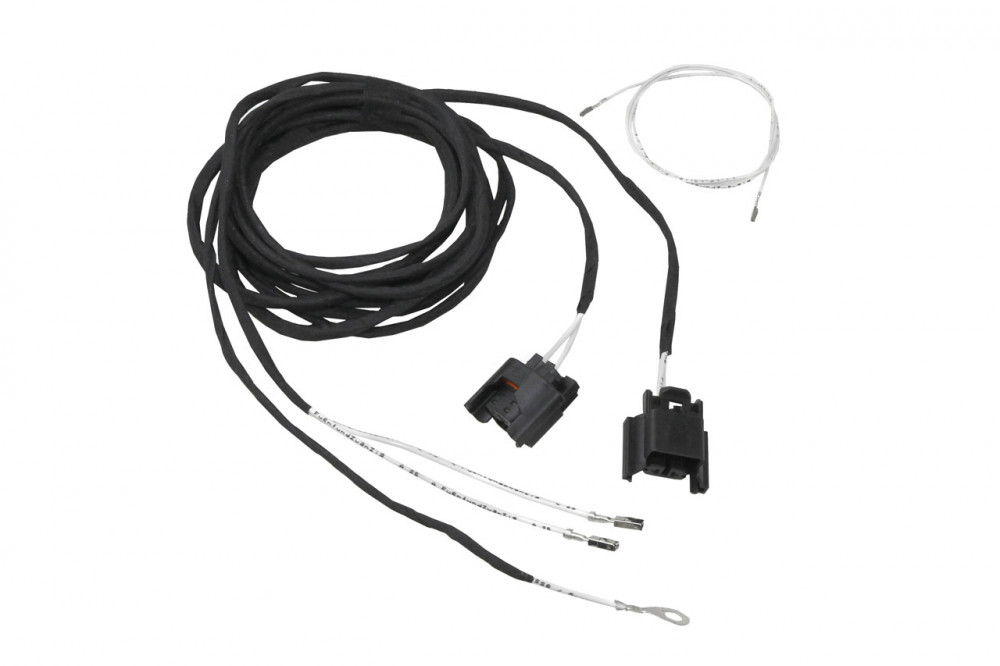

Fog Light cable set for VW, Audi, Skoda

• Specific wiring in order to retrofit original fog lights for VW / Audi / Skoda
• Easy installation
• Fog lights will be needed in addition
• In order to be able to turn the foglights on you need another light switch with foglight-function
• In some cases the control unit for central electric needs to be replaced as well
• Please check whether the BCM (body control module) onboard control unit  (3 x 52-pole connector) is fitted with terminals on the following position:
  • Connector C (Beige) - PIN 25
  • Connector A (Black) - PIN 25
• In case of no available terminals the BCM needs to be replaced

Suitable for the following vehicles:

• VW Golf 6 GTI, GTD
• VW Passat B7
• VW Sharan 7N
• VW Volkswagen CC
• Audi TT 8J from Model year 2010
• Skoda SuperB 3T
• Skoda Ocatvia 1Z from model year 2010 (not RS and SCOUT)

Scope of delivery:

• set of cables

Note:

• Vehicle requires coding after installation
