Interface for final coding after retrofitting original R-line LED rear lights VW Golf 6
We need information about the factory fitted type of headlight which is fitted on your vehicle:
37572-1 for vehicles with HID xenon head lights with intgerated LED daytime running light (DRL) within the head light
37572 for all other head lights
Once the interface has been connected to the OBD-port the retrofitting will be adjusted automatically to the current coding of the vehicle
Selectable options:
Xenon with DRL
all other
Scope of delivery:

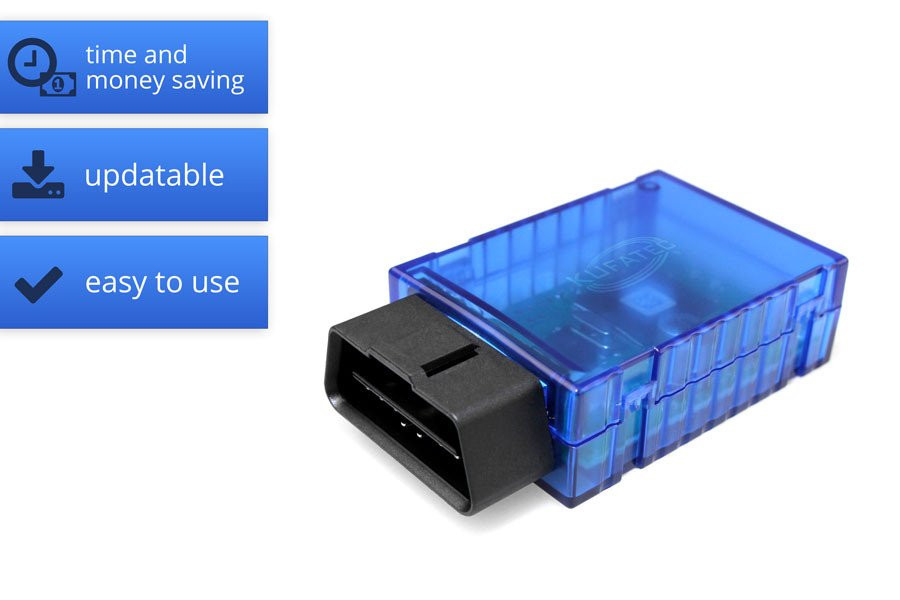

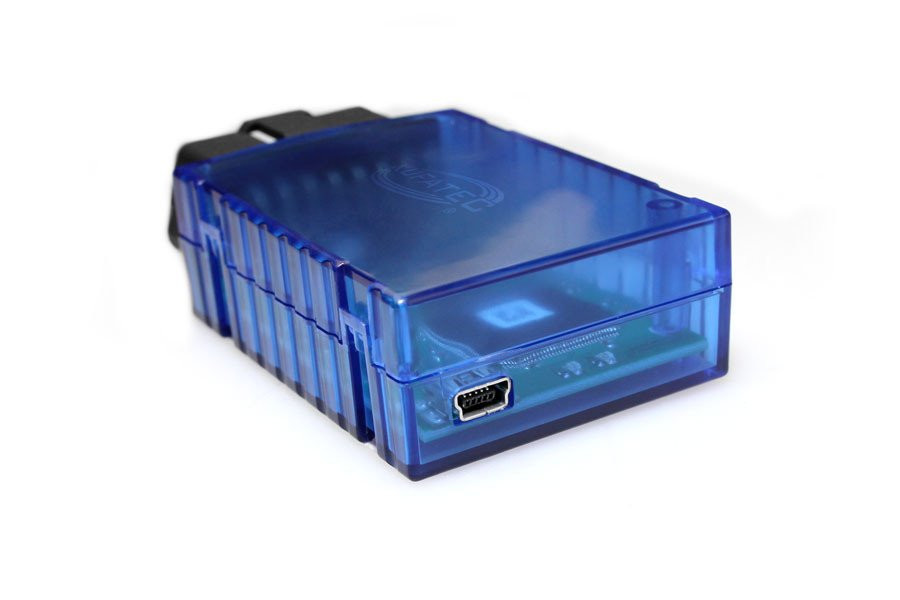

1x coding dongle
Note:
Only for vehicles after week of production 45/2009
Diagnostic interface can be used several times - But only for the same vehicle
Only suitable in combination with the correct adapter - Article-ID 37570
In case you are not sure about the week of production please check the software index of the control unit (BCM) for central electric with your local VW dealer
The control unit (BCM) has to have a software index higher then 500
For control unit (BCM) with software index lower then 500 you do have 2 possibilities:
1. Replacing the BCM to a higher software index (higher then 500), (item nr. 37697)...Or
2. ...agree with an error display within the driver information system
No guaranty for functionality by using non Kufatec adapters
Not suitable for right hand drive, not suitable for USA
