Automatic headlight range control for VW Golf 7 (VII) Equipment: LED, adaptive headlight, 0N4

• Complete set for the retrofit of Bi-Xenon / LED headlights including Automatic Headlight Range Control  for VW Golf 7
• Control unit for central electric needs to be replaced as well (item 39907 - not part of the delivery)
• Only suitable for original Bi-Xenon or LED headlights
• the Xenon adapter / LED Adapter you need for this retrofit are already part of the delivery

Selectable options:

• 0N1 (rear axle "Standard") - without electr. damper control
• 0N4 (four-handlebar rear axle) - without electr. damper control
• 4motion drive - without electr. damper control
• Cornering light 0N1 - without electr. damper control
• Cornering light 0N4 - without electr. damper control
• Cornering light, 4motion drive - without electr. damper control
• Electric damper control
• Cornering light - electr. damper control
• LED, cornering light, 0N1
• LED, cornering light, 0N4
• LED, cornering light, 4motion
• LED, cornering light, electr. damper control

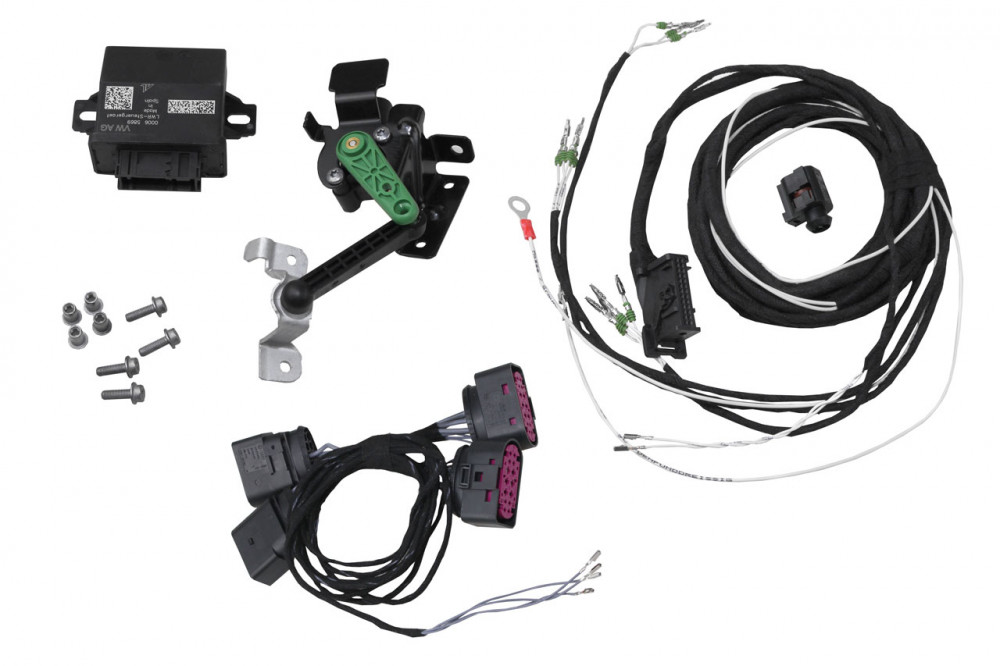

Scope of delivery:

• cable set
• Xenon adapter / LED Adaoter
• control unit
• Linkage, holder, sensor (not with damper control)

Notes:

• Cornering light is only supported by headlights with LED daytime running lights DRL
• Check compatibility of Can Gateway and replace if necessary against Highline variant
• After installation you need to code the vehicle by using diagnostic interface article-ID 40084 or 40084-1 or 40084-2

• In most countries the leveling system is required by law in combination with Bi-Xenon lights
