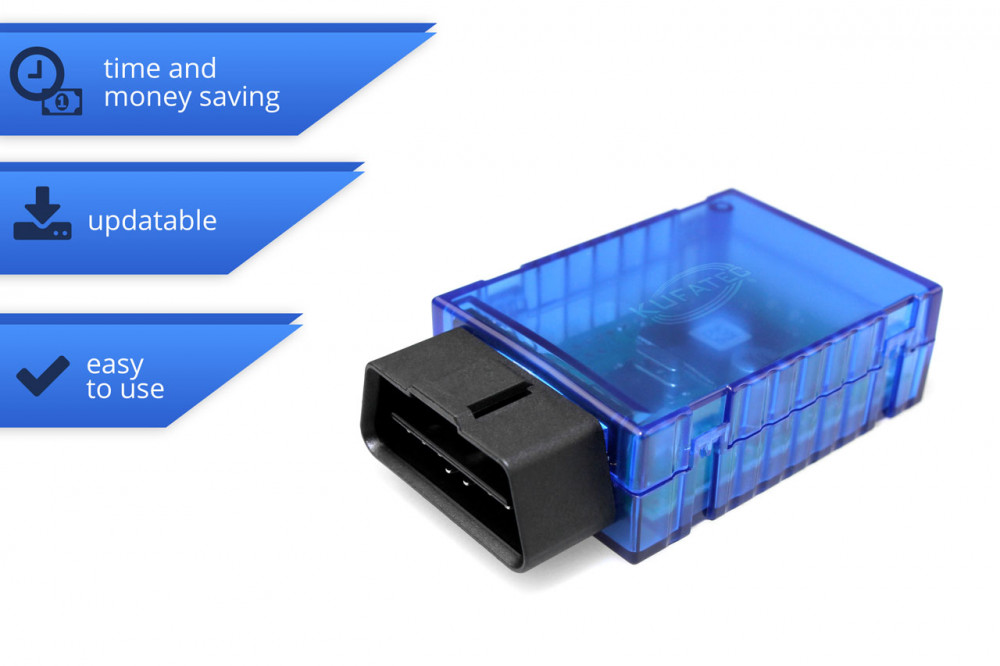

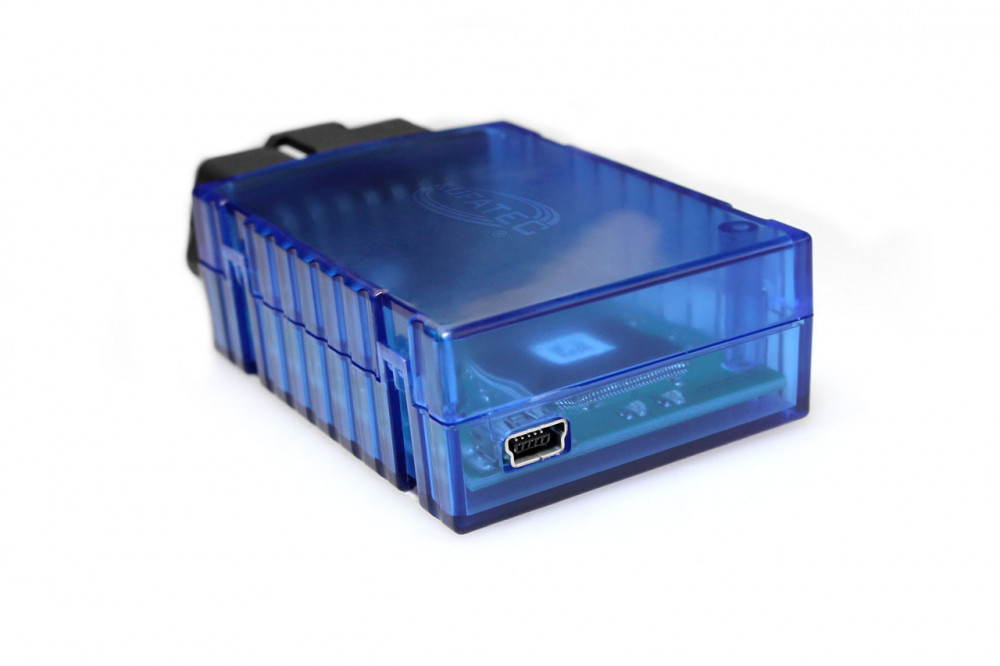

KUFATEC diagnostic interface
- Interface to activate the traffic sign recognition
- The supported speed limits are displayed in the MFA+/FIS and in the headup display
- Version 1 is suitable for the following vehilces:
- VW Crafter SY, SC, SZ
- VW Golf 7 VII
- VW Golf 7 Sportsvan
- VW Touran 5T to year 2022
- VW Tiguan AD1 to year 2020
- VW Tiguan Allspace
- VW T-Cross C11 to year 2020 *
- VW T-Roc A11, AC7 to 10.01.2022
- VW Passat B8 3G to year 2019
- VW Sharan 7N2
- Audi A1 GB to year 2020
- Audi A3 8V
- Audi TT 8S (FV)
- Audi Q2 GA to year 2020
- Audi Q3 F3 to 21.11.2019
- Skoda Karoq NU7 to year 2020
- Skoda Kodiaq NS6, NS7 to year 2020
- Skoda Octavia 5E
- Skoda SuberB 3V to year 2019
- Seat Alhambra 711
- Seat Leon 5F
- Seat Ateca KH7 to year 2020
- Seat Tarraco KN2 to year 2020
- Version 2 is suitable for the following vehilces:
- VW Polo AE1
- VW Taigo CS
- VW Touran 5T from year 2023
- VW Tiguan AD1, AX1 from year 2021
- VW Tiguan Allspace BJ2
- VW T-Cross C11 from year 2021
- VW T-Roc D11, AC8 from 11.01.2022
- VW T6.1 SH
- VW Passat CB from year 2020
- Audi A1 GB from year 2021
- Audi Q2 GA from year 2021
- Audi Q3 F3 from 22.11.2019
- Skoda Fabia PJ
- Skoda Kamiq NW4 from year 2021
- Skoda Karoq NU7 from year 2021
- Skoda Kodiaq NS6, NS7 from year 2021
- Skoda Suberb 3V from year 2020
- Seat Ateca KH7 from year 2021
- Seat Tarraco KN2 from year 2021
Selectable options:
- version 1, with installed camera 5Q0 (MFK1) or 3Q0 (MFK2)
- version 2, with installed camera 2Q0 (MFK3)
Scope of delivery:
Note:
- Only for vehicles with PR-Nr.: QK1, QK2 + 9S5 (not Audi A3 and Q2), 9S0, 9S1, 9S6, 9S8, 9S9 suitable
- For VW Crafter only vehicles with lane departure warning system (PR-No.: 7Y4 or 7Y9) or highbeam assist (PR-No.: 8G1)
- Only for vehicles with navigation PR-Nr.: 7UF, 7UG, 7UT
- On vehicles with preparation for navigation PR-No.: 7UH or 7UJ the navigation must be activated
- Not suitable for US vehicles (PR-No.: BU2)
- * for T-Cross C11 the PR-No.: AW4 must be present and the commissioning is done by KUFATEC, VAS Dongle 5054 or 6154(A) required
- With version 2, the front camera must be replaced (order item 45415-1) and commissioning takes place via remote connection
Additional notices:
- The coding dongle is bound to the respective vehicle after initial use. Returning used dongles is not possible. Before using the dongle, please check whether a software update is required using the "Dongle Tool" found HERE
