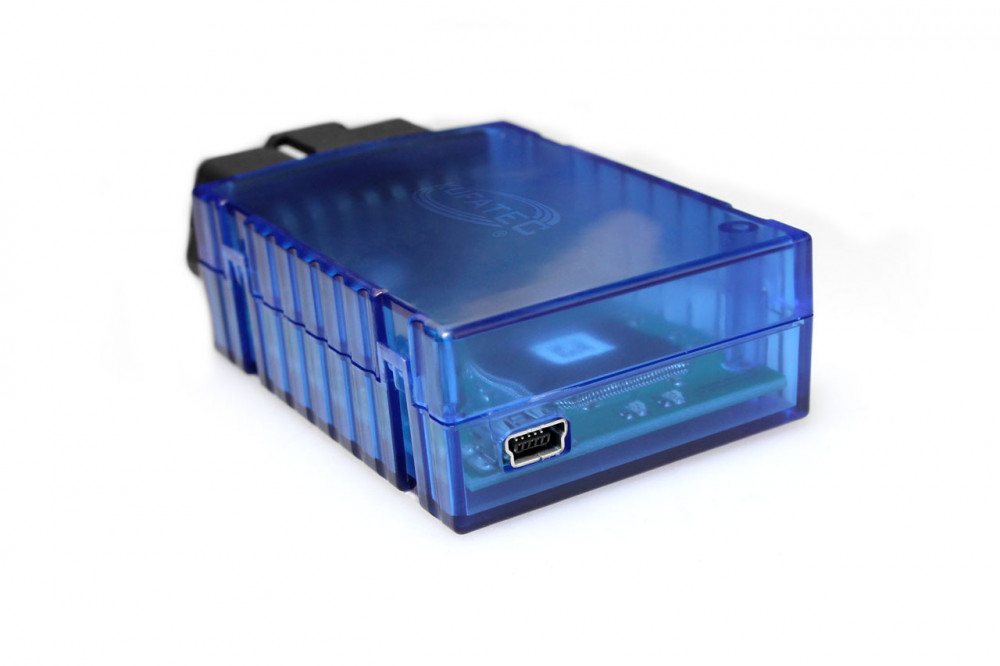

OBD adapter for final coding if an original trailer hitch (towbar) has been retrofitted
Simply connect the adapter to the OBD interface of the vehicle - done!
The interface adapts the retrofit fully automatically to the existing vehicle coding
Selectable options:
Varaint 1 (OEM control unit)
Variant 2 (no OEM control unit) **
Scope of delivery:
1x coding dongle
Note:
Diagnostic interface can only be used for one vehicle
Suitable for the following models:
VW Arteon 3H
VW Caddy SB *
VW Crafter SC, SY, SZ
VW Golf 7 all
VW Golf 8 all *
VW Passat B8
VW Tiguan AD1, AX1
VW Tiguan Allspace BW2, BJ2
VW Touareg CR
VW Touran 5T
VW T-Cross C11
VW T-Roc A11
VW T6.1 SH
VW T7 ST *
VW ID3 E11 *
VW ID4 E21 *
VW ID5 E39 *
Audi A3 8Y *
Audi A4 8W
Audi A5 F5
Audi A6 4A ***
Audi A7 4K ***
Audi A8 4N ***
Audi Q2 GA
Audi Q3 F3
Audi Q4 F4 * / ****
Audi Q5 FY ***
Audi Q7 4M ***
Audi Q8 4M ***
Audi e-tron GE ***
Seat Ateca KH7
Seat Born K11 *
Seat Leon 5F
Skoda Enyaq 5A*
Skoda Kamiq NW4
Skoda Karoq NU7
Skoda Kodiaq NS7
Skoda Octavia 5E
Skoda Scala NW1
Skoda Suberb 3V
other vehicles on request!
Currently the following AHK control parts are supported:
4M0 907 383 D
4M0 907 383 F
8W1 907 383 C
5Q0 907 383 M
5Q0 907 383 N
5Q0 907 383 L
5H0 907 383
5H2 907 383
5H2 907 383 A
5H2 907 383 B
5H2 907 383 C
7C0 907 383
other control parts on request!
the coding adapter can only be used for one vehicle
* At the moment, for mqb 2020 and MEB (a.s.Golf 8 and ID3) the respective control unit must be unlocked for a limited time before using the dongle.This must be done by a workshop with valid GEKO access
** Variant 2 is to be used if the installed AHK control part is not a VAG original part, in this case only the vehicle is coded, not the control part
***Currently, retrofitting vehicles from model year 2024 is not possible
****Currently, retrofitting is not possible for vehicles from 25.11.2023 onwards
Additional notices:
Vehicles with SFD2 on request. More information can be found here
