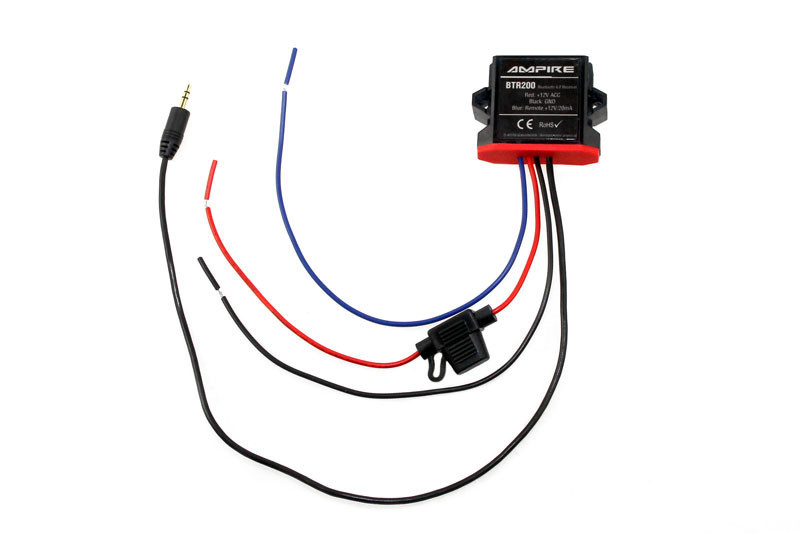

A2DP Bluetooth receiver 3.5 mm jack Ampire BTR200

• This universal A2DP Bluetooth receiver was developed for vehicles which have a 3.5 mm jack socket and 12 volt vehicle power supply as AUX input
• AMPIRE A2DP Bluetooth receiver with auto-remote function
• splashproof, marine certified
• Automatic activation
• Automatic remote output
• QDL licensed Bluetooth 4.0 CRS I9chip
• A2DP in the highest EDR specification - Bluetooth audio streaming also uncompressed files like Wave, Flac, Lossless, MP3 etc.
• 3.5 mm jack plug with signal output 1.0 V
• SSID Display name: BTR200
• All settings such as volume, music selection, and play / pause, are performed on your device
• The BTR200 can be installed out of sight because it has no controls or buttons that need to be operated

Technical specifications:

• Voltage: 12 V DC
• Current consumption: 40 mA max.
• Bluetooth 4.0
• Frequency range: 20 Hz-20 kHz
• Range up to 10 m

Connections:

• Blue: remote output +12 V / 20 mA
• Red: +12 V Ignition (ACC) Fuse 2 A
• Black: Mass
• 3.5 mm jack plug

Scope of Delivery:

• AMPIRE BTR200 Bluetooth Receiver

Note:

• Several devices can be connected to the BTR200, but only one device can stream music
• The BTR200 always remembers the most recently remodeled device and connects itself automatically after switching on. A connection to another device must be done manually
• If the connected device is out of range for more than a minute, the connection is automatically interrupted and the BTR200 goes into pairing mode (LED flashes)
