Alpine 2-way speaker set Adventure Audio for VW T6 SG Version: Version 2

Upgrade your Volkswagen T6 SG with the new Alpine Adventure Audio high-end component speaker system.

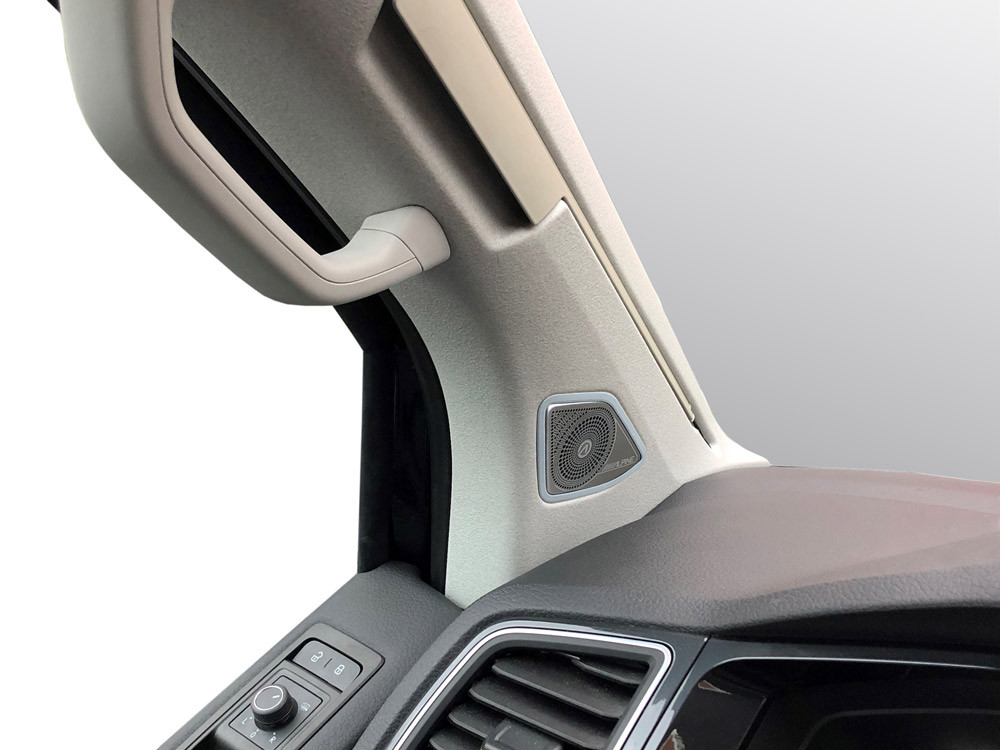

This Alpine Adventure Audio system for the VW T6 SG perfectly unites function with form: enjoy audiophile grade sound quality, while the beautiful photo-etched stainless-steel tweeter grills simply look stunning in your A-pillars.

The High-end tweeters let you hear every note with stunning clarity and fast dynamics, while the mid-range door speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favorite songs with powerful mid-bass and amazing texture and accuracy

Due to the original VW connectors and usage of the original wiring harness, installation is fast and easy. The system is also compatible with the front windscreen roller blinds in the VW T6 SG and can be further upgraded to the Concert Ensemble with a powerful 180 Watts subwoofer and a 6-channel DSP amplifier.

Suitable for the following vehicles:

• VW T6 SG

Features

:

Mid-Range Woofer

• 166 mm mid-range door speaker
• Includes steel plates for solid door installation and adaptation to 200 mm door cut-out
• High quality steel basket and rubber surround
• 25 mm voice coil
• Large Ferrite magnet
• Includes foam seal ring
• For easy installation with original VW cable harness (original connectors)

Tweeter

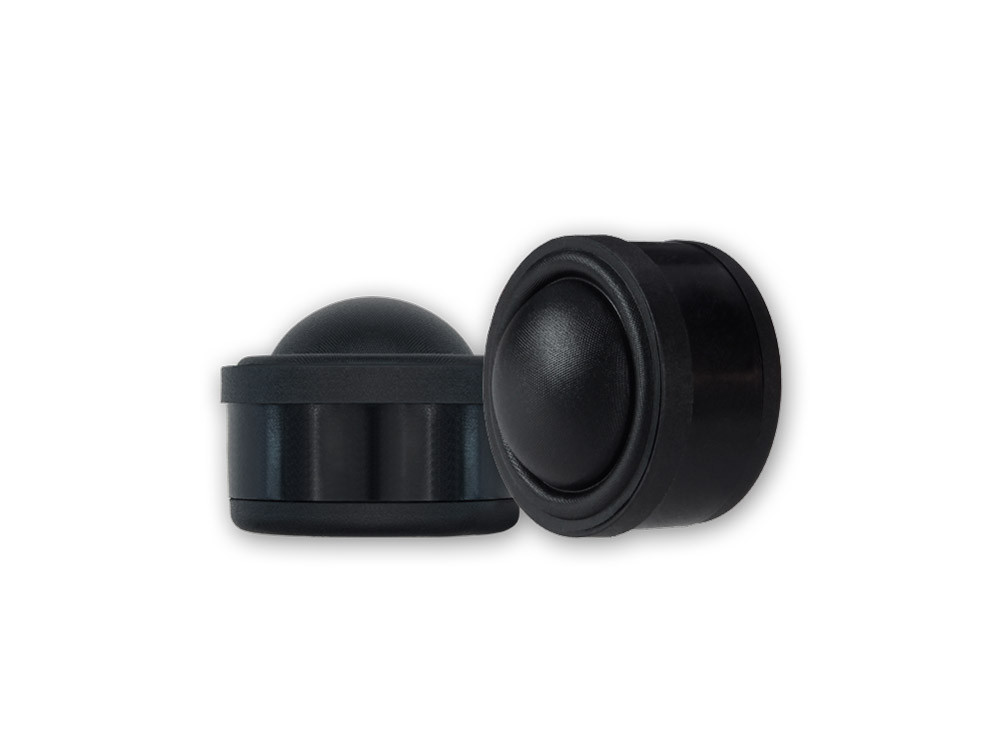

• 28 mm audiophile-grade back-chambered silk-dome tweeters
• Neodymium magnet

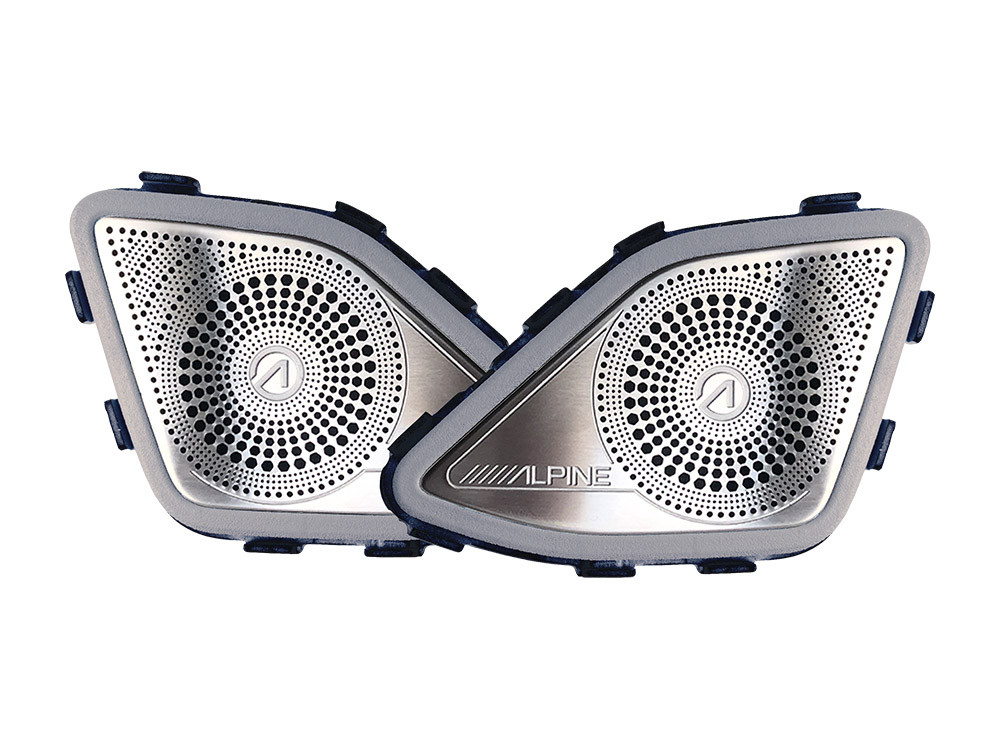

• Stainless steel tweeter grills (photo etched)

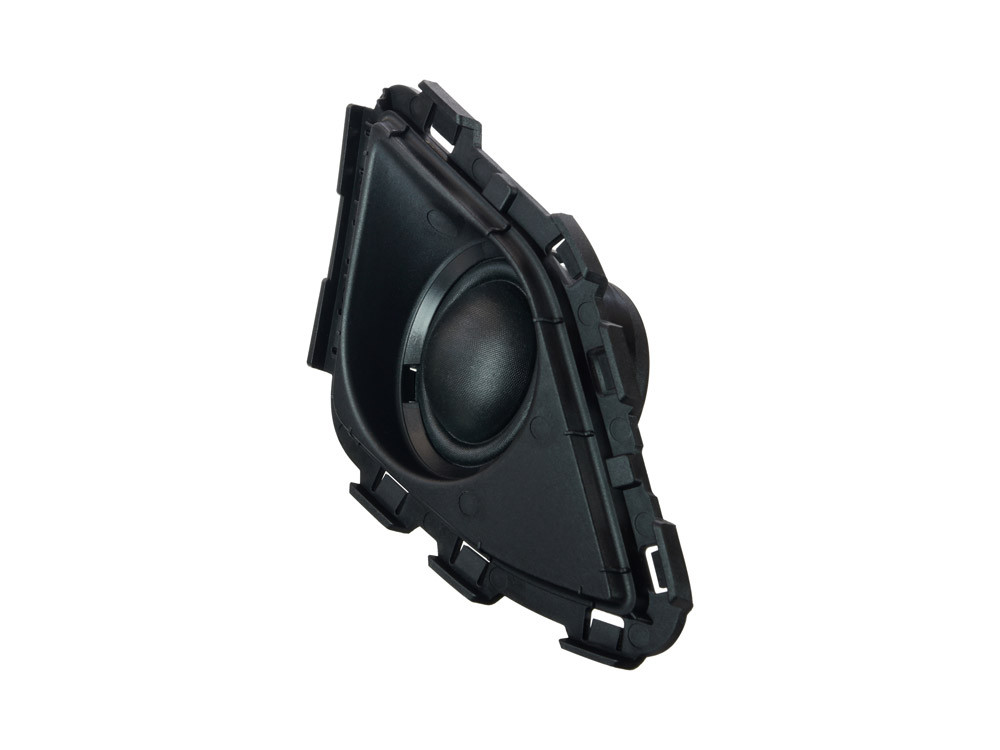

• Acoustically optimized tweeter installation brackets
• Integrate speaker network with foil condenser

SPECIFICATIONS

• Peak Power Handling: 180 Watts
• RMS Power Handling: 60 Watts

General

• Frequency response: 45Hz – 25kHz
• Impedance: 4 Ohms
• Sensitivity: 89dB 1W/m

Notes:

• Some VW T6 SG vehicles may not have tweeters installed ex works. In this case, appropriate A-pillar covers and separate cables are required to connect the tweeters
• Not suitable for vehicle with PR-No.: 8AA
