Digital Music Interface USB SD Mini ISO for Audi, VW, Seat, Skoda
Code: 36527

Digital Music Interface USB SD Mini ISO for Audi, VW, Seat, Skoda

Availability: 1 day
Stock: 5 pcs
Manufacturer: Kufatec
Price without VAT: 46.42 €
Price: 56.17 €
Weight: 220 g
Quantity:


  • Music Interface to input audio signals to factory Volkswagen, Audi, Seat, Skoda head units
  • Truly remarkable sound clarity by using the original CD-Changer connection
  • Retrofitting also possible for already factory fitted CD-Changer
  • Easy installation with factory-correct wiring
  • Suitable for all Radio navigation units with a Mini-ISO connection on the back, for example:
    • Audi Navi Plus (RNS-D), Chorus 2, Concert 1, Concert 2, Symphony 1, Symphony 2
    • VW MFD1, Beetle Alpha, Beetle Gamma, Beetle Gamma CD, Beta 5, Gamma 4, Gamma 5
    • Skoda MS 501, MS502, Navigation 4:3, SatCompass, Symphony CD, Symphony Cartridge
    • Seat Alana, Aura, Aura CD, Elba, Highline, Lena, Liceo, Scala, Soundsystem 2
    • Ford MFD


Features:

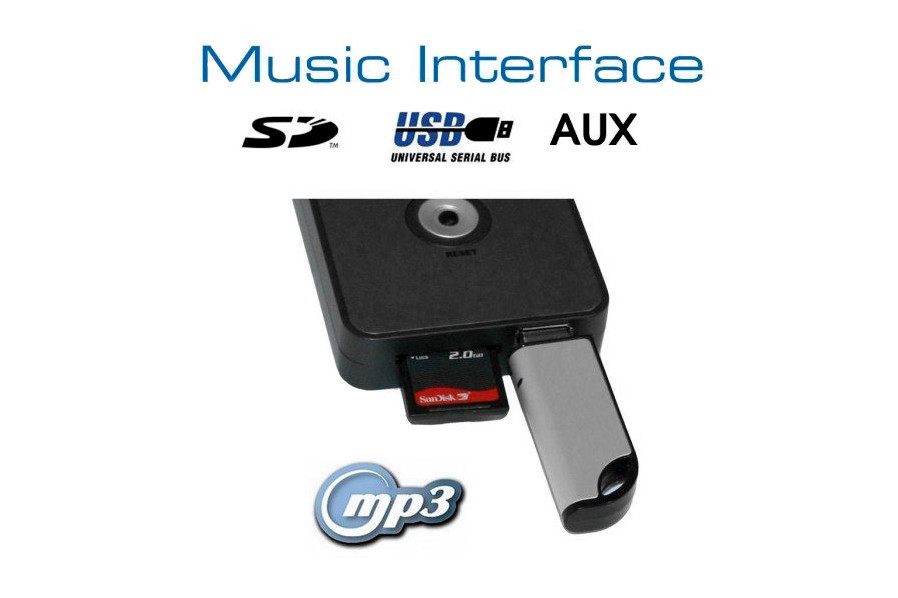

  • Optional connections:
    • SD Card
    • USB (Hard Disk Drive, Flash drive)
    • AUX Input
  • Ability to play both MP3 as well as WMA files.
  • Trackview 1-99 (No display of interpret or trackname)
  • Ability to connect an external audio source like:
    • mp3-Player
    • Portable DVD-Player
    • MiniDisk-Player
    • Notebook
    • iPhone
  • Controlled through your head unit and steering wheel (if installed)
  • Choice of folders as well as files stored on the drive
  • Support of functions as follows:
    • Repeat
    • Last Position Memory
    • Volume
    • Track Selection
  • Dimensions in cm: 10,6 x 6,6 x 1,8

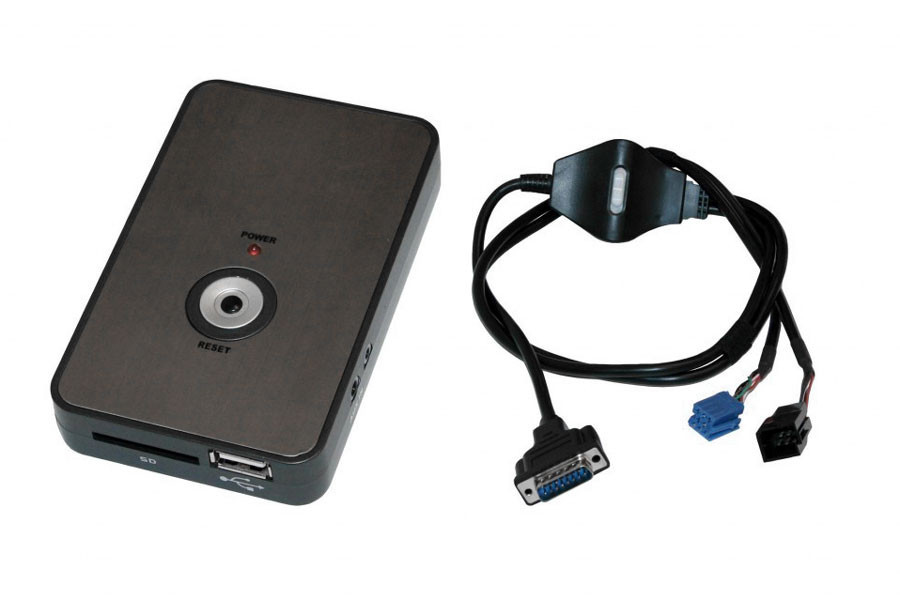

Scope of delivery:

  • Music Interface
  • Wiring (Length 900 mm)
  • Fitting instruction for download


Notes:

  • Max. number of files 6 X 99
  • No control by using the AUX-IN (jack) input
  • No AUX-IN functionallity for Audi RNS-D
  • No iPod control by using the USB connection
  • In some cases you are not able to split the Mini-ISO connection. In that case you will also need Part No. 33687. Please indicate this before placing an order
