Navigation System Premium Infotainment for VW T5 and T6 Version: Radio aperture: angularly

7 respectively 8 inch Premium Infotainment System for Volkswagen T6 & T5 facelift T6 (7 H/E/J) with navigation system, Apple CarPlay and Android Auto support.

Perfect system integration in your VW T6 & T5, paired with the latest features. A particularly large screen (7 inch for item no. 41347-2 / 8 inch for item no. 41347-3), extensive media options such as Apple CarPlay and Android Auto compatibility, and iGo Primo Nextgen navigation with TomTom retrofit cards. In addition, the online navigation of Apple Car Play or Android Auto can be used. DAB+ digital radio, USB video playback, HDMI connectivity and the latest Bluetooth technology complete the package. With this system you get the best high-end sound quality and optimal sound tuning options.

Compatible vehicles:

• Volkswagen* T5 facelift (7 H/E/J) 09/2009 – 06/2015
• Volkswagen* T6 (7 H/E/Y) 07/2016 –

Parts of the dashboard may need to be changed
* Only suitable for left-hand drive vehicles

Selectable options:

• Version: Radio aperture: rounded corner
• Version: Radio aperture: angularly

In advance, it must be checked on the vehicle what shape the currently installed radio cover/aperture has. Accordingly, the selection is: radio aperture: rounded corners or radio aperture: angularly.

Specifications of the screen:

• Screen size item no. 41347-3: 20 cm (8 inch) capacitive WVGA display
• Screen size item no. 41347-2: 18 cm (7 inch) capacitive WVGA display

• LCD Type: Transparent Type TN LCD
• Working System: TFT active matrix
• Number of pixels: 1,152,000 pixels (800 x 3 x 480)
• Lighting system: white LED backlight
• Effective number of pixels: 99.99 % or more
• Color System: NTSC, PAL
• Maximum output power 50 W x 4 max.

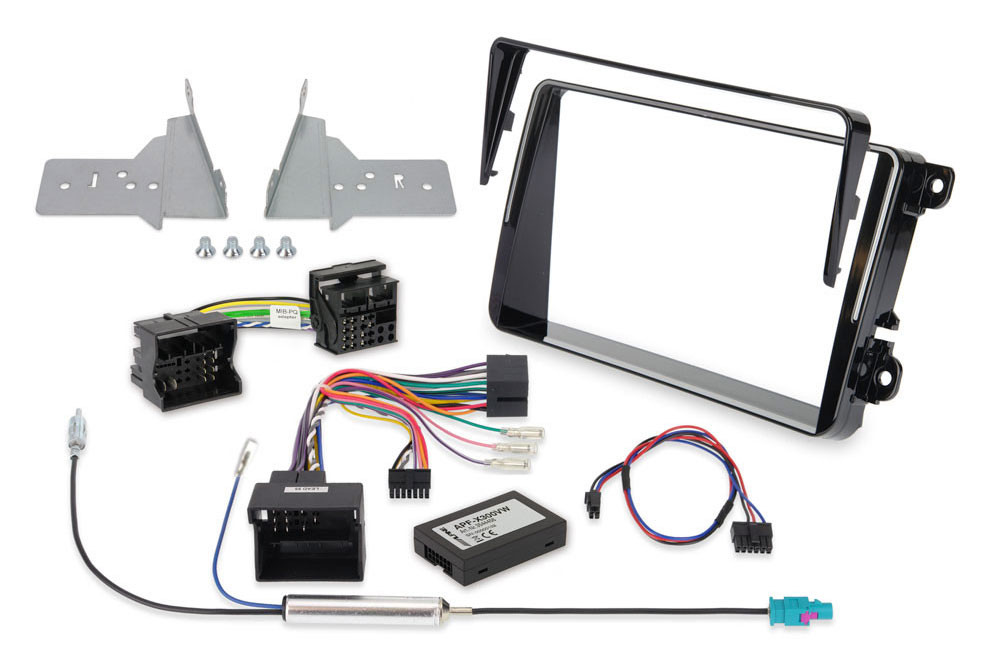

Scope of Delivery:

• complete installation kit incl. both adapters for Quadlock (VW T5) and Power Quadlock (VW T6 => MIB 2)

Fast iGo Primo NextGen navigation
The iGo Primo NextGen navigation software is currently one of the best on the market. In combination with the high computing power of the Alpine Hardware, you get a high-precision and fast navigation system for your vehicle. For example, it takes only a few seconds to calculate a route from Munich to Paris. The system is packed with many useful and unique navigation features: intuitive address input with auto-completion, TMC route guidance, 3D icons and more. It also contains thousands of POIs, so restaurants and any kind of public places in your area can be found quickly.

Support of the steering wheel remote control
The Alpine system communicates perfectly with the multifunction steering wheel of your vehicle. This means that if you upgrade to the Alpine system, you won't lose this handy feature. You have control over volume, telephone (answer / hang up), track search forwards / backwards and other functions. And when a smartphone is connected to the system, you can even activate voice control such as "Siri" via the steering wheel.

Preservation of the visual representation of parking sensors
If your vehicle is equipped with original parking sensors, this functionality is also retained when upgrading to the Alpine system. The parking sensor system is connected to the Alpine display to clearly show obstacles when parking the vehicle. The current generation of Alpine navigation devices has a parking sensor display with a significantly improved detailed view.

Works with Apple CarPlay
Use your iPhone while driving without having to pick it up. With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music, and hear messages with just a single word or a touch of a button. You can enjoy Spotify, Internet radio or podcasts while remaining fully focused on the road. Simply connect your CarPlay-enabled iPhone to the USB port of your Alpine system and all functions are immediately available to you.

Works with Android Auto
Android Auto was designed especially for more road safety. With a simple and intuitive user interface, integrated steering wheel control and a new powerful voice control system, it is able to minimize distraction so you can continue to focus on driving. Android Auto automatically brings you useful information and easily organizes the best map views when needed.

Voice control SIRI and OK Google
Pressing the VOICE button on the front of the device or on the steering wheel buttons (if present) activates the voice control of SIRI or OK Google. Keep your hands on the wheel and make it easy to call friends, enter navigation destinations, dictate and send messages, or simply name the song or playlist you want to hear.

DAB / DAB+ Digital Radio
Radio reception with outstanding digital sound quality - that's what the integrated 1.5-channel DAB + tuner stands for. It always gives you an accurate, transparent sound. For uninterrupted reception, the tuner offers DAB + to DAB + Service Following, SLS (program-accompanying text information), Radio VIS (station cover on your radio display) and other helpful information. If there is no DAB + signal available, the unit automatically switches between DAB + and FM mode.

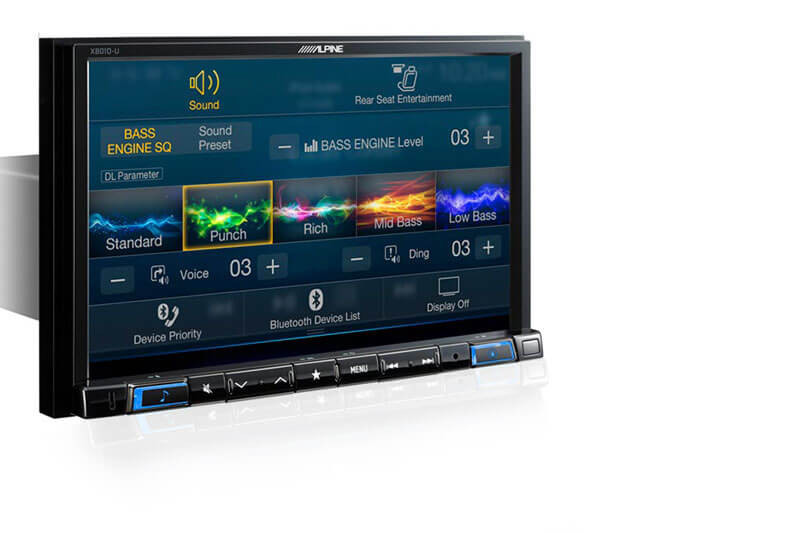

Optimal sound settings and connection options
The infotainment system provides the most advanced sound processing for superb bass and music reproduction in your vehicle with BASS ENGINE SQ. In addition, individual sound tuning functions, such as time correction and a dual HD EQ are available. As a highlight for optimal sound adjustment, you can use the practical Alpine TuneIt app for smartphones. A 24-bit D / A converter and 4-volt pre-amp outputs complete a perfect sound reproduction.

Equipment:

General:

• Output power: Max. Power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• White LED backlight
• 50/50 split screen: left / right position changeable
• Touch screen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamp: 3 PreOuts (4V, Front / Rear / Subwoofer)
• AUX-In: 1x A / V input (3.5 mm jack connection)
• Suitable for steering wheel remote control
• Preparation for infrared remote control
• Navigation Mix Announcement
• Direct camera connection & built-in multi-view camera control *
• Rear view camera with instant start function (immediate display of rear view camera at system start) *
• Simple Mode & Info Mode Display
• Visual EQ
• Live contrast adjustment
• Menu language: 24 languages (for AV & Bluetooth), 29 languages (navigation menu and voice prompts)
• time of day
• Automatic dimmer
• Anti-theft device with numeric code
• Firmware updateable
• Remote turn-on
• HDMI input and output (special Alpine HDMI connection cable required)

Tuner:

• Station memory: FM: 24 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

BLUETOOTH®

• Integrated BLUETOOTH® module
• Wideband Speech Technology
• Speakerphone: HFP (Hands Free Profile) compatible
• Music Streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music Streaming control: AVRCP (Audio / Video Remote Control Profile) Version 1.5 compatible
• Advanced BLUETOOTH® technology
• Connection: SSP (Secure Simple Pairing) support
• Custom Profile link: speakerphone and music streaming
• Phonebook: Automatic phonebook transfer
• One-touch keys: 4 presets per phone
• Application of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name Display
• Automatic answer
• Call list: dialed / received calls / missed calls
• Redial function
• Voice volume adjustment: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display the GSM signal strength
• Displays the battery charge
• Menu Language: 24 menu languages
• firmware updatable
• microphone included

Made for iPod® / iPhone®
Compatible with iPod / iPhone / iTouch: Made for iPod Touch 6th / 5th Gen, iPod nano 7th Gen, iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s

• Connection: KCU-461iV / KCU-471i required (optional)
• Music & Video playback compatible with KCU-461iV
• Possible choices: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Alphabetical search
• Album cover ad
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• repeat
• charging function

Navigation function

• Maps: 48 countries (Western and Eastern Europe)
• Menu languages: 29 languages
• Voice guidance in 29 languages, 15 languages for text-to-speech (TTS)
• Advanced Address Search
• Zip code search
• Free Search
• Search with word fragments
• Extended POI functions
• Smart routes: use of historical traffic data
• Fast route calculation
• Extended route planning
• ECO routing
• 7 alternative routes to choose from
• Extended TMC mode
• Map display: 2D top view, 2D north orientation, 3D
• 3D city maps: 3D building views
• Display of height profiles
• 3D motorway junctions: 3D display of motorway junctions
• lane Guidance
• Tunnel mode
• Motorway mode
• Navi Mix mode
• Text-to-Speech
• Direct dialing by phone from POI data
• Hybrid GPS sensor: GPS, gyrosensor, car speed pulse

Sound tuning

• BASS ENGINE ™ Pro
• BASS ENGINE ™ SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 4V preamp output
• Equalizer: Flat, Pop, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-Band Parametric Equalizer (Front / Rear Separated))
• 6-channel time correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" readout

Map update

• Online map updates via alpine.naviextras.com
• TomTom map data
• 3 years free map update

Note:

• only for left-hand drive vehicles
• * Factory-installed reversing cameras must be connected with a corresponding adapter set (see accessories)
• DAB+ antenna 39713 is additionally required
