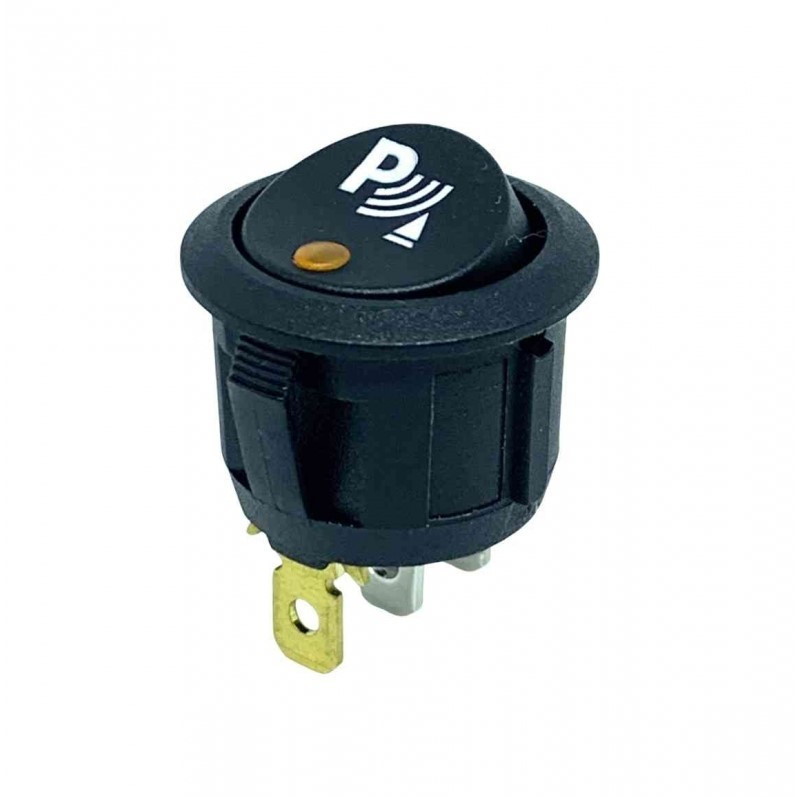

Parking switch, 1x ON/OFF, orange/yellow LED (12-24 Volt DC)

• Round rocker switch with Parking label, 1x ON/OFF switch with orange/yellow 12-24 Volt DC indicator LED in snap-in design
• TECHNICAL DATA
• LED color: orange/yellow
• LED voltage range: 12-24 Volt DC
• Operating voltage max.: 12V-24 DC
• Maximum switching current: 20A/12V DC, 10A/24V DC
• Maximum switching current for inductive load: 4A
• Maximum ambient temperature: 85°C
• Insulation resistance (500V DC): >100MOhm
• Body and rocker: Nylon 6.6/UL94V2
• Terminals: silver-plated
• Plug connections: 4.8x0.8mm
• Panel cutout: 20.2mm
• Installation depth: 24.3mm
• Outer diameter: 23.5mm
• Quantity: 1 piece

Scope of delivery:

• Switch
