Automatic headlight range control for VW Passat B8, CB Equipment: LED, adaptive headlight, front wheel drive, Model year: Up to model year 2019

• Complete set for retrofitting an automatic headlight range control for VW Passat B8, CB
• The automatic headlight range control automatically regulates the angle of inclination for all loading conditions, in order to create a constant headlamp range and not to dazzle oncoming traffic
• Only suitable for original LED headlights
• Required adapters are included
• After installation, automatic headlamp leveling must be adjusted to the vehicle using diagnostic software

Selectable options:

• LED, front wheel drive, to year 2019
• LED, 4motion, to year 2019
• LED, electr. damper control, to year 2019
• LED, cornering light, front-wheel drive, to year 2019
• LED, cornering light, 4motion, to year 2019
• LED, cornering light, electr. damper control, to year 2019
• LED, cornering light, front-wheel drive, from year 2020
• LED, cornering light, 4motion, from year 2020
• LED, cornering light, electr. damper control, from year 2020

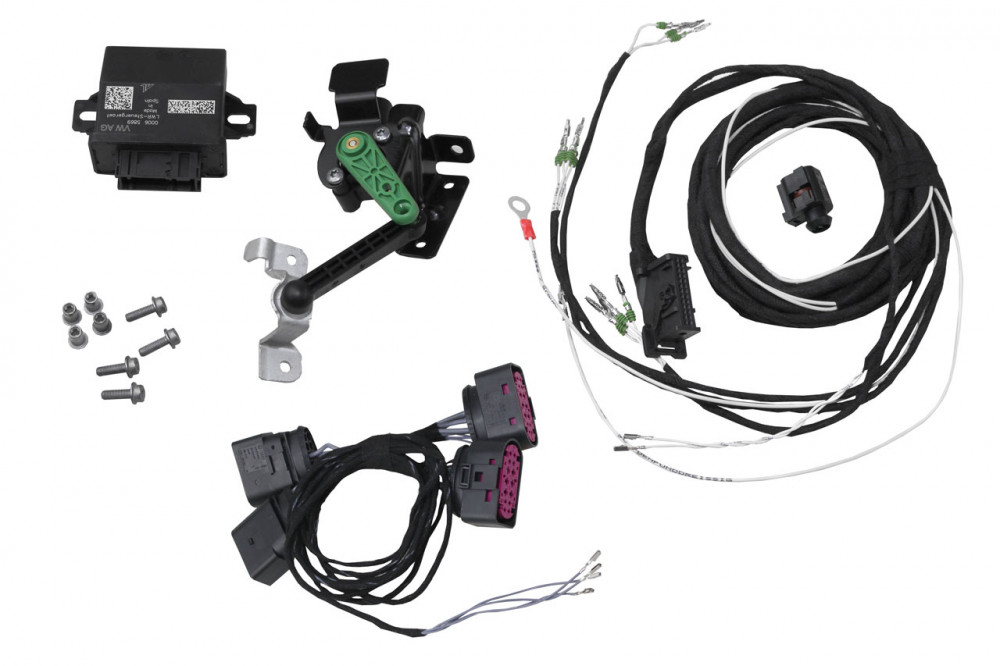

Scope of Delivery:

• cableset
• adapter
• control unit
• linkage, holder, sensor (not with damper control)

Note:

• Headlights are only supported by headlamps with LED daytime running lights (DTL)
• Check the compatibility of the Can Gateway and the on-board control unit and, if necessary, replace it with the Highline version
• After installation, the vehicle must be connected to the diagnostic dongle 42205
• The legislator compulsorily prescribes automatic headlamp leveling if the light source of a headlight exceeds a nominal luminous flux of 2000 lumens. This is the case with most xenon and LED headlamps
