Active Lane Assist for Audi Q5 8R

• Complete set to retrofit Audi active lane assist into an Audi Q5 8R
• The Active Lane Assist helps the driver to maintain the lane
• It intervenes by apply a gentle steering correction and soft steering vibrations before you leave the lane
• The steering time (early/late) and the steering wheel vibration are adjustable at the radio / MMI
• Area of operation 60–250 km/h

Scope of delivery:

• Wiring set

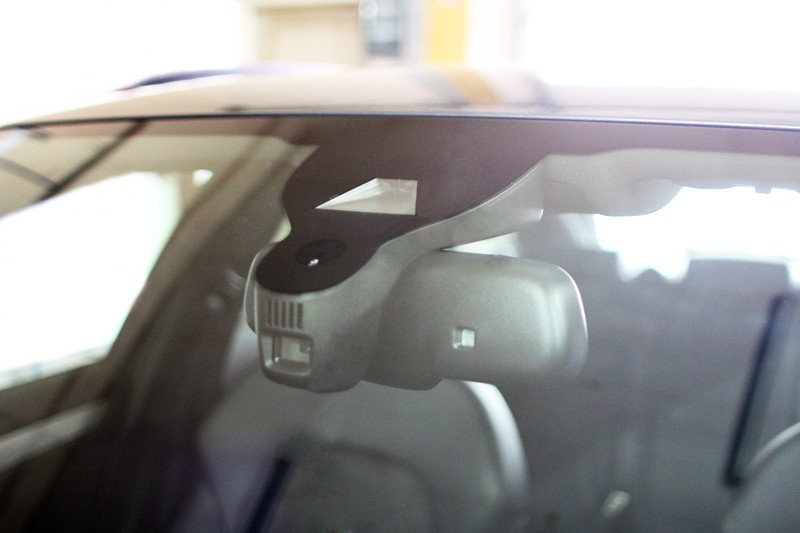

• Front Camera + Cover

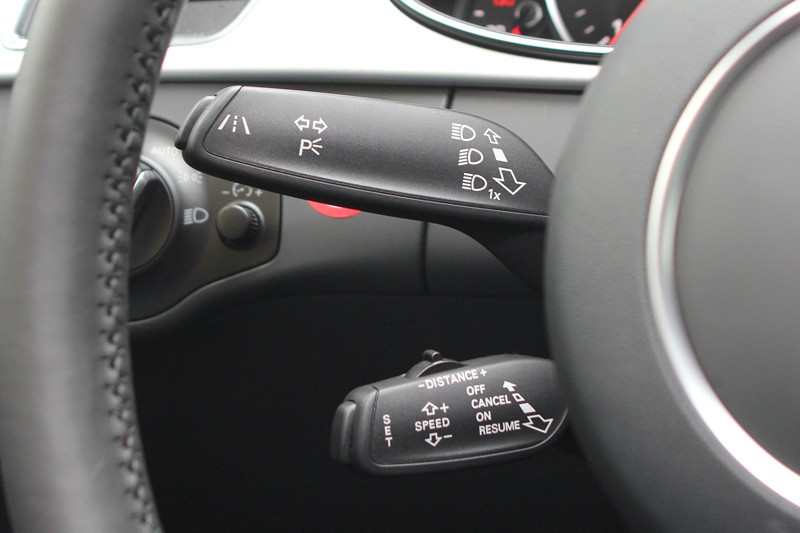

• Steering column switch

Note:

• Only suitable for vehicles from 2013 model year
• Not suitable for vehicles with Radio Chorus (PR-No.: 8UC or 8UL)
• For this retrofit the windscreen need to be replaced (not included)
• Checking compatibility Can the Gateway as well as steering wheel control module and replace if necessary against Highline variant
• Vehicles with PR.No. 8N1 the rain/light sensor need to be retrofitted in addition
• The delivered hardware partly comes from test vehicles and went through a comprehensive functional test. The software is up to date
• After the installation you need to code the vehicle
