Navigation System Premium Infotainment for Audi Q5

7-inch premium second-generation infotainment system for Audi Q5 with navigation system, Apple CarPlay and Android Auto support.

The built-in iGo nextgen navigation system offers 3 years of free map updates and is now compatible with the Driver Information Display (FIS) to indicate turn-by-turn directions. All system components are designed to fit perfectly into existing installation locations and be fully integrated with the vehicle's electronic systems. The infotainment system is compatible with original Radio Chorus, Concert or Symphony vehicles.

Compatible Vehicles (only left hand drive):

• Audi Q5 8R*

* not for vehicles with navigation (PR-No.: 7T2 or 7T6)


Scope of delivery Complete kit:

• You will receive all necessary parts for the installation of the navigation system

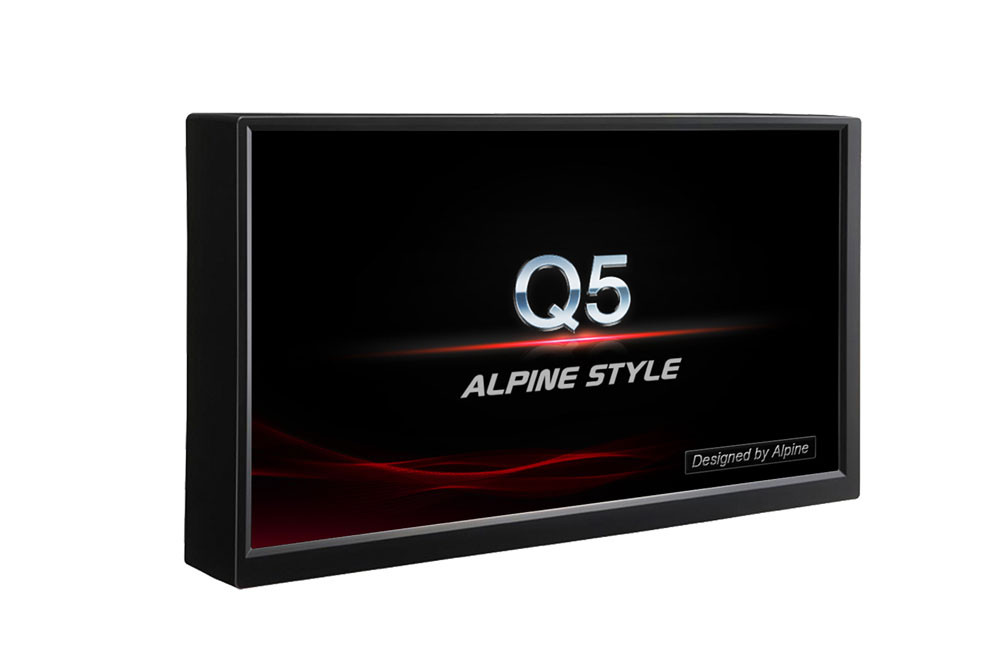

High-resolution capacitive touchscreen display
The 17.8 cm touch-screen display with pin-sharp resolution allows the system to be fully operated via finger-slide and has the latest video technology for outstanding image quality, contrast and image resolution. It displays navigation maps with stunning details and turns movies or video clips into a real movie experience. The user interface via the capacitive display is intuitive and designed so that you feel comfortable from the first minute. You will quickly appreciate the ease of use and ease of use of touch screen operation.

Screen entertainment
With the Alpine system you can enjoy movies, music videos or TV programs from many different sources, such as USB, DVDs with the optional optical drive, the latest smartphones with HDMI output or portable video devices (optional cables or adapters are required) , Even video content from the iPhone can be viewed on the high-resolution 18 cm display in perfect quality. For your own safety, video playback is only possible in park mode.

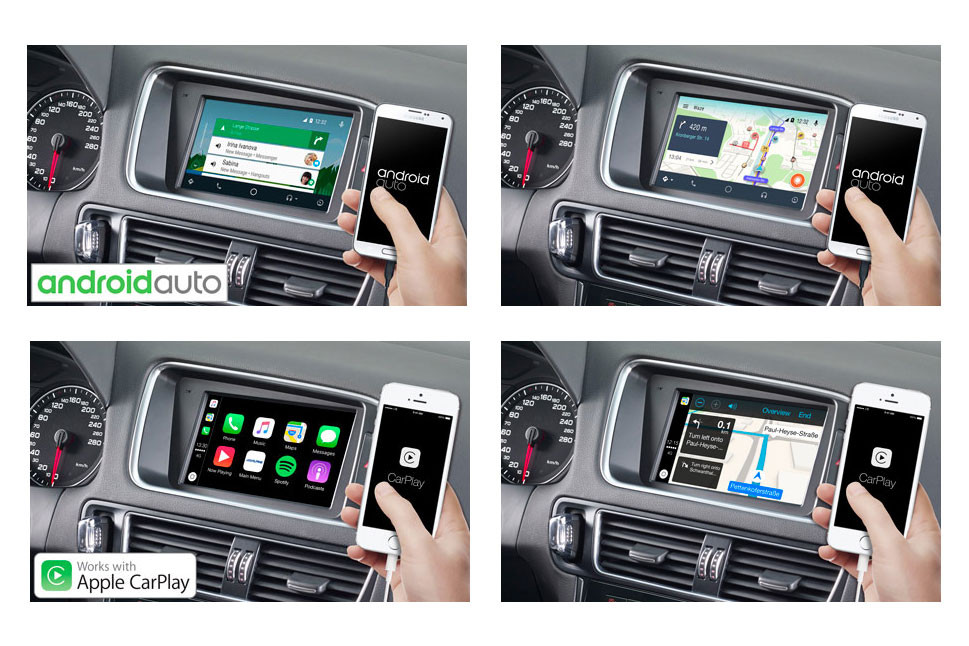

Apple CarPlay
Apple CarPlay gives you the power to use your iPhone while driving without having to touch it. With Apple CarPlay, iPhone users have an intuitive solution on board, making phone calls, using cards, listening to music, and sharing messages with just a single word or a touch of a button. You can enjoy Spotify, Internet radio or podcasts while still focusing on the road. Simply connect your CarPlay-enabled iPhone to the USB port of your Alpine system and all functions are immediately available to you.

Android Car
Android Auto was designed especially for more road safety. With a simple and intuitive interface, integrated steering wheel control and a powerful new voice control is to minimize the distraction able to follow the road so that you can continue to focus. Android Auto automatically brings you useful information and easily organizes the best map views when needed.

Spotify
You can launch the Spotify app via Apple CarPlay and Android Auto and enjoy online music on your Alpine. You can fully control the app via your 7 inch touchscreen. The app works with Spotify's standard and premium accounts, but offers different control options depending on the app variant.

DAB / DAB+ Digital Radio
Radio reception with outstanding digital sound quality - that's what the integrated 1.5-channel DAB + tuner stands for, with its outstanding reception technology. It always gives you an extremely accurate, transparent sound. For uninterrupted reception of DAB tuner offers + DAB + service Following, SLS (program associated text information), radio VIS (transmitter cover on your radio display) and other useful information. If there is no DAB + signal available, the unit automatically switches between DAB + and FM mode.

More functions:

• Integrated Bluetooth® technology
• Alpine-control element
• Support of the multifunction steering wheel
• Ads in the driver information system (FIS)
• Parrk assistant technology
• Vehicle settings and warning message in the main display

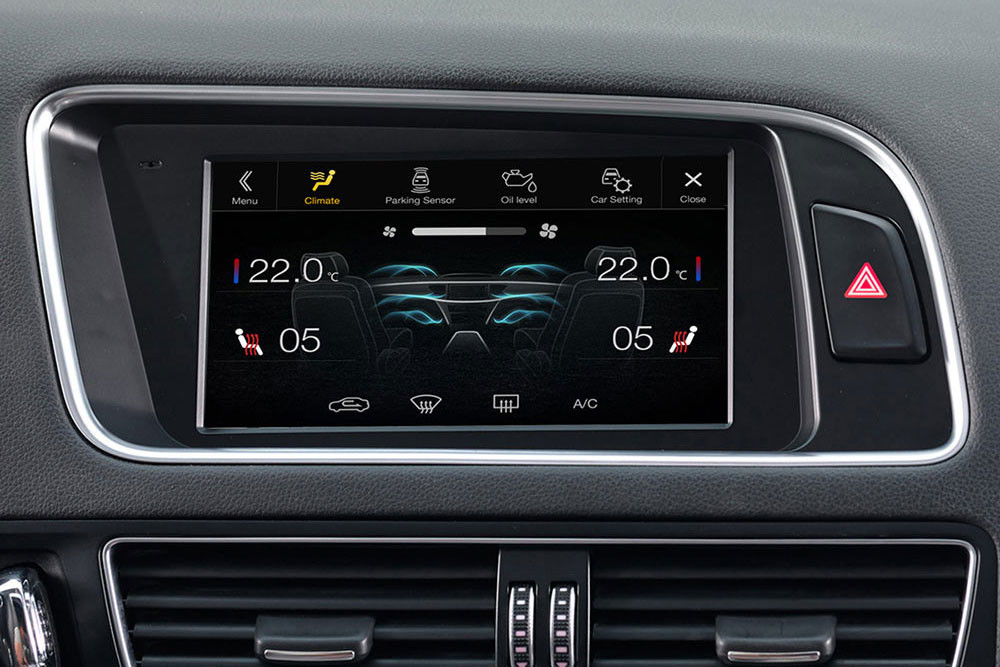

• Parking sensor display, air conditioning and heating settings, seat heating settings and much more

Premium sound quality
Alpine has an excellent reputation for excellent sound quality and the Alpine system also shows why. Not only are all electronic components of the highest quality - the entire system has been optimally tuned to your Audi by Alpine audio engineers. For those who would like to perform their own sound tuning, there are numerous adjustment options available. These can even be set via the special Alpine TuneIt app very easily via smartphone.

Fast iGo NextGen navigation
The iGo NextGen navigation software is currently one of the best on the market. In combination with the high computing power of the Alpine Hardware, you get a high-precision and super-fast navigation system for your vehicle. For example, the calculation of a route from Munich to Paris takes only a few seconds. The system is packed with many useful and unique navigation features: intuitive address input with auto-completion, TMC route guidance, 3D icons and more. It also contains thousands of POIs, so restaurants and any kind of public places in your area can be found quickly.

• Extensive map database of 48 European countries
• Ticket updates can be purchased online anytime at alpine.naviextras.com.
• Updates can be purchased specifically by country and region. This saves costs through targeted updating.
• Postal code entry for address search (for the United Kingdom 7 digits)
• Smart routes: The system stores past traffic situations and uses this information to determine the best route depending on the time of day and the day of the week.
• High-resolution TomTom map material

Accessories / optional extensions:

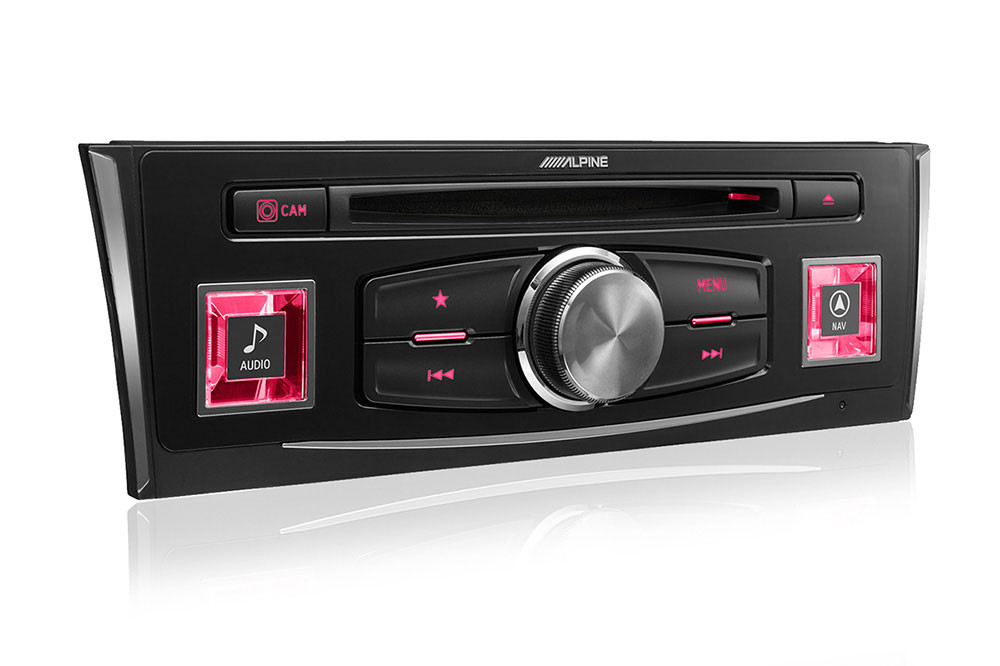

Optional CD / DVD Player
Upgrade your Alpine infotainment system with DVD and CD playback capability. The DVD player can be installed behind the audio control panel and is so easily accessible from the driver seat. The player is featuring HDMI technology by stunning picture quality and can be controlled via the touch screen. All parts required for installation are included. Item number: 41342

Equipment:

Tuner

• Station memory: FM: 24 / MW: 6 / LW: 6
• Memory: Auto Memory Entry
• Search function: Manual / Local / DX Selection
• Station name display
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB + tuner

• Integrated DAB+ tuner
• DAB+ / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB+ to DAB+ service Following
• FM-Linking (automatic DAB+ / FM switch (when signal available))
• Channel memory: 18 Station presets
• Auto Ensemble / Service Storage
• Alphabetical transmitter search
• service search
• PTY search
• Phantom power for DAB antenna selectable (on / off)

BLUETOOTH®

• Integrated BLUETOOTH® module
• Wideband Speech Technology
• Speakerphone: HFP (Hands Free Profile)
• Music Streaming: A2DP (Advanced Audio Distribution Profile)
• Music Streaming control: AVRCP (Audio / Video Remote Control Profile) Version 1.5
• Advanced BLUETOOTH® technology
• Connection: SSP (Secure Simple Pairing) support
• Custom Profile link: speakerphone and music streaming
• Phonebook: Automatic phonebook transfer
• One-touch keys: 4 presets per phone
• Application of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name Display
• Automatic answer
• Call list: dialed / received calls / missed calls
• Redial function
• Voice volume adjustment: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display the GSM signal strength
• Displays the battery charge
• Menu Language: 24 menu languages
• Firmware upgradeable
• microphone included

Made for iPod® / iPhone®

• Compatible with iPod / iPhone / iTouch: Made for iPod Touch 6th / 5th Gen, iPod nano 7th Gen, iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection: KCU-471i required (optional)
• Possible choices: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Alphabetical search
• Album cover ad
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• repeat
• charging

USB port

• USB port on the back (2 m USB extension cable included)
• Music and video playback
• Formats: FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV playback
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Shuffle
• repeat

Sound tuning

• BASS ENGINE ™ Pro
• BASS ENGINE ™ SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 2 V preamp output (connection cable KTX-PRE1 optional)
• Equalizer: Flat, Pop, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-Band Parametric Equalizer (Front / Rear Separated))
• 6-channel time correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" readout

General

• Output power: Max. Power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 18 cm (7-inch) capacitive WVGA High Resolution Display
• White LED backlight
• 50/50 split screen: left / right position changeable
• Touch screen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamp: 3 PreOuts (2 V, front / rear / subwoofer) (connection cable KTX-PRE1 optional)
• AUX-In: 1x A / V input (3.5 mm jack connection)
• Remote connection
• OEM sub-display function
• Preparation for infrared remote control
• Navigation Mix Announcement
• Direct camera connection & built-in multi-view camera control
• Camera connection with pre-set distance markers
• Rear view camera with instant start function (immediate display of rear view camera at system start)
• Camera extension box KCX-C250MC Ready
• Simple Mode & Info Mode Display
• Visual EQ
• Live contrast adjustment
• Menu language: 24 languages (for AV & Bluetooth), 29 languages (navigation menu and voice prompts)
• time of day
• Automatic dimmer
• Anti-theft device with numeric code
• Firmware upgradable
• Connection for original Octavia 3 hands-free microphone
• Remote turn-on
• HDMI input and output (special Alpine HDMI connection cable required)

Map update

• Online map updates via alpine.naviextras.com
• TomTom map data
• 3 years free map update

Note:

• only for left hand drive
• for cars with B&O soundsystem (pr-no.: 9vk) article 41334 is required
