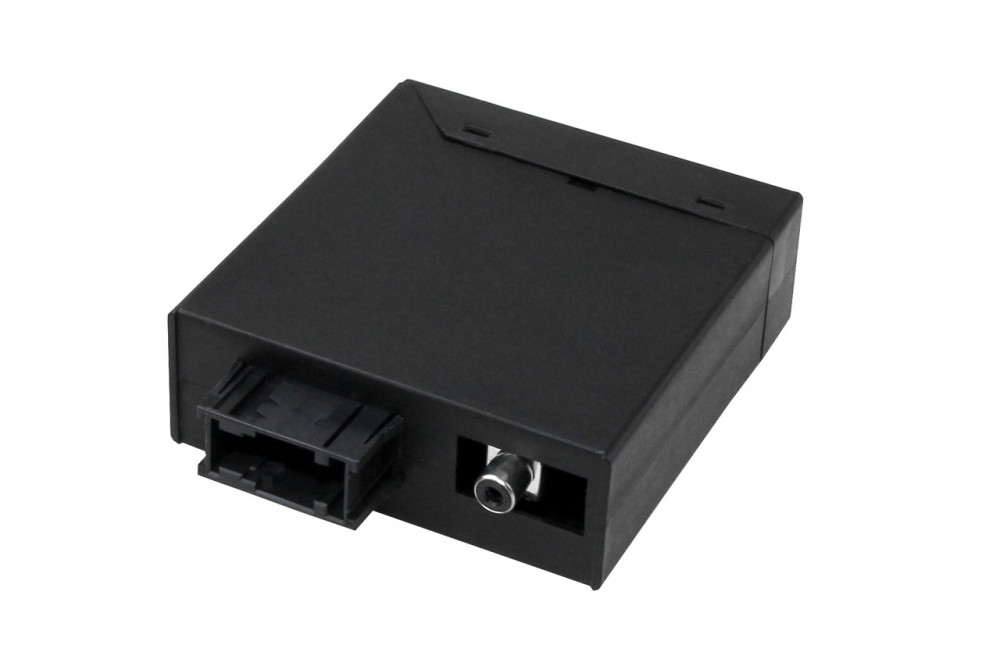

- Rear view camera interface for retrofitting a universal reversing camera (NTSC) for Audi / Volkswagen without cable set
- There is no need to install additional monitors!
- Significantly simplified orientation when maneuvering or parking
- Suitable for the following navigation units:
- Volkswagen MFD 2 / RNS 2
- Volkswagen RNS 510
- Volkswagen RNS 315
- Skoda Columbus (identical to RNS 510)
- Skoda Amundsen+ (identical to RNS 315)
- Skoda Nexus 16:9
- Audi RNS E (A3 8P, A3 8PA, A3 Cabriolet, A4 8E, TT 8J)
- Audi RNS E (R8)
- Seat Navigation 16:9
- Lamborghini Gallardo
- NOTE: Not suitable for Audi vehicles with RNS-E from model year 2010 (part number ... ... 193)
- NOTE VW T5 GP (from 2010): On vehicles with OPS REAR (optical rear parking aid) the OPS function is eliminated - no restriction for vehicles with OPS REAR and FRONT
- No display (overlay) of auxiliary lines and fields on the navigation screen
- Easy commissioning due to automatic recognition of the connected navigation unit
- Independent configuration of the communication processes between interface and navigation unit
- Automatic switching to the rear view camera when engaging reverse gear*
- The video cable from the camera to the interface is included with the camera
Technical data interface:
- Power supply: 12 volts (10-15 volts)
- Current consumption: 170-190 mA
- Quiescent current: 4-6 mA
- Dimensions in mm: 99 x 96.5 x 23
- Certificated: E13 10R-02-9578
Scope of Delivery:
- 1x rear view camera interface
Note:
- Only in conjunction with an NTSC camera
- *In the case of an Audi RNS-E navigation unit, the automatic reversing camera switching is limited to the vehicles A3 8P, A3 8PA, A3 Cabriolet, A4 8E, TT 8J
- When installing an original Audi VW camera, you will also need the harness item no. 36136
- Not suitable for vehicles with factory TV function
