Complete set to retrofit an original rear view camera with existing trailer assist (PR-No.: 8A8, 8A9 or 1D9)
Suitable for the following vehicles:
VW Arteon 3H7
VW Golf BQ1, BV5
VW Passat B8
VW Tiguan AD1, AX1
VW Tiguan Allspace BW2
VW Touran 5T
VW Touareg CR
Integrated camera into the rear grab handle
Showing the rear area on the screen of the navigation
Automatic display switch by rear gear
Much easier orientation due to the guiding lines and fields which are integrated into the video picture and change depending on the steering wheel angle
Two modes are available:
parkingmode 1 (Transverse parking): Useful for parking into a slot which is transverse to the driving direction on for reverse driving into a longer entry
parkingmode 2 (Longitudinal parking): Useful for parking into a slot along the driving direction on a curb
Scope of delivery:

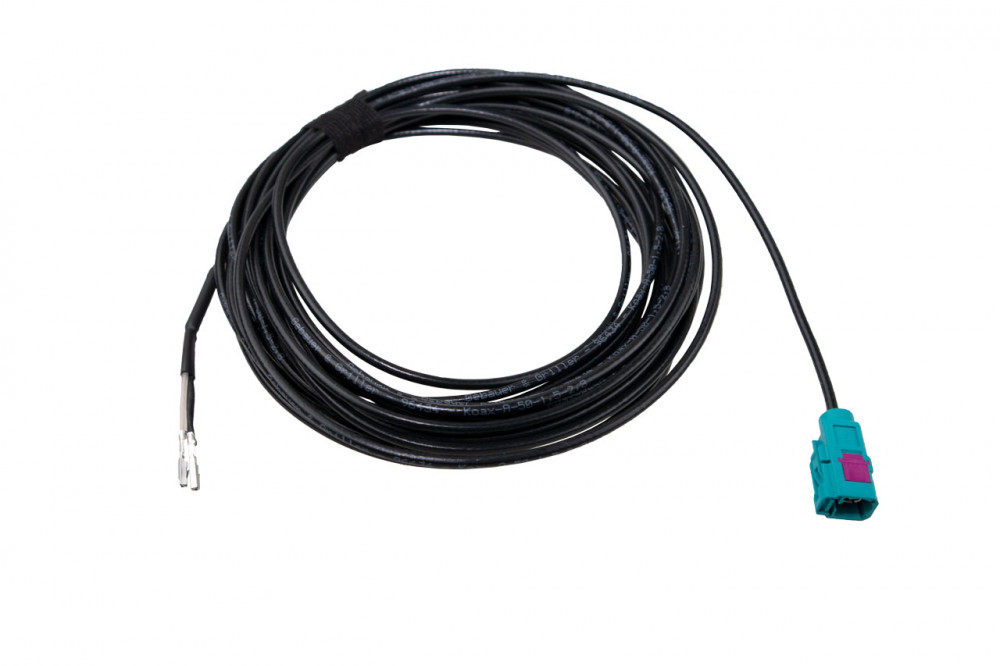

Wiring
Diagnostic dongle
Note:
The built Mainunit must have an entrance for a reversing camera
Mainunits with part number 3Q0035819X and 3Q0035820X have no input for RVC
The available camera is enabled by this article
Additional notices:
If you are unable to complete the commissioning yourself, or if it is an SFD2 vehicle (More information can be found here) for which commissioning is mandatory, we offer an optional one-time remote commissioning service, which can be added via the shopping cart button. This is a one-time service; if coding is lost, for example, due to a software update or other interventions, the commissioning fees will be due again. If no remote diagnostic interface or coding dongle is listed in the scope of delivery of the item, any KUFATEC dongle or our KURDIS KUFATEC remote diagnostic interface article number 70000 is required for commissioning
