Rear View Camera universal interface for Audi, VW, Skoda, Seat Head Unit: Audi RNS E

• Rear view camera interface to retrofit a universal rear view camera (NTSC) for Audi/VW
• The area behind the vehicle will be displayed on the screen of the original head unit
• No installation of an addititional screen is necessary!
• Suitable for original head units as follows:
  • Volkswagen MFD 2 / RNS 2
  • Volkswagen RNS 510
  • Volkswagen RNS 315
  • Skoda Columbus (identical RNS 510)
  • Skoda Amundsen+ (identical RNS 315)
  • Audi RNS E (A3 8P, A3 8PA, A3 Cabriolet, A4 8E,TT 8J)
  • Audi RNS E (R8)
  • Skoda Nexus 16:9
  • Seat Navigation 16:9
  • Lamborghini Gallardo
• NOTE: Regarding Audi vehicles not suitable for RNS-E head unit from 2010 model year (part number ... ... 193)
• NOTE VW T5 GP (from 2010):  For vehicles with OPS on the BACK (optical parking system on the back) the OPS function get lost - no limitations for vehicles with OPS on the BACK and FRONT
• No display of guiding lines and fields on the screen of the head unit
• Easy installation due to automatic head unit detection
• Auto switch to rear view cam by choosing the rear gear*

Specifications - Interface:

• Power supply: 12 Volt (10-15 Volt)
• Power input: 170-190 mA
• Standby current: 4-6 mA
• Dimensions in mm: 99 x 96.5 x 23
• Certification: E13 10R-02-9578

Selectable options:

• VW MFD 2 / RNS 2
• VW RNS 510 / RNS 315
• Audi RNS E

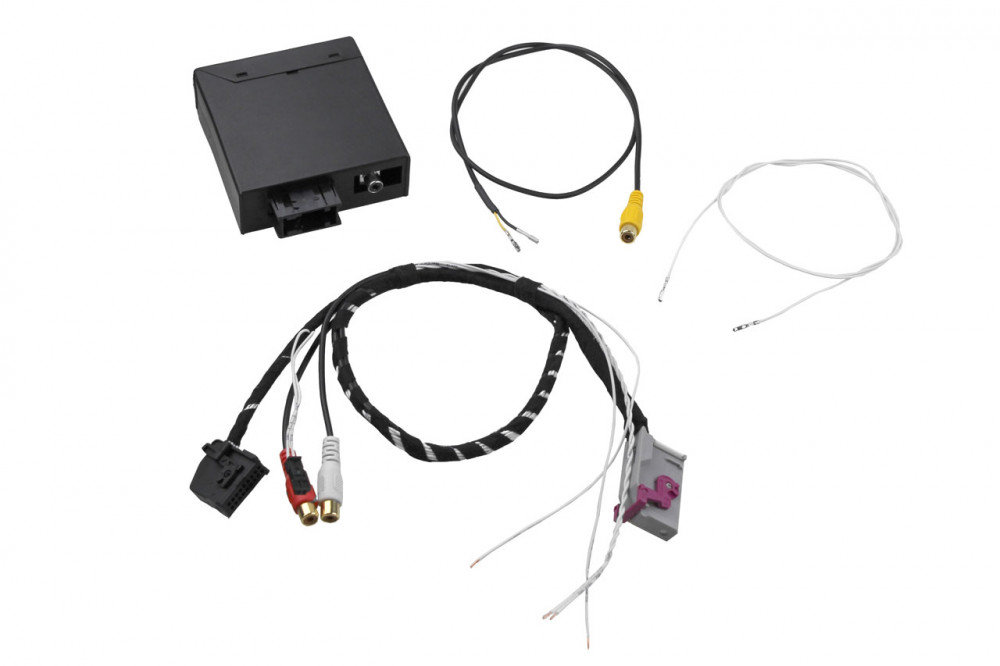

Scope of delivery:

• RVC Interface
• Wiring
• Video loom
• Auto switch loom (only for Audi A3 8P, A4 8E, TT 8J RNS-E / VW MFD 2, RNS 2)

Notes:

• Only suitable for an NTSC camera
• * In case of headunit RNS-E the auto switch is limited to Audi A3 8P, A38PA, A3 Cabriolet, A4 8E, TT 8J
• To retrofit an original Audi or VW camera you will need additional wiring: Part No. 36136
• Not suitable for vehicles with factory fitted TV
