2 22 215 VS4-1RCA video signal switch 4x input / 1x output

VS4-1RCA video signal switch 4x input / 1x output

OE number: 2 22 215

Weight: 0,3kg

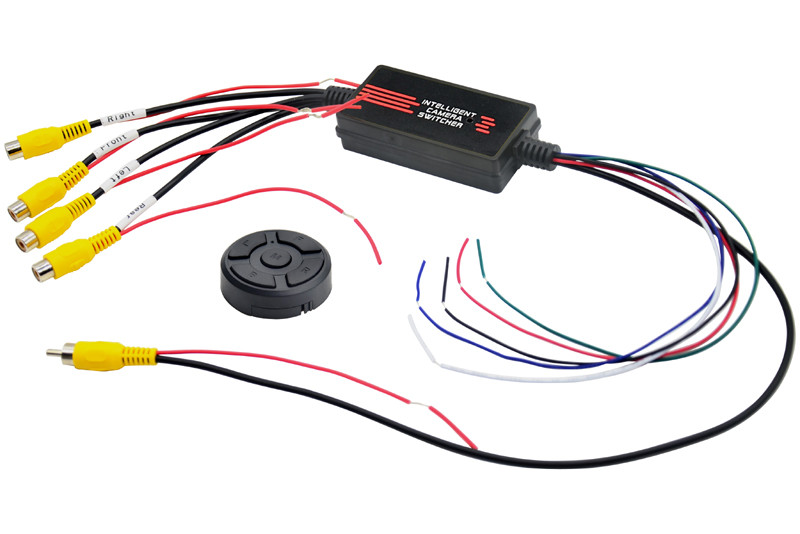

VS4-1RCA video signal switcher with wireless remote control - 4x input / 1x output

Intelligent panoramic switch for parking cameras.
Allows you to connect up to 4 cameras to a monitor or AV unit with one video input for a parking camera.
The individual inputs can be controlled using control wires or a wireless controller.
The image of the rear parking camera is displayed automatically when reverse gear is engaged.
The video signal is transmitted to the monitor without loss of quality.

Function:
- 4x video input for rear parking camera, front camera, side left and right camera. For each video input there is a power supply of the installed camera + 12V, active only on request
to the camera image.
- 1x video output for monitor or AV unit displays the image from each connected camera, if activated.
- The power supply of the individual cameras is activated by a signal from the turn signals (left and right side) or after reverse gear is engaged.
- After reverse gear is disengaged, the power of the front camera is activated for 7 seconds. After this time, the front camera display ends. This function is optional and can be set with the remote control (see below)
- It is also possible to use the remote control to activate individual cameras. In this case, it is not necessary to connect the control wires. The display of images from individual cameras can be turned on manually by pressing the appropriate button on the remote control. In this case, it is necessary to press the “M” button on the remote control to turn off the display.
