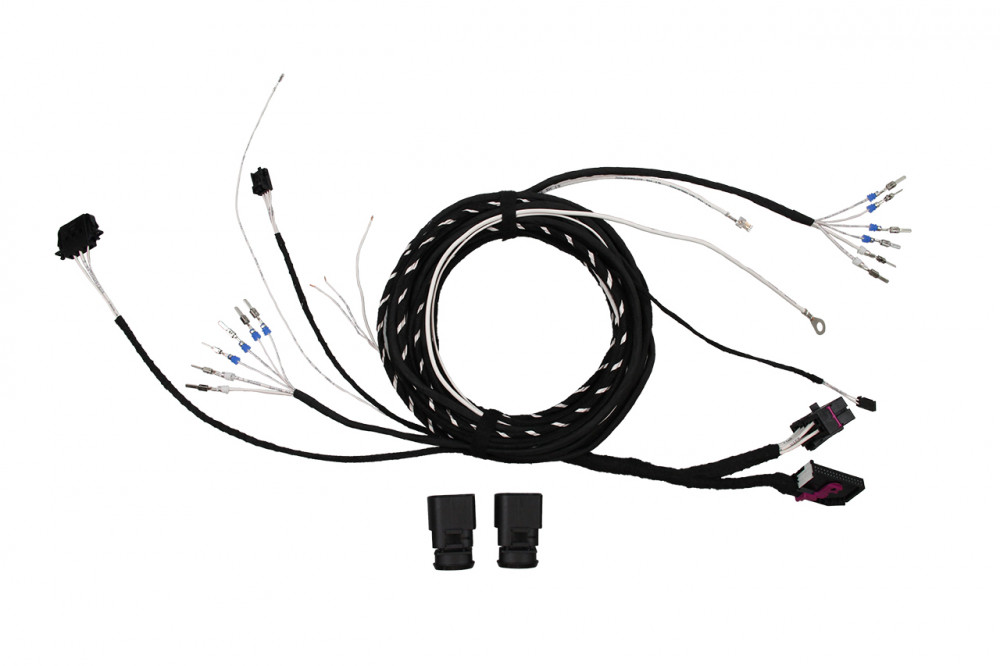

Specific cable set for retrofitting the original electric tailgate for VW T6.1 SH
operate the tailgate easily by:
Standard radio remote control (open)
Button on the tailgate (open and close)
Button in the driver's door (open), if available or retrofitted
Scope of Delivery:
Specific cable set
Note:
For this retrofit, the tailgate must be replaced
not suitable for California model (Camper)
for complete retrofitting additional parts are required. In the following you will find a list of required parts, which should serve as a reference.We do not guarantee the accuracy or completeness.In any case, it must be checked based on the chassis number which parts are required in your case:
Tailgate: 7E5827025F
Folding hinge left: 7E5827301A
Folding hinge right: 7E5827302A
2x ball stud: 7E5827439
2x Damper incl. Engine: 7E5827851D
Bearing block left: 7E5827435B
Bearing block right: 7E5827436B
4x raised countersunk screw: N10548902
Push button: 3G0959831B
Tailgate control unit: 7LA959107A
Bracket control unit: 7LA959503
Warning buzzer: 8E0919279
Expanding rivets: 7L6868307
Additional notices:
If you are unable to complete the commissioning yourself, or if it is an SFD2 vehicle (More information can be found here) for which commissioning is mandatory, we offer an optional one-time remote commissioning service, which can be added via the shopping cart button. This is a one-time service; if coding is lost, for example, due to a software update or other interventions, the commissioning fees will be due again. If no remote diagnostic interface or coding dongle is listed in the scope of delivery of the item, any KUFATEC dongle or our KURDIS KUFATEC remote diagnostic interface article number 70000 is required for commissioning
