43510-1 Complete kit side assist for VW Touareg CR

Complete set for retrofitting the side assist (lane change assistant) for VW Touareg CR

• intelligent technology for monitoring the blind spot and the traffic behind the vehicle
• Warning of approaching or floating vehicles in the detection area
• By radar sensors right and left in the rear bumper monitoring of the area behind or next to the vehicle from a speed of 60 km/h
• the system measures the distance and the speed difference to other vehicles

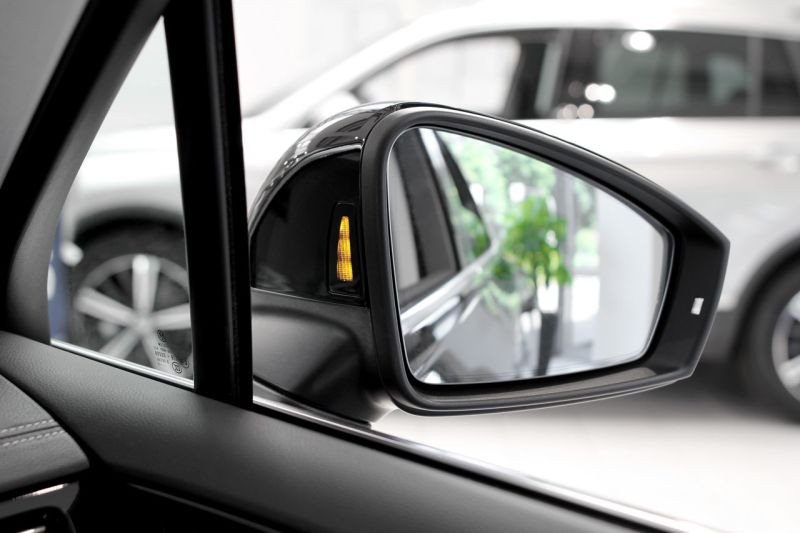

• Indicators in both exterior mirrors warn of critical situations

Selectable Option:

• Version: Left-hand-drive (PR-No.: L0L)
• Version: Right-hand-drive (PR-No.: L0R)

Scope of Delivery:

• cable set
• radar sensors
• holder for sensors
• exterior mirror indicators
• caps for outside mirrors
• coding dongle

Note:

• Only suitable for vehicles with acc (PR-No.: 8T8)
• Component protection of the control parts must be lifted at the VW dealer
• only primed mirror caps are delivered – a painting is still required
• Mirror caps, which are not painted (eg aluminum), must be ordered by yourself
• The hardware can partially come from test vehicles and went through a comprehensive function test. The software is up to date
• Compatibility of the door control units must be checked, there are 2 different hardware versions of the door control units (Lowline "5" - Highline "7") required for "Side Assist" is Highline
• To determine if you have the right door control units, the part number must be read out by diagnostics
• Example part number: XX0 959? 9X + index letter such as A, B, C
• Here is the location of? "Question mark" crucial
• ? = 5 = not compatible - door control unit must be replaced
• ? = 7 = compatible - door control unit must not be replaced
• e.g.: 4M1959793X / 4M159792X are suitable, 4M1959593X / 4M159592X need to be replaced
• In case the ex Factory installed control units are not suitable, you need to use the control units in our "Accessories" area. This ensures that the control unit has correct software and data sets
• Currently, retrofitting vehicles from model year 2024 is not possible
