Apple CarPlay / Android Auto Audi

Wireless Apple CarPlay / Android Car
AUDI with OEM navigation MMI3G

Product description:
Wireless Apple CarPlay / Android Car / Mirror
for AUDI cars with OEM unit and MMI3G control

- The module supports Apple CarPlay wireless connection
- The module allows Android Auto and screen mirroring after cable connection
- Wifi 2.4GB and 5.8GB for stable phone connection
- Bluetooth 5.0
- Supports USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.)
- Input for front and rear parking camera
- supports connection of AHD or CVBS camera (PAL / NTSC)
- Audio and Video input
- Supports PDC (Obstacle Distance Control) functions for OEM parking sensors
- allows to display moving parking guide lines (FPG) for the installed rear parking camera
- allows you to set the lines for the rear camera
- Power supply for the rear parking camera 12V
- Option to activate the front camera display (after disengaging reverse gear or pressing a button on the display)
- OEM controller and touch screen control
- Ability to use an OEM microphone or connect an external microphone
- Integrated PCB module and support for audio equalizer settings
- Adjust the volume for each source separately (navigation / multimedia / hands free call / ringtone / voice assistant
- Automatic brightness switching (day / night) depending on when the lights are on
- Allows you to interrupt the sound with the navigation instructions of the navigation when listening to the OEM car radio
- Allows you to charge the phone
- Allows you to use the voice assistance function
- Possibility to update the module software (SD card)

Suitable for cars:
AUDI A4 [B8] [8K] (2010-2012)
AUDI A5 [8T] (2010-2012)
AUDI A6 [4F] (2010-2012)
AUDI A6 Allroad [4FH] (2010-2012)
AUDI A7 [4G] (2010-2012)
AUDI A8 [4E] [4H] (2010-2012)
AUDI Q5 [8R] (2010-2012)
AUDI Q7 [4L] (2010-2012)

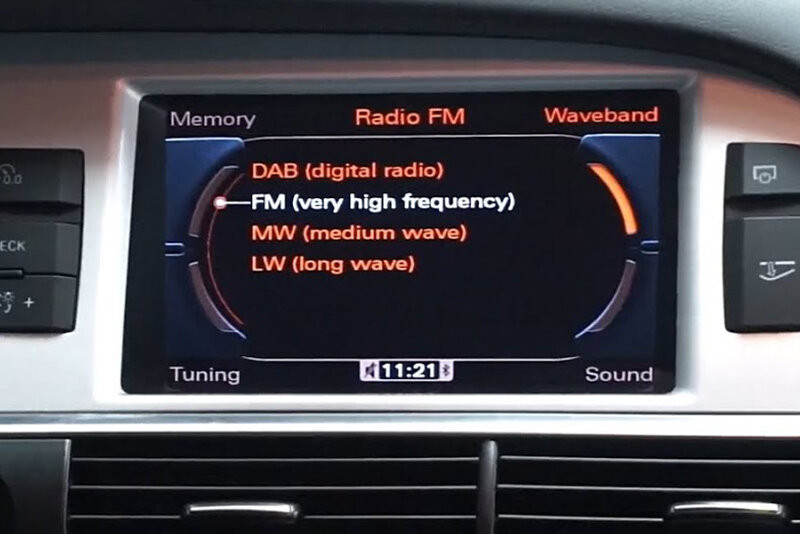

OEM navigation MMI3G with 6.5 "monitor and circular LVDS connector

The device is intended exclusively for professional installation by an authorized service center or a trained installation workshop!

Function:
Apple CarPlay
Android Auto
Smarthone screen mirroring
WiFi wireless smarthone connection
FPG moving parking camera guide lines
PDC Display of parking sensors
USB input supports both video and audio formats
AUX audio output
Audio / Video input
Input for rear parking camera
Entrance for front parking camera
Reverse gear information
Day / night lighting mode
DSP processor
