18 pin plug set Cross section: 0.75mm², Version: Assembled Harness

• 18 pin plug set

• Ideally suited for self-assembly
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.35mm² - 0.75mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to 000 979 009 E (0.5mm²) 000 979 164 E (0.75mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (18 pin plug set)

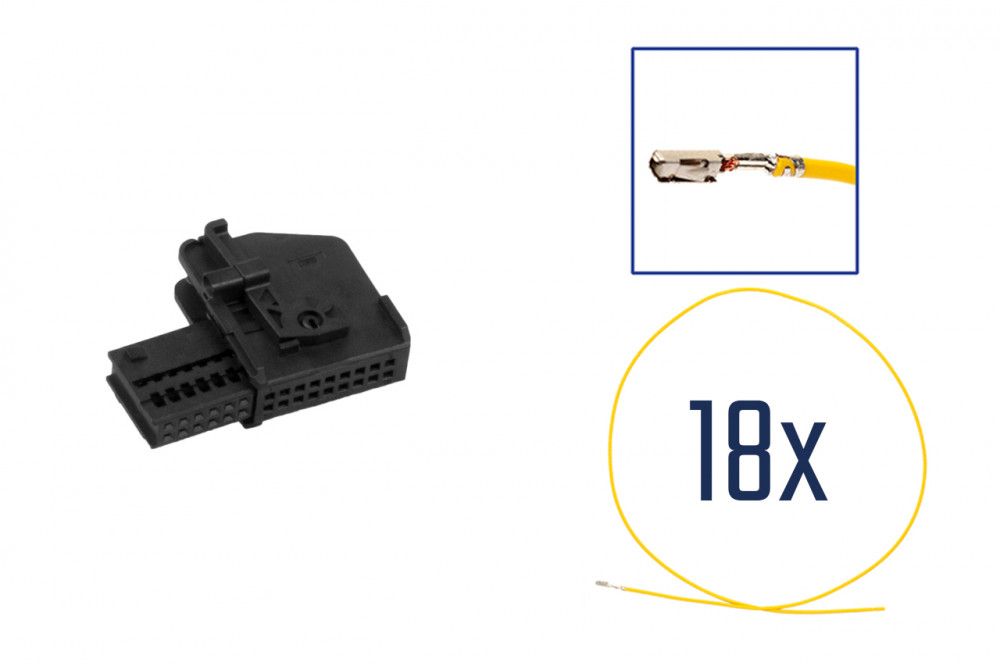

• Connector + contact material (18 pin plug set + 18x contacts)
• Assembled repair kit (18 pin plug set with fully crimped connecting cables) 0.5mm²
• Assembled repair kit (18 pin plug set with fully crimped connecting cables) 0.75mm²
