QuadLock Insert 24 pin Cross section: 0.35-0.75mm², Version: Connector + Terminal

• QuadLock employment suitable for Quadlock push-pull plug
• 24-pins
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.35mm² - 0.75mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to 000 979 012 E (0.5mm²) 000 979 165 E (0.75mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (QuadLock Insert 24 pin)

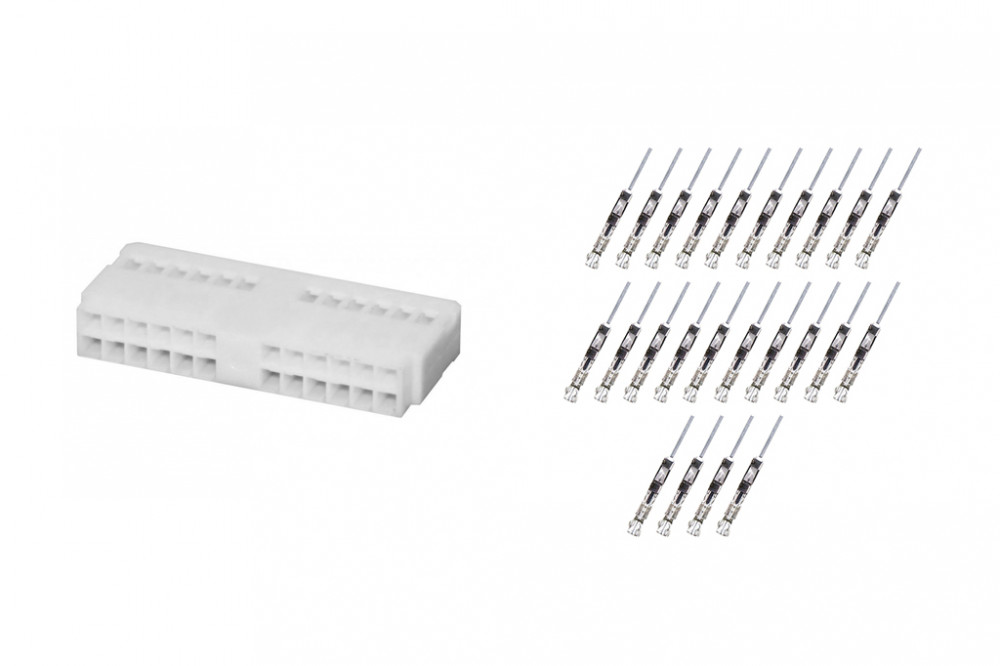

• Connector + contact material (QuadLock Insert 24 pin + 24x contacts)
• Assembled repair kit (QuadLock Insert 24 pin with fully crimped connecting cables) 0.5mm²
• Assembled repair kit (QuadLock Insert 24 pin with fully crimped connecting cables) 0.75mm²

Notes:

• Suitable QuadLock push-pull plug: Part No. of 35510
• Suitable contacts Part - No.38290
