Quadlock - Installation Kit
Code: 33375

Quadlock - Installation Kit

Availability: on request
Stock: on request
Manufacturer: Kufatec
Price without VAT: 16.39 €
Price: 19.83 €
Weight: 40 g


  • Specific QuadLock installation kit to connect vehicle cables as well as for performing repairs
  • There are 3 different options available:
    • Connector / plug
      • Only the pure connector is supplied here
    • Connector / plug + contact material
      • Here we deliver the connector and the required contact material
      • For automotive cables FLRY 0.50mm² - 1.00mm²
    • Fully assembled connector / plug
      • Cable length: 600mm
      • 0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
      • Assembled single cable similar to 000 979 020 E (0.5mm²) 000 979 132 E (1.0mm²)
      • Produced on fully automatic machines with crimp force monitoring (process monitoring)
      • Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
      • Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)


    Selectable options:

    • Connector only (5-pin plug housing 6N0 973 805)
    • Connector + contact material (5-pin plug housing 6N0 973 805 + 5x contacts + 5x seal and 3x blind seal)
    • Assembled repair kit (5-pin plug housing 6N0 973 805 with fully crimped connecting cables) 0.5mm²
    • Assembled repair kit (5-pin plug housing 6N0 973 805 with fully crimped connecting cables) 1.0mm²

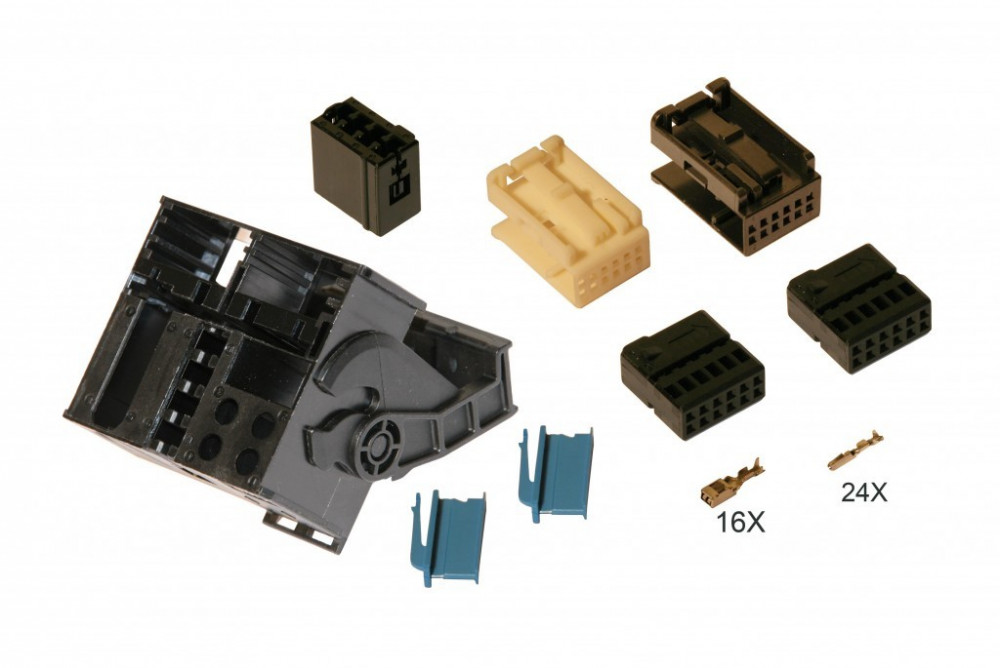

Scope of delivery:

  • QuadLock main connector
  • QuadLock element 8-pole
  • Element for CD-Changer + housing
  • Element for Telephone + housing
  • 2 x Locking device
  • 16 x Terminals
  • 24 x MQS Terminals
