Repair kit connector 16 pin 3D0 973 993 plug housing for VW Audi Seat Skoda Cross section: 0.5-1.0mm², Version: Connector + Terminal

• 16-pin plug housing for spare parts and repairs
• Connector OE number: 3D0 973 993
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.5mm² - 0.75mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to 000 979 133 E (0.5mm²) 000 979 154 E (1.0mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (16-pin plug housing 3D0 973 993)

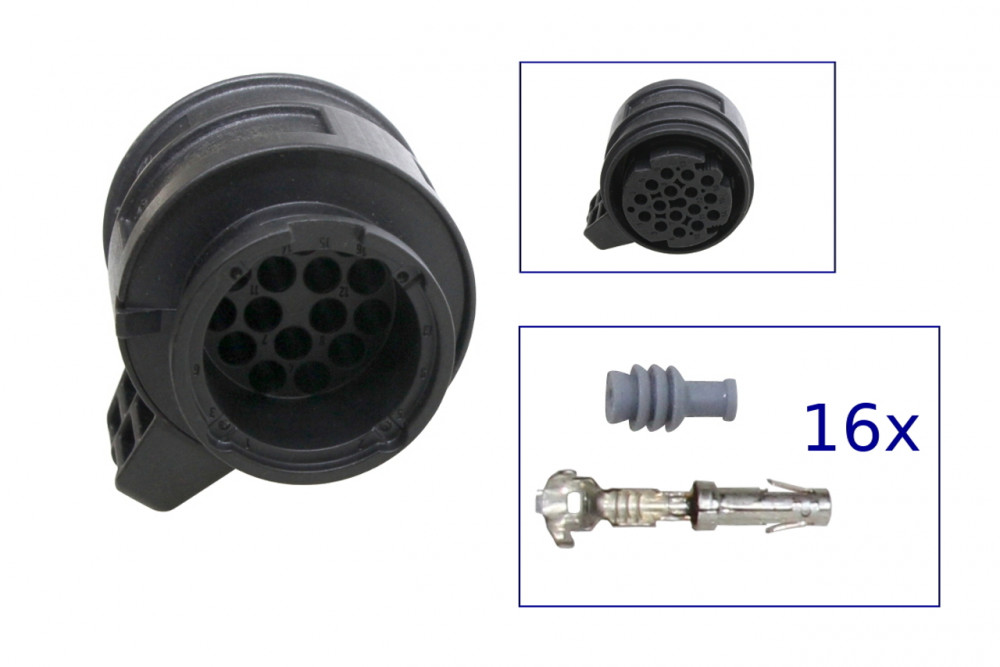

• Connector + contact material (16-pin plug housing 3D0 973 993 + 16x contacts + 16x seal and 2x blind seal)
• Assembled repair kit (16-pin plug housing 3D0 973 993 with fully crimped connecting cables) 0.5mm²

Note:

• To ensure proper function and tightness, make sure that the cable diameter and cross-section are correct
• The original spare part number / OE number is for comparison purposes only
