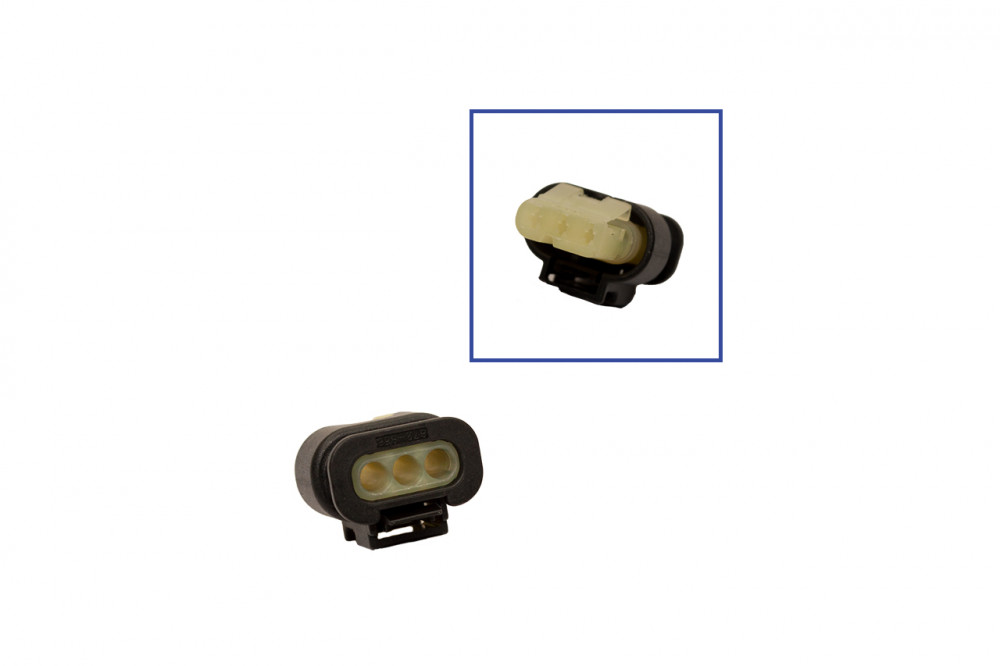

Repair kit connector 3 pin 1T0 973 203, 4F0 973 703 A MLK coupling for VW Audi Seat Skoda Cross section: All, Version: Only Connector

• 3-pin MLK coupling for spare parts and repairs
• Connector OE number: 1T0 973 203, 4F0 973 703 A
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.35mm² - 0.5mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to  000 979 034 E (0.5mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A)
• Connector + contact material (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A + 3x contacts + 3x seal and 2x blind seal)
• Assembled repair kit (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A with fully crimped connecting cables)

Note:

• To ensure proper function and tightness, make sure that the cable diameter and cross-section are correct
• The original spare part number / OE number is for comparison purposes only
