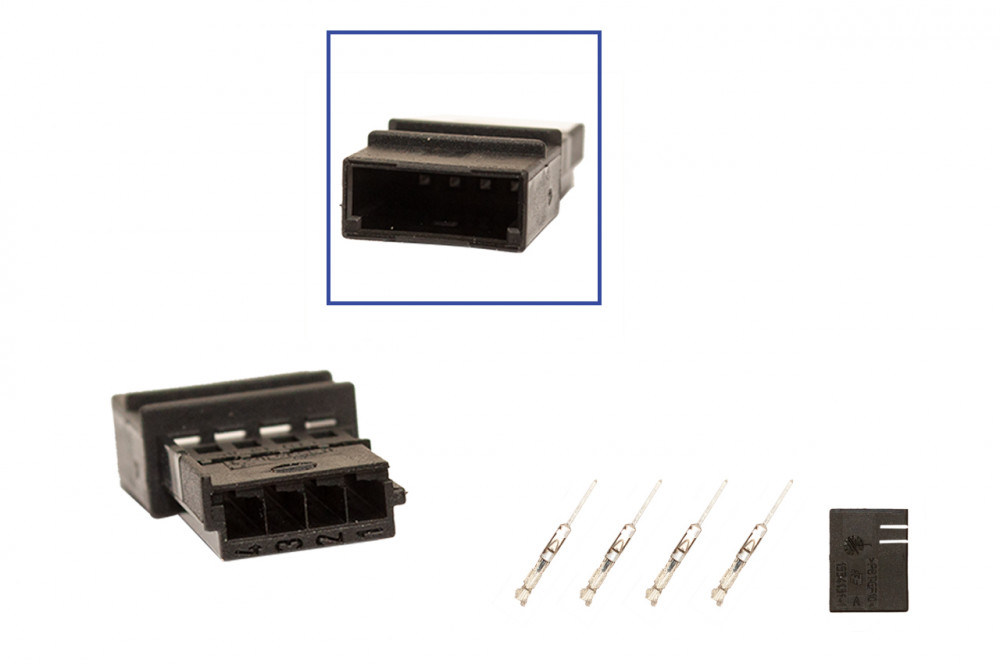

Repair kit connector 4 pin 8E0 972 643 socket housing for VW Audi Seat Skoda Cross section: 0.35-0.75mm², Version: Connector + Terminal

• 4-pin socket housing for spare parts and repairs
• Connector OE number: 8E0972643
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.35mm² - 0.75mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to 000 979 165 E (0.75mm²) 000 979 012 E (0.5mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (4-pin socket housing 8E0 972 643)
• Connector + contact material (4-pin socket housing 8E0 972 643 + 4x contacts and 1x locking)
• Assembled repair kit (6-pin socket housing 8E0 972 643 with fully crimped connecting cables)

Note:

• To ensure proper function and tightness, make sure that the cable diameter and cross-section are correct
• The original spare part number / OE number is for comparison purposes only
