Repair kit connector 8 pin for ISO power connector housing Cross section: 0.5-1.0mm², Version: Connector + Terminal

• 8-pin ISO power connector housing for spare parts and repairs
• There are 3 different options available:
• Connector / plug
• Only the pure connector is supplied here
• Connector / plug + contact material
• Here we deliver the connector and the required contact material
• For automotive cables FLRY 0.5mm² - 1.0mm² / 1.5mm² - 2.5mm²
• Fully assembled connector / plug
• Cable length: 600mm
• 0.5mm² / 1.0mm² / 2.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
• Assembled single cable similar to 000 979 021 E (0.5mm²) 000 979 133 E (1.0mm²) 000 979 225 E (2.5mm²)

• Produced on fully automatic machines with crimp force monitoring (process monitoring)
• Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
• Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

• Connector only (ISO power plug housing)

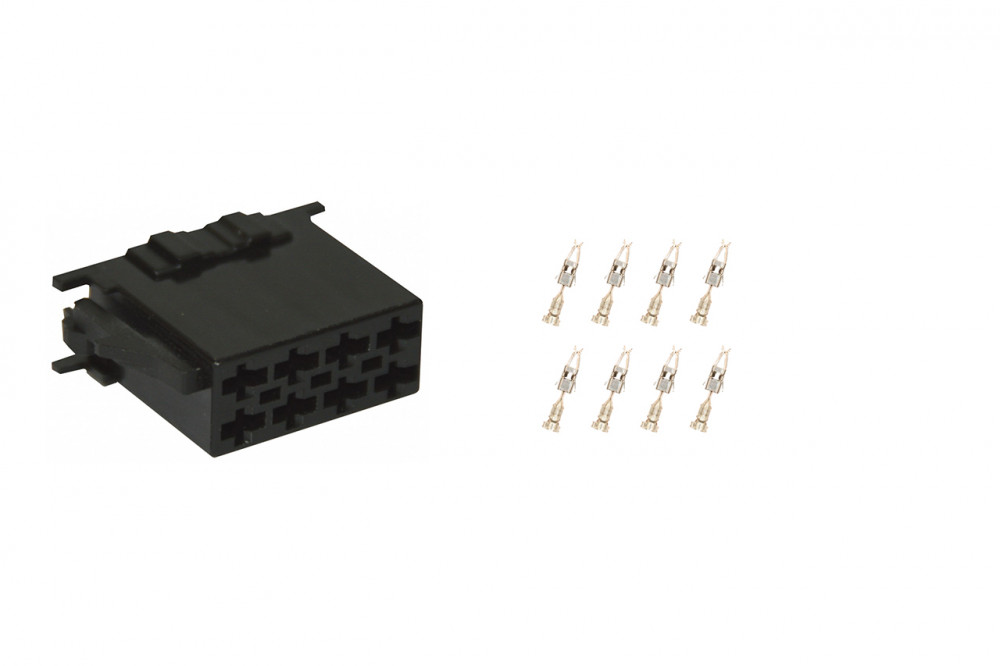

• Connector + contact material (ISO power plug housing + 8x contacts) 0.5mm² - 1.0mm²
• Connector + contact material (ISO power plug housing + 8x contacts) 1.5mm² - 2.5mm²
• Assembled repair kit (ISO power plug housing with fully crimped connecting cables) 0.5mm²
• Assembled repair kit (ISO power plug housing with fully crimped connecting cables) 1.0mm²
• Assembled repair kit (ISO power  plug housing with fully crimped connecting cables) 2.5mm²

Notes:

• Suitable contacts: Part No. 35485
