» Repair kit connector 8 pin for MINI ISO connector housing yellow Cross section: All, Version: Only Connector

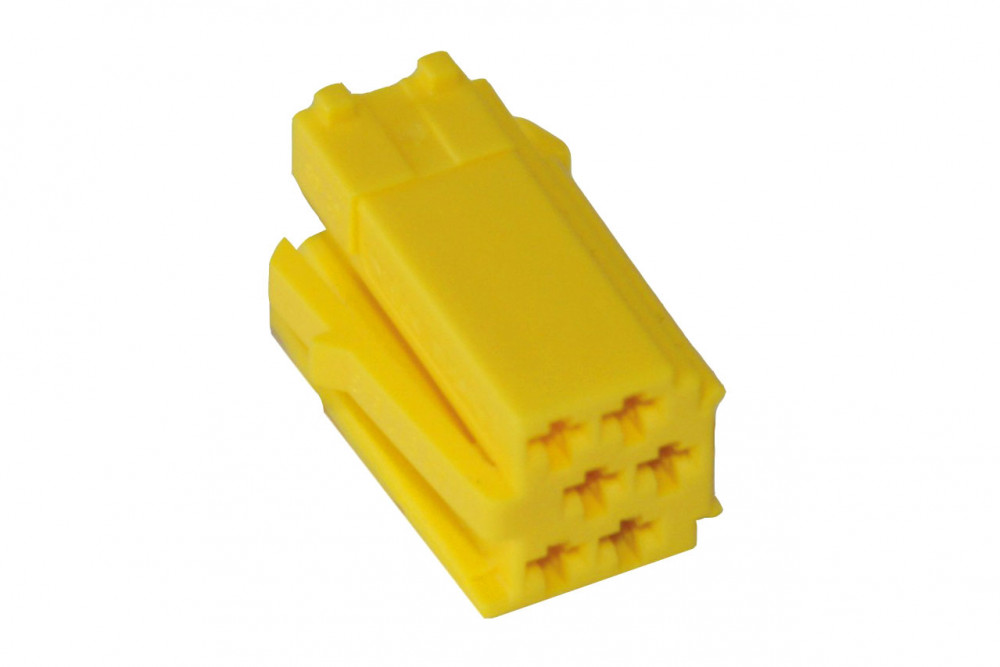

6-pin MINI ISO connector housing yellow for spare parts and repairs
There are 3 different options available:
Connector / plug
Only the pure connector is supplied here
Connector / plug + contact material
Here we deliver the connector and the required contact material
For automotive cables FLRY 0.5mm² - 1.0mm²
Fully assembled connector / plug
Cable length: 600mm
0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
Assembled single cable similar to 000 979 019 E (0.5mm²) 000 979 131 E (1.0mm²)
Produced on fully automatic machines with crimp force monitoring (process monitoring)
Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)
Selectable options:
Connector only (MINI ISO connector housing yellow)
Connector + contact material (MINI ISO connector housing yellow + 6x contacts)
Assembled repair kit (MINI ISO connector housing yellow with fully crimped connecting cables) 0.5mm²
Assembled repair kit (MINI ISO connector housing yellow with fully crimped connecting cables) 1.0mm²
