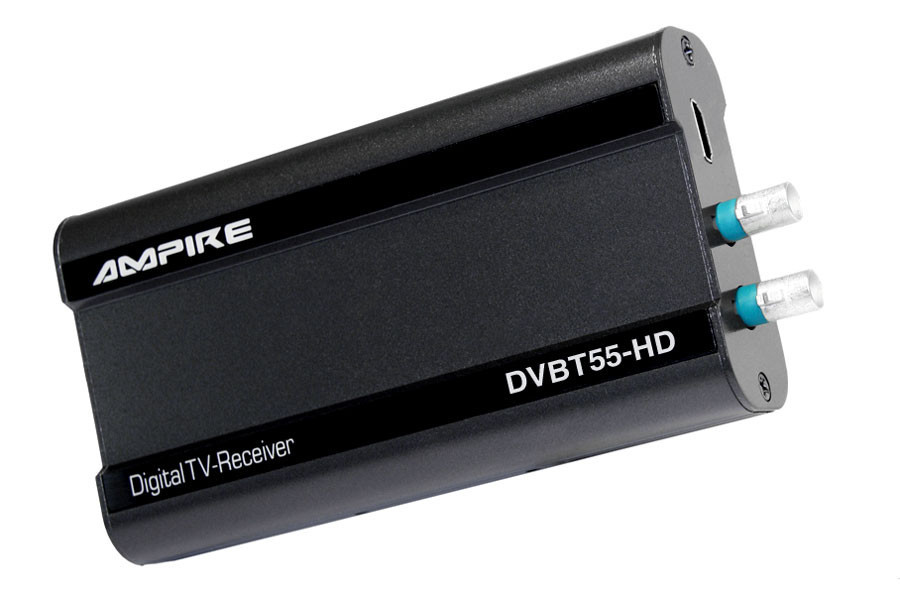

AMPIRE DVB-T HD-Receiver with USB-Recorder (MPEG4)

• Mobile digital HD DVB-T in High class
• In addition tot he execellent mobile DVB-T reception, the DVBT55-HD now offers several new functions and features.
• Not only MPEG-2 DVB-T channels are available, you can also receive the new MPEG-4 standard.
• Manual tuning is omitted due to integrated automatic frequency switching - AFS
• To connect the DVB-T to your vehicle you can use our Kufatec IMA Multimedia Adapters
• When using the Multimedia Adapter Plus Version you also need the control wire (item 38775)
• The DVBT55-HD from Ampire has the same reception characteristics as the bigger DVBT400 receiver (Verdict: Absolutely top class in the Car Audio)

Features:

• Automotive DVB-T Diversity receiver with Dual Receivers
• TV standard:
  • DVB-T MPEG2
  • DVB-T MPEG2 Conax encrypted (with optinal card reader CONAX55)
  • DVB-T MPEG4
  • DVB-T MPEG4 Conax encrypted (with optinal card reader CONAX55)
  • Real-Time TV recording (USB)
  • AFS automatic frequence switching at bad reception
  • MP3 music and MPEG4 / DVIX video playback via the USB port
  • Only 3.5 Watt power consumption in operation and no power consumption by turned off
  • Multilingual design for easy installation in the vehicle
  • Complies with CE & RoHS standard, E-Registration and DVB-T / MPEG4 licensed

Connections:

• AV Output (RCA jack)
• USB port for control of FAT32 formatted hard disks up to 8 0GB and USB Sticks up to 8 GB.
• HDMI Output for high-resolution image reproduction
• 2x FAKRA connector antenna jacks with 5 volt phantom power for active antennas
• Pay-TV jack for optional Conax card reader

Technical specifications:

• E9 approval - 10R-09 6314
• Video / Audio Decoder: MPEG 2 + MPEG-4
• Frequency: 170 ~ 230 MHz (VHF) + 470 ~ 862 MHz (UHF)
• Antenna Input Impedance: 75 Ohm
• Channel bandwidth: 6/7/8 MHz
• Supports active and passive DVBT-antennas
• From USB supported audio format: * .mp3; * .wav
• From USB supported video formats: * .mpg; * .dat; * .vob; * .avi with MPEG4 ASP
• From USB supported Photo format: * .jpg; * .bmp, * .gif
• From USB supported TV Recording format: * .mpg
• From USB supported Radio Recording format: * .mp3
• Dimensions: 80 x 28.5 x 137.5 mm (W x H x L)
• Operating voltage: 12 volts DC
• Power consumption: max. 3.5 Watts (0.24A at 13.8 volts)
• TV System: Auto / PAL / NTSC
• Screen Format: 4: 3/16: 9
• OSD Language: English / German / French / Italian / Spanish / Dutch / Portuguese / Chinese

Included Accessories:

• Infrared remote control and IR receiver
• Instruction Manual in German and English

Note:

• The reception of the DVB-T2 standards is not possible with the DVBT55-HD
• After installation, check the software version and if necessary perform a software update
