Complete set to retrofit an original rear view camera for VW Arteon 3H
Suitable for vehicles with:
Navigation system MIB2 (PR-No.: 7UF, 7UG)
Optionsinfotainment MIB3 (PR-No.: 8AR)
Composition Media (PR-No.: I8F) in conjunction with PR-No.: 9WT or 9S8 or QV3
Integrated camera into the vw emblem
Showing the rear area on the screen of the navigation
Automatic display switch by rear gear
Much easier orientation due to the guiding lines and fields which are integrated into the video picture and change depending on the steering wheel angle
Two modes are available:
parkingmode 1 (Transverse parking): Useful for parking into a slot which is transverse to the driving direction on for reverse driving into a longer entry
parkingmode 2 (Longitudinal parking): Useful for parking into a slot along the driving direction on a curb
Scope of delivery:

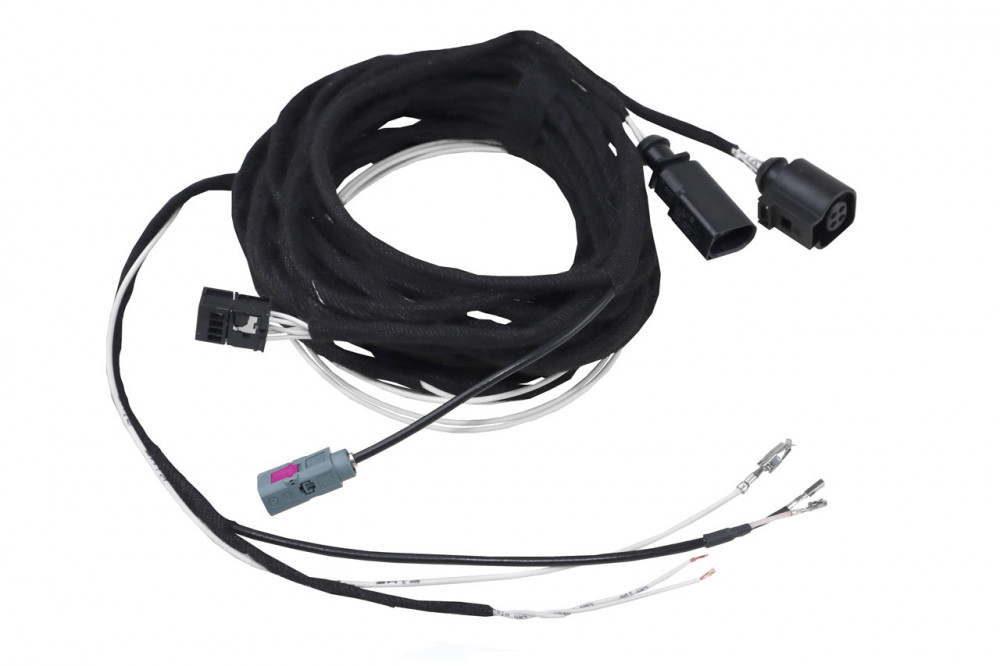

Wiring

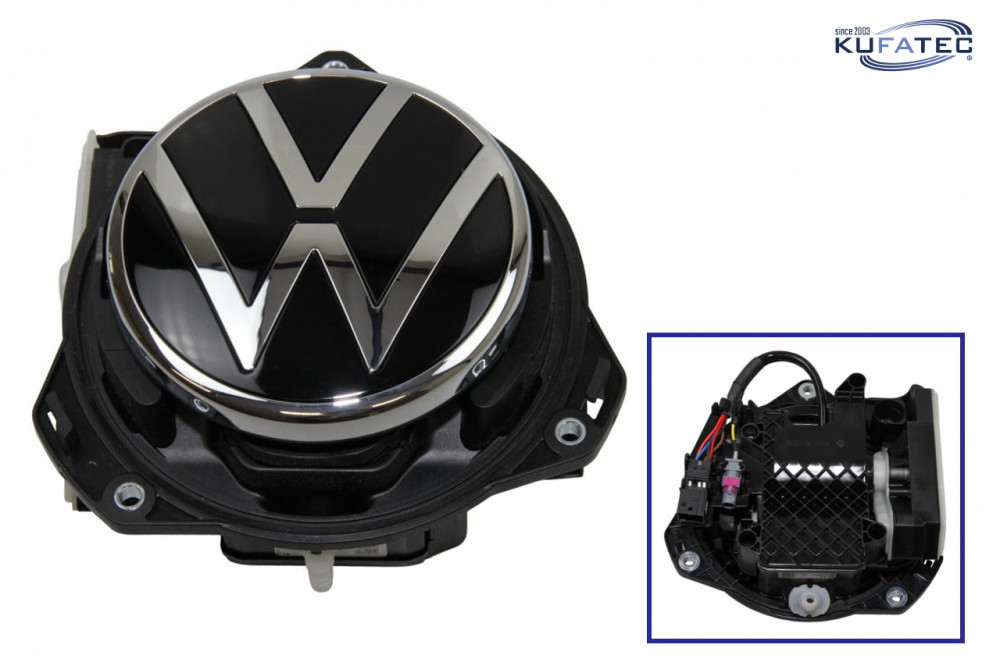

VW Emblem with integrated camera

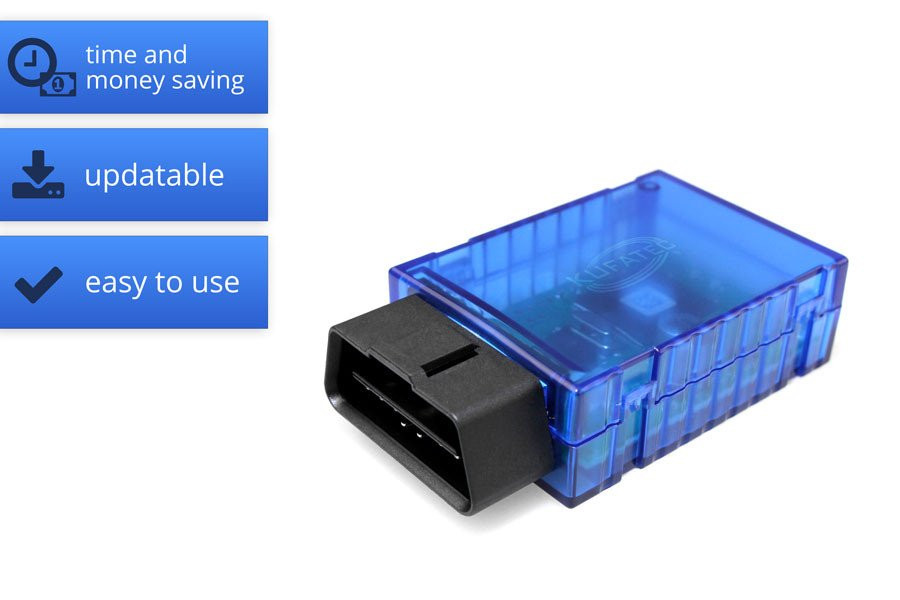

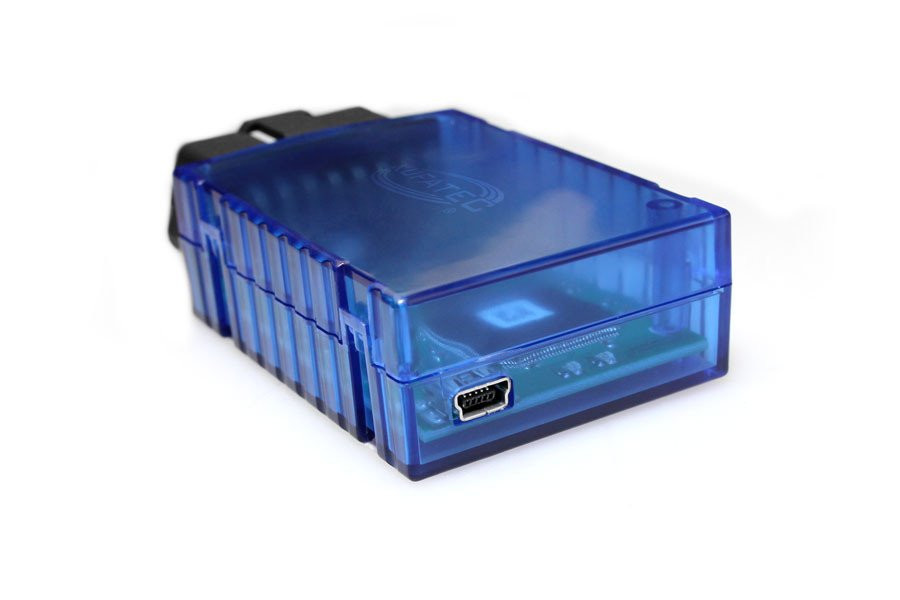

coding dongle
Note:
The included Emblen is the new version (flat VW sign)
Additional notices:
If you are unable to complete the commissioning yourself, or if it is an SFD2 vehicle (More information can be found here) for which commissioning is mandatory, we offer an optional one-time remote commissioning service, which can be added via the shopping cart button. This is a one-time service; if coding is lost, for example, due to a software update or other interventions, the commissioning fees will be due again. If no remote diagnostic interface or coding dongle is listed in the scope of delivery of the item, any KUFATEC dongle or our KURDIS KUFATEC remote diagnostic interface article number 70000 is required for commissioning
