OE number: 2 21 886 2VT
Weight: 0.5 kg
Manufacturer: G-park

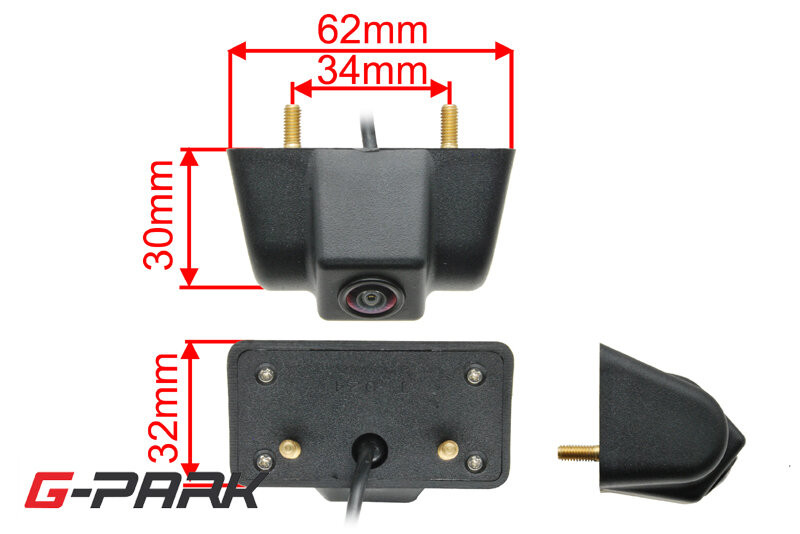

CCD parking camera for installation in the space for lighting the rear license plate.
Suitable for cars:
JEEP Wrangler III. [JK] (4/2007->)
Universal use
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- display of trajectories (guide lines) on the monitor (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal and control cable length 7m terminated with a CINCH connector
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
