2 21 951 CCD Parking Camera In the handle NISSAN Tiida (08->)

CCD Parking Camera In the handle NISSAN Tiida (08->)

OE number: 2 21 951

Weight: 0.5 kg

Manufacturer: G-park

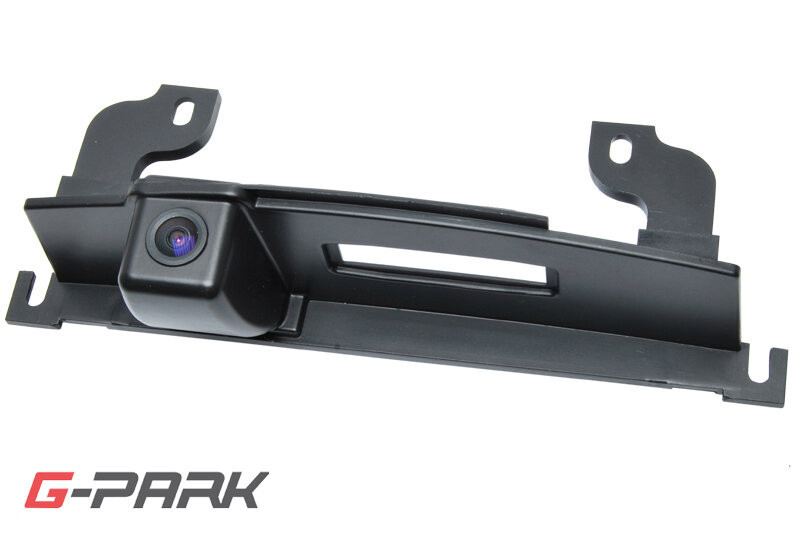

Parking camera installed in the opening handle of the 5th door.

Suitable for cars:
NISSAN Tiida [SC11] (2008-9/2013)

Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W

Function
Guiding trajectories (lines)
NTSC TV standard
CCD sensor
