OE number: 2 21 953 VT
Weight: 0.5 kg
Manufacturer: G-park

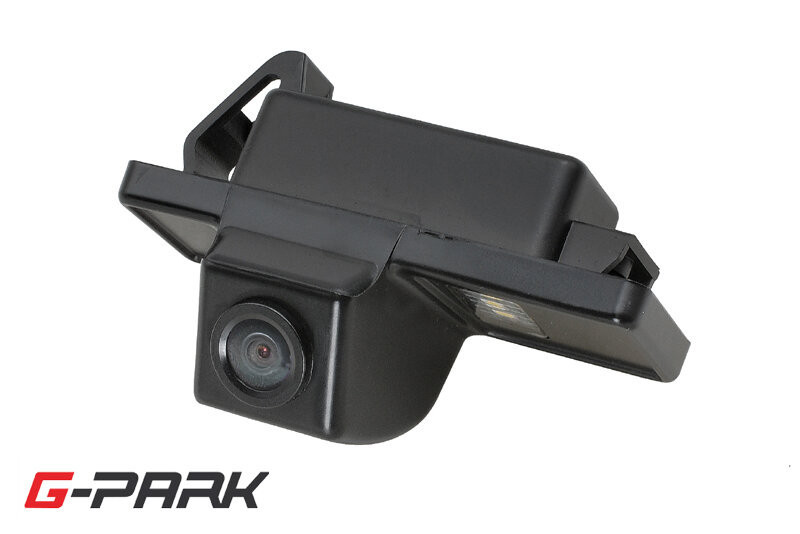

CCD parking camera for installation in place of the rear license plate light. The camera includes an LED light replacing the original lighting.
Suitable for cars:
NISSAN Note [E11] (3/2006-5/2013)
NISSAN Qashqai I. [J10] (12/2006-2013)
NISSAN Qashqai II. [J11] (2/2014->)
NISSAN X-Trail [T31] (6/2007-12/2013)
NISSAN Pathfinder [R51] (1/2005->)
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

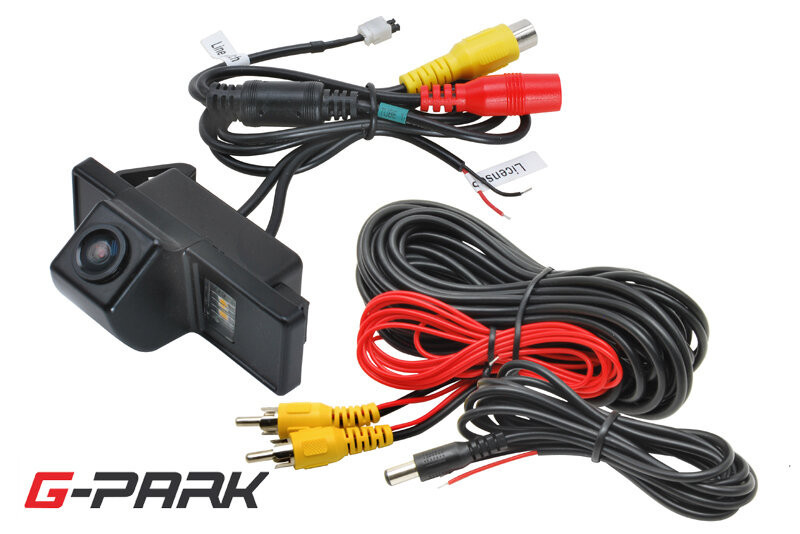

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
LED lighting RZ
