OE number: 2 21 973 VT
Weight: 0.5 kg
Manufacturer: G-park

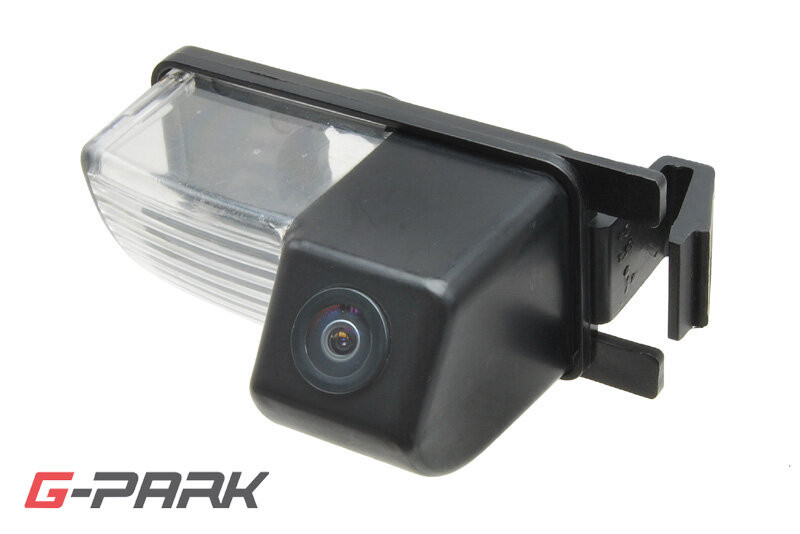

CCD parking camera for installation in place of the rear license plate light. The camera includes a place to place a socket with a bulb from the original license plate light.
Suitable for cars:
NISSAN 350Z [Z33] (9/2002->)
NISSAN 370Z (2009-2014)
NISSAN Versa (2009-2015)
NISSAN Tiida (2009-2010)
NISSAN Sentra (2009-2014)
NISSAN Cube (2009-2014)
NISSAN GT-R (2009-2015)
NISSAN Leaf (2011-2014)
NISSAN Navara
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C

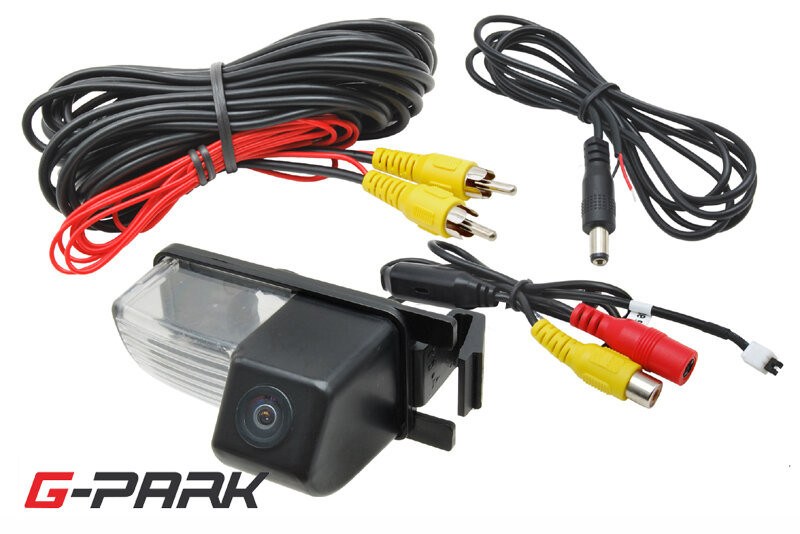

- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
RZ lighting with an original bulb
Adjustable guide lines (trajectories)
