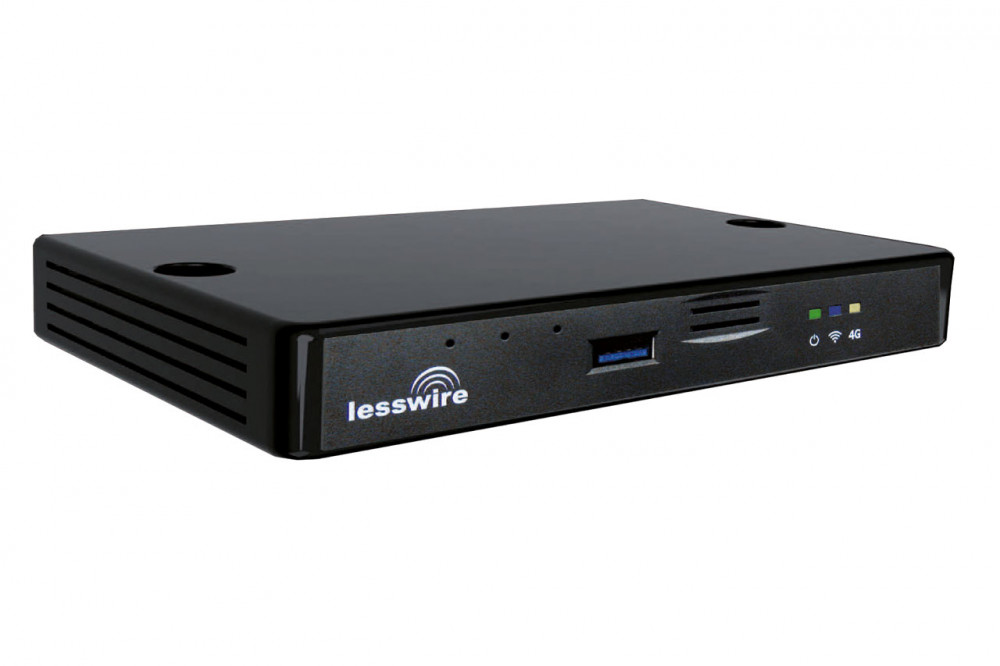

LESSWIRE LTE Wi-Fi router Wi4U pro

Areas with poor reception and high speed make it difficult to have reliable access to the Internet in the vehicle. The Wi4U pro is an LTS to WLAN router for any type of vehicle. It enables smartphones, tablets, notebooks and all other WLAN clients secure and stable access to the Internet, even at high speeds.

• The router is immediately operational and requires only a simple configuration
• Operating as a public hotspot, the Wi4U pro enables the provision of secure public Internet access
• The Wi-Fi vehicle router Wi4U pro provides broadband Internet connectivity to any type of vehicle.
• It also offers new wireless and multimedia services, such as:
• Internet access up to 100 Mbit/s
• Multimedia server for audio / video
• Position and Fleet Management
• Integrated configuration management (web server)
• Remote Management
• Send / receive SMS
• Public hotspot interface
• Firmware update over-the-air
• The Wi4U serves as a universal communication platform to keep your vehicle's features simple and fast with state-of-the-art wireless connectivity.

All benefits at a glance:

• Standard wireless gateway
• The Wi4U pro provides standardized interfaces and protocols to a wide variety of control devices and Connect and connect applications wirelessly Flexibility and expandability The Wi4U pro can be used for a wide range of applications - from simple telematics devices to high-speed, Internet and multimedia systems. The integrated plug-in manager allows the easy extension of functions by additional software modules. These can simply be recharged by the manufacturer as needed, similar to auto-multimedia systems or smartphones.

Wireless interfaces:

• GSM / UMTS / LTE: 2G / 3G / 5G WAN connections up to 100 Mbps
• Wireless LAN: Local WLAN according to IEEE 802.11b / g / n up to 300 Mbit/s
• GPS / GLONASS: satellite positioning

Wired interfaces:

• Ethernet / USB: broadband for other devices
• USB media storage
• Optional: CAN / UART / GPIO interfaces to the vehicle

Technical specifications:

• Processor architecture: Freescale i.MX6 Solo Cortex™ -A9
• Processor frequency: 1 GHz / 3000 DMIPS
• Operating system: Linux
• Internal memory: 128 mb (DDR3), 256 mb (Nand Flash)
• External memory: USB 2.0 via HSB connection
• Ethernet: 100 Mbit via HSB connection
• Double SIM: 2 x SIM card reader
• Dimensions: 147 x 104 (119 incl. Connectors) x 24 mm
• Weight: 200 g
• mobile network:
  • Standards: 4G - LTE, 3G - UMTS: HSPA+ / EV-DO, 2G - GSM: EDGE / GPRS / GSM
  • Frequency: LTE (cat3, 100/50 Mbps): 800/900/1800/2100/2600 (EMEA / APAC), HSPA+: 850/900/2100,
  • GSM / GPRS / EDGE: 850/900/1800/1900
  • Data rate: up to 100 Mbps
  • WIRELESS INTERNET ACCESS
  • Standards: IEEE 802.11 b / g / n
  • Security / Encryption: WEP, WPA (WKIP, AES), WPA2 (CCMP, AES)
  • Data rate: up to 300 Mbps
  • Participants: up to 80 participants in parallel
• antenna:
• LTE / UMTS: 2x Fakra D burgundy for LTE MIMO
• GPS: Fakra C blue
• WLAN: WLAN internally care

• Voltage: 12 V DC / 24 V DC from the vehicle electrical system

• Connection: 32 PIN NanoMQS

• temperature:
• Operation: -40 ° C to +80 ° C
• Storage: -40 ° C to + 105 ° C

Scope of delivery:

• Lesswire LTE Router
• Manual
• Mounting material
• Cable set

Note:

• Please note that an optional antenna is required to operate the router
• Please note that an optionally available GPS antenna is required for the operation of the router
• (when operating location services).
• The Wi4U should be operated with a MIMO LTE antenna for optimal reception.
• Sim card required for operation of the router
